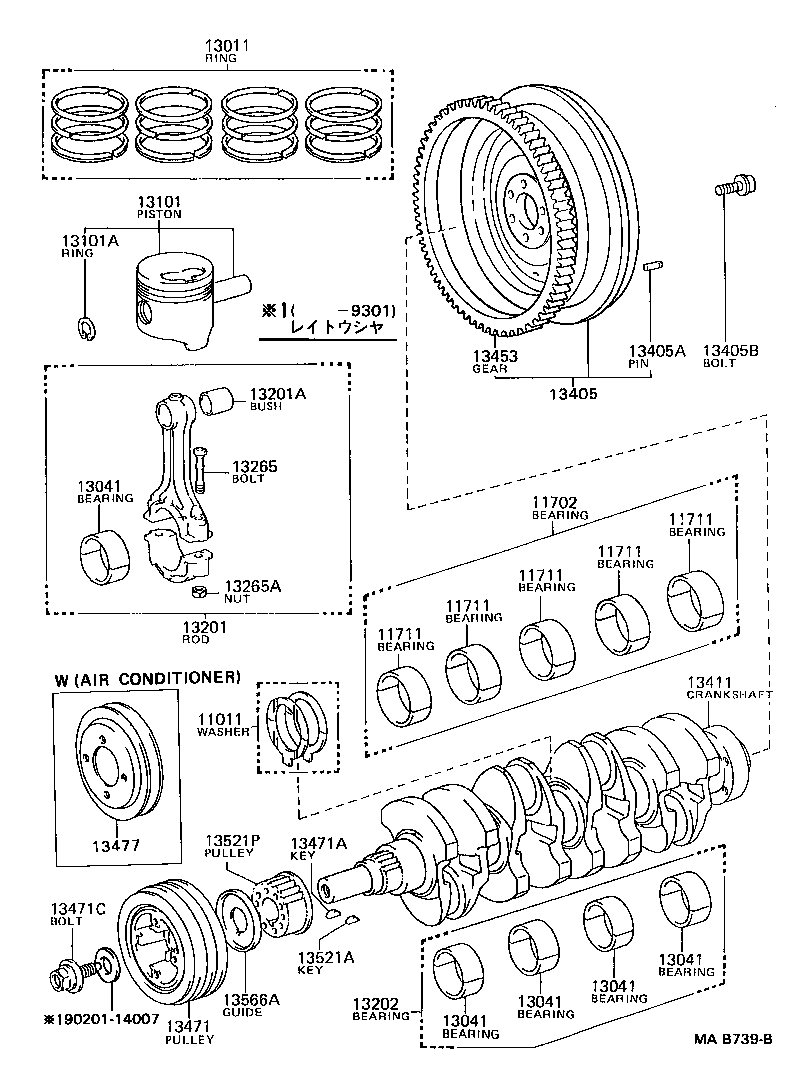

Toyota Toyoace/dyna LY61 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11012-54020	2L,3L..LY5#,61 O/S 0.125	08/1988 - 05/1995	1
11011-54020	2L,3L..LY5#,61 STD	08/1988 - 05/1995	1
11013-54020	2L,3L..LY5#,61 O/S 0.250	08/1988 - 05/1995	1
13011 - RING SET, PISTON
13013-54120	3L..LY51,61 O/S 0.50	08/1988 - 05/1995	1
13011-54120	3L..LY51,61 STD	08/1988 - 05/1995	1
13041 - BEARING, CONNECTING ROD
13041-5404101	3L..LY51,61 MARK 1	08/1988 - 05/1995	4
13041-5404102	3L..LY51,61 MARK 2	08/1988 - 05/1995	4
13041-5404103	3L..LY51,61 MARK 3	08/1988 - 05/1995	4
13041 - BEARING, CONNECTING ROD
13041-5404101	3L..LY51,61 MARK 1	08/1988 - 05/1995	4
13041-5404102	3L..LY51,61 MARK 2	08/1988 - 05/1995	4
13041-5404103	3L..LY51,61 MARK 3	08/1988 - 05/1995	4
13041 - BEARING, CONNECTING ROD
13041-5404101	3L..LY51,61 MARK 1	08/1988 - 05/1995	4
13041-5404102	3L..LY51,61 MARK 2	08/1988 - 05/1995	4
13041-5404103	3L..LY51,61 MARK 3	08/1988 - 05/1995	4
13041 - BEARING, CONNECTING ROD
13041-5404101	3L..LY51,61 MARK 1	08/1988 - 05/1995	4
13041-5404102	3L..LY51,61 MARK 2	08/1988 - 05/1995	4
13041-5404103	3L..LY51,61 MARK 3	08/1988 - 05/1995	4
13041 - BEARING, CONNECTING ROD
13041-5404101	3L..LY51,61 MARK 1	08/1988 - 05/1995	4
13041-5404102	3L..LY51,61 MARK 2	08/1988 - 05/1995	4
13041-5404103	3L..LY51,61 MARK 3	08/1988 - 05/1995	4
13101 - PISTON SUB-ASSY, W/PIN
13101-5410001	3L..LY51,61 STD,MARK 1	08/1988 - 02/1991	4
13101-5410003	3L..LY51,61 STD,MARK 3	08/1988 - 02/1991	4
13101-5410002	3L..LY51,61 STD,MARK 2	08/1988 - 02/1991	4
13101-5410101	3L..LY51,61 STD,MARK 1	02/1991 - 05/1995	4
13103-54100	3L..LY51,61 O/S 0.50	08/1988 - 02/1991	4
13101-5410102	3L..LY51,61 STD,MARK 2	02/1991 - 05/1995	4
13101-5410103	3L..LY51,61 STD,MARK 3	02/1991 - 05/1995	4
13103-54101	3L..LY51,61 O/S 0.50	02/1991 - 05/1995	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31001	3L..LY51,61	08/1988 - 05/1995	8
13201 - ROD SUB-ASSY, CONNECTING
13201-59105	3L..LY51,61	08/1988 - 05/1995	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73115	3L..LY51,61	08/1988 - 05/1995	4
13202 - BEARING SET, CONNECTING ROD
13204-54041	3L..LY51,61 U/S 0.25	08/1988 - 05/1995	1
13205-54041	3L..LY51,61 U/S 0.50	08/1988 - 05/1995	1
13265 - BOLT, CONNECTING ROD
13265-54020	2L,3L..LY5#,61	06/1989 - 05/1995	8
13265-54020	3L..LY51,61	08/1988 - 06/1989	8
13405 - FLYWHEEL SUB-ASSY
13405-54060	2L,3L..LY5#,61..ST,WT1	08/1988 - 05/1995	1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054	2L,3L..LY5#,6# 長さ=23,外径=8	08/1987 - 05/1995	3
13411 - CRANKSHAFT
13401-54060	3L..LY51,61	08/1988 - 05/1995	1
13453 - GEAR, FLYWHEEL RING
13453-54010	2L,3L..LY5#,6#	08/1987 - 05/1995	1
13471 - PULLEY, CRANKSHAFT
13408-54070	2L,3L..LY5#,61	08/1988 - 05/1995	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20622	2L,3L..LY5#,6#	08/1987 - 05/1992	1
95161-30622	2L,3L..LY5#,61	05/1992 - 05/1995	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14031	2L,3L..LY5#,61	10/1989 - 10/1993	1
90901-19028	2L,3L..LY5#,61	10/1993 - 05/1995	1
90119-14005	2L,3L..LY5#,6#	08/1987 - 10/1989	1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-35030	2L,3L..LY5#,61	08/1988 - 05/1995	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30622	2L,3L..LY5#,61	05/1992 - 05/1995	1
95161-20622	2L,3L..LY5#,6#	08/1987 - 05/1992	1
13521P - PULLEY, CRANKSHAFT TIMING
13521-54030	2L,3L..LY5#,61	08/1988 - 05/1995	1
13566A - GUIDE, TIMING BELT
13566-54040	2L,3L..LY5#,61	08/1988 - 05/1995	1
Common parts
90201-14007

LY61-MDD (1988)

(8808- )2L,3L
