LY60-MDRT3 (1985)
Toyota Toyoace/Dyna

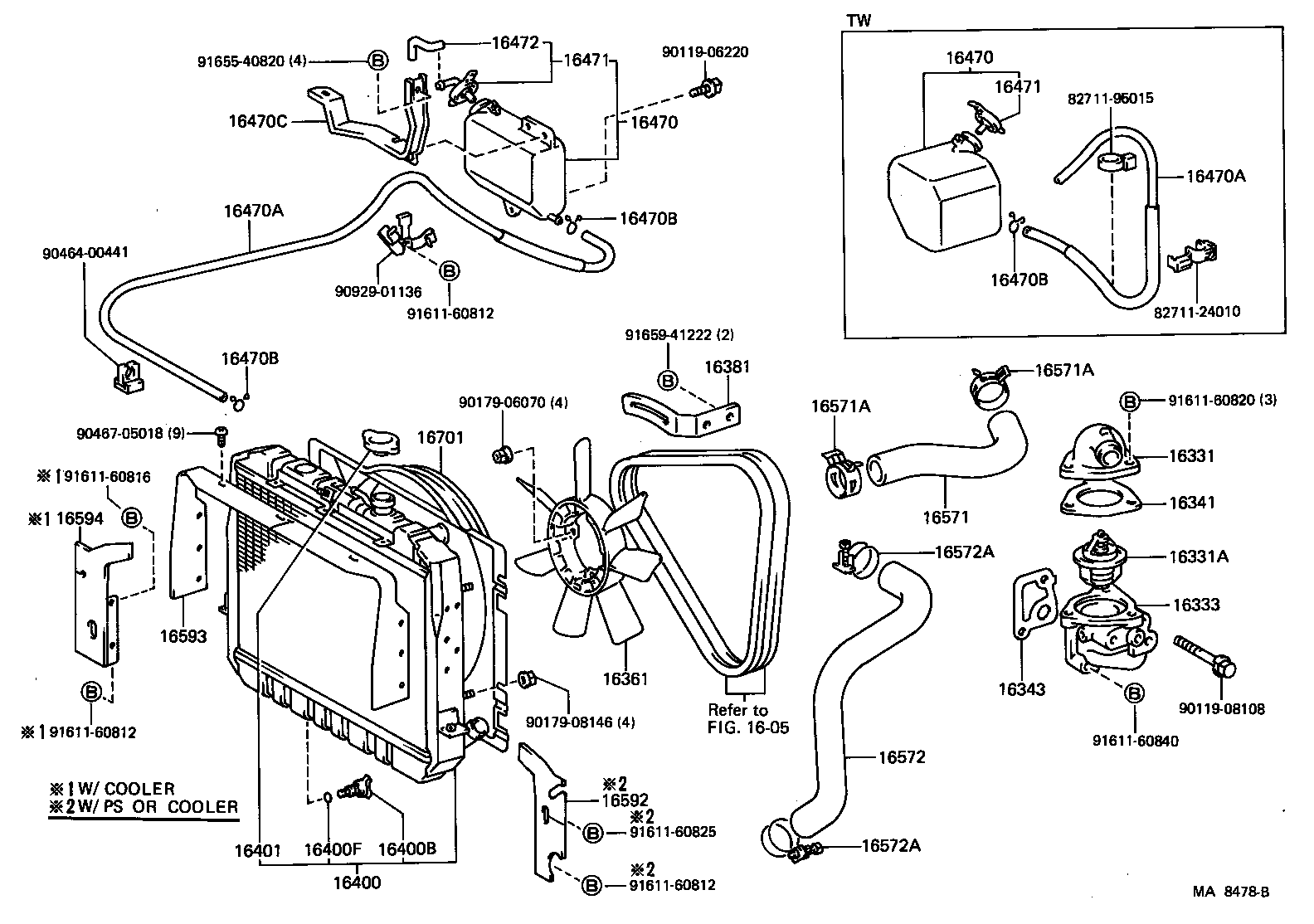

(8508- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L..LY50,60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
2L..LY50,60 *WAX 88−100,*WAX88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
2L..LY50,60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
2L..LY50,60 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LY50,60 |
1 | ||
| 16361 - FAN | ||||
| 16361-54020 |
2L..LY50,60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
2L..LY50,60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54500 |
2L..LY50,60 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-58090 |
2L..LY50,60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2L..LY50,60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L..LY50,60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54140 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470-54141 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54140 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470-54141 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12061 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12061 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LY50,60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LY50,60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LY50,60 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-54080 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16405-54150 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16405-54150 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L..LY50,60..T1,T2,T3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54250 |
2L..LY50,60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LY50,60 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LY50,60 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54240 |
2L..LY50,60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LY50,60 ENGINE SIDE |
1 | ||
| 96111-10460 |
2L..LY50,60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LY50,60 ENGINE SIDE |
1 | ||
| 96111-10460 |
2L..LY50,60 RADIATOR SIDE |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54020 |
2L..LY50,60 W/COOLER 0R POWER STEERING |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
2L..LY50,60 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54040 |
2L..LY50,60 W/COOLER |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54120 |
2L..LY50,60 |
1 | ||
| 16701-54131 |
2L..LY50,60 COLD SPEC |
1 | ||
| 16701-54130 |
2L..LY50,60 COLD SPEC |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90119-06220 | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90464-00441 | ||||
| 90467-05018 | ||||
| 90929-01136 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 91659-41222 | ||||
| Linked diagrams | ||||
| 1605 | ||||

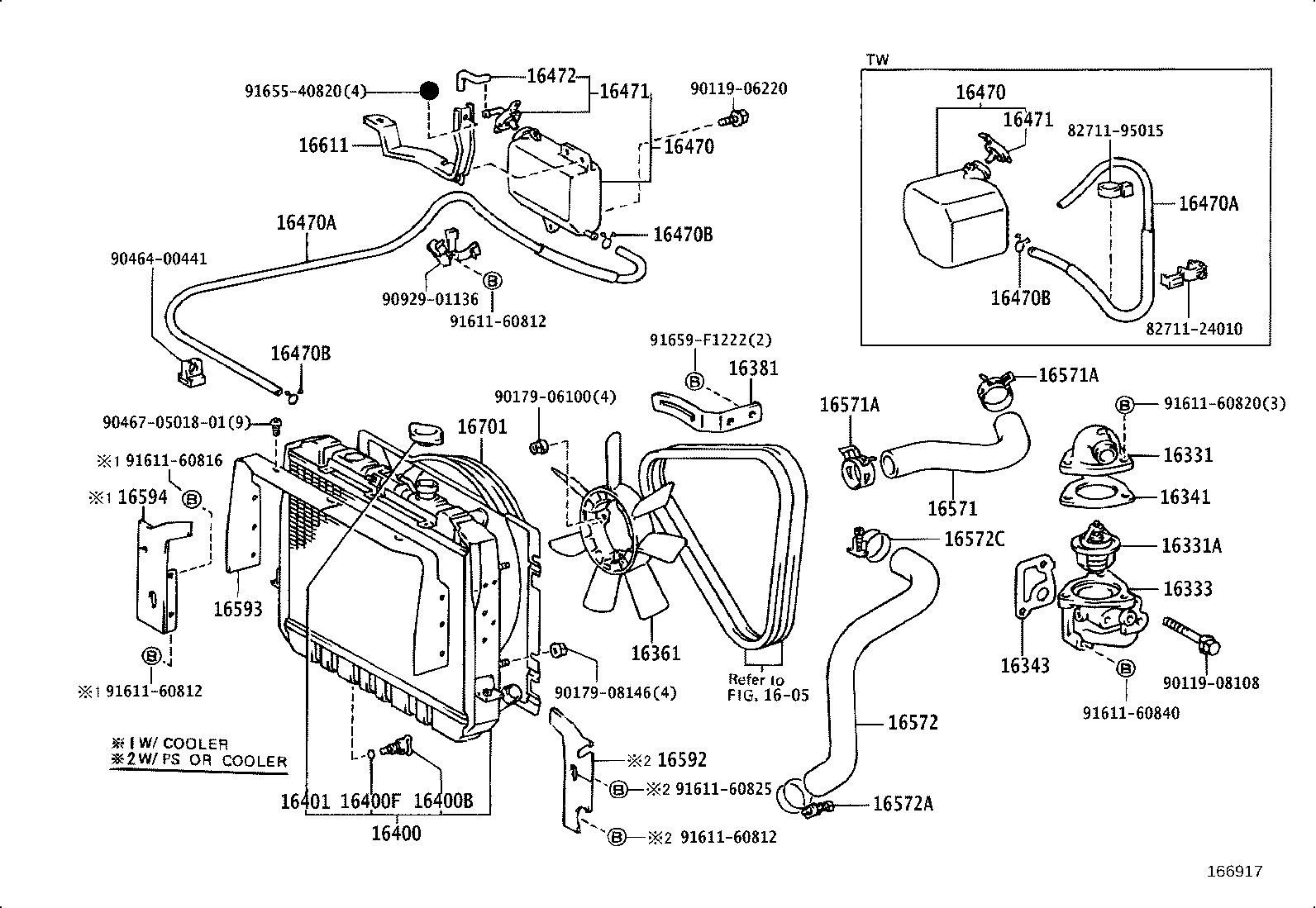

(8708-8808)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90119-06220 | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
| 90179-08146 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01136 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 91659-F1222 | ||||
| Linked diagrams | ||||
| 1605 | ||||
