LY60-MDPJ3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

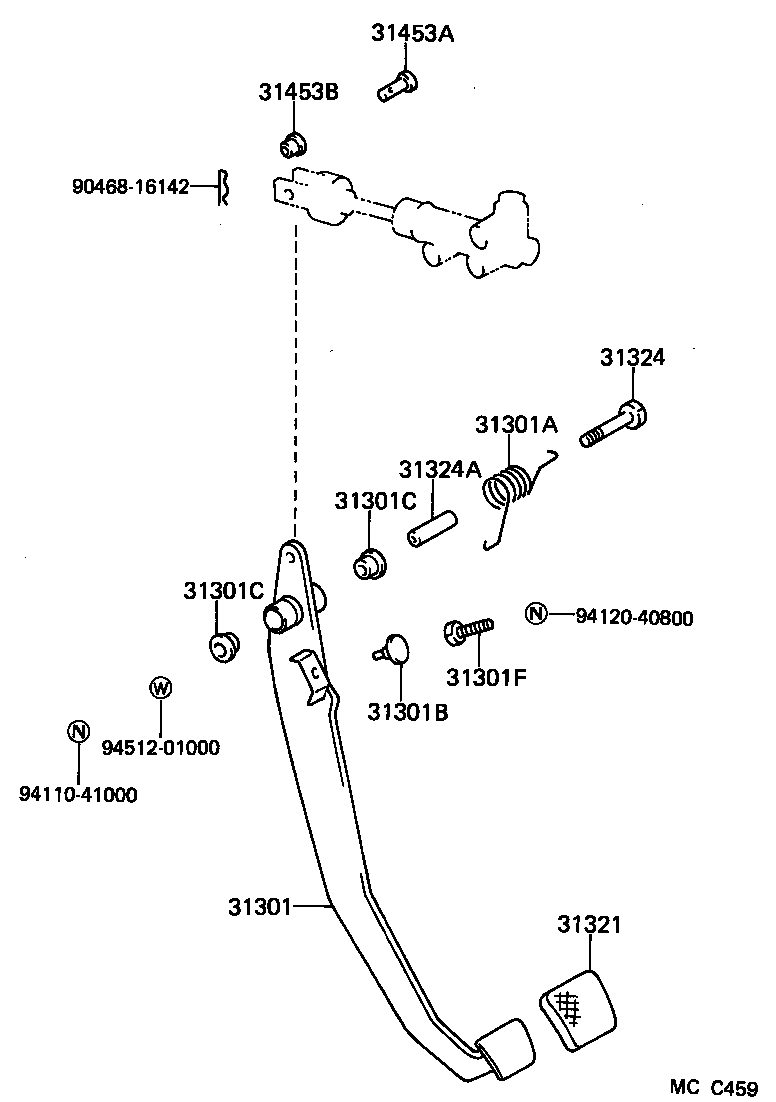

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26080

LY50,60,YY5#,61

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

LY50,60,YY5#,61

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LY50,60,YY5#,61

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY50,60,YY5#,61

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY50,60,YY5#,61

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LY50,60,YY5#,61

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LY50,60,YY5#,61

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LY50,60,YY5#,61

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LY50,60,YY5#,61

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LY50,60,YY5#,61

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LY50,60,YY5#,61

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000

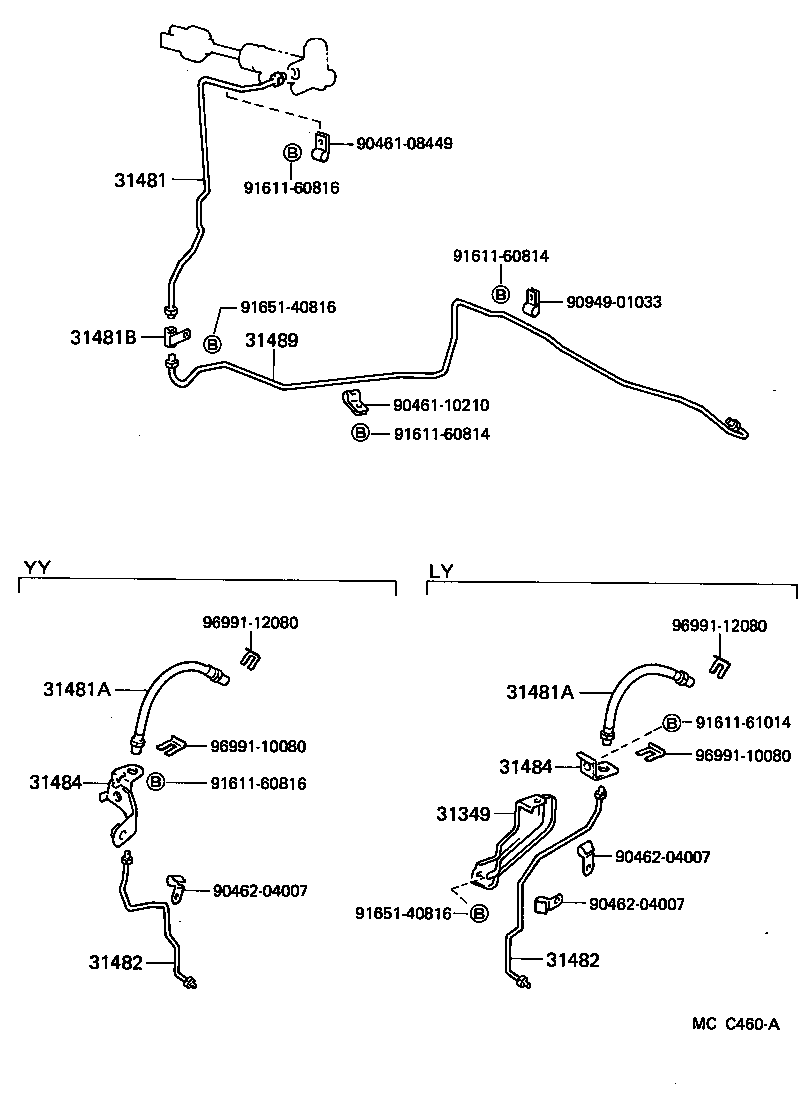

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 31349 31481 31481A 31481A 31481B 31482 31482 31484 31484 31489 9046108449 9046110210 9046204007 9046204007 9046204007 9094901033 9161160814 9161160814 9161160816 9161160816 9161161014 9165140816 9165140816 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26010

LY60;LY50..10T,15T

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-25110

LY50,60,YY5#,61

 1
31481A - HOSE, CLUTCH, NO.1
96815-50300

LY50,60

L=300

 1
96815-50280

LY50,60

 1
31481A - HOSE, CLUTCH, NO.1
96815-50300

LY50,60

L=300

 1
96815-50280

LY50,60

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12019

LY50,60,YY5#,61

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25081

LY60;LY50..10T,15T

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25081

LY60;LY50..10T,15T

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26070

LY50,60

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26070

LY50,60

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25080

LY50,60,YY5#,61

 1
Common parts
90461-08449
90461-10210
90462-04007
90949-01033
91611-60814
91611-60816
91611-61014
91651-40816
96991-10080
96991-12080
