LY60-MDPJ3 (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

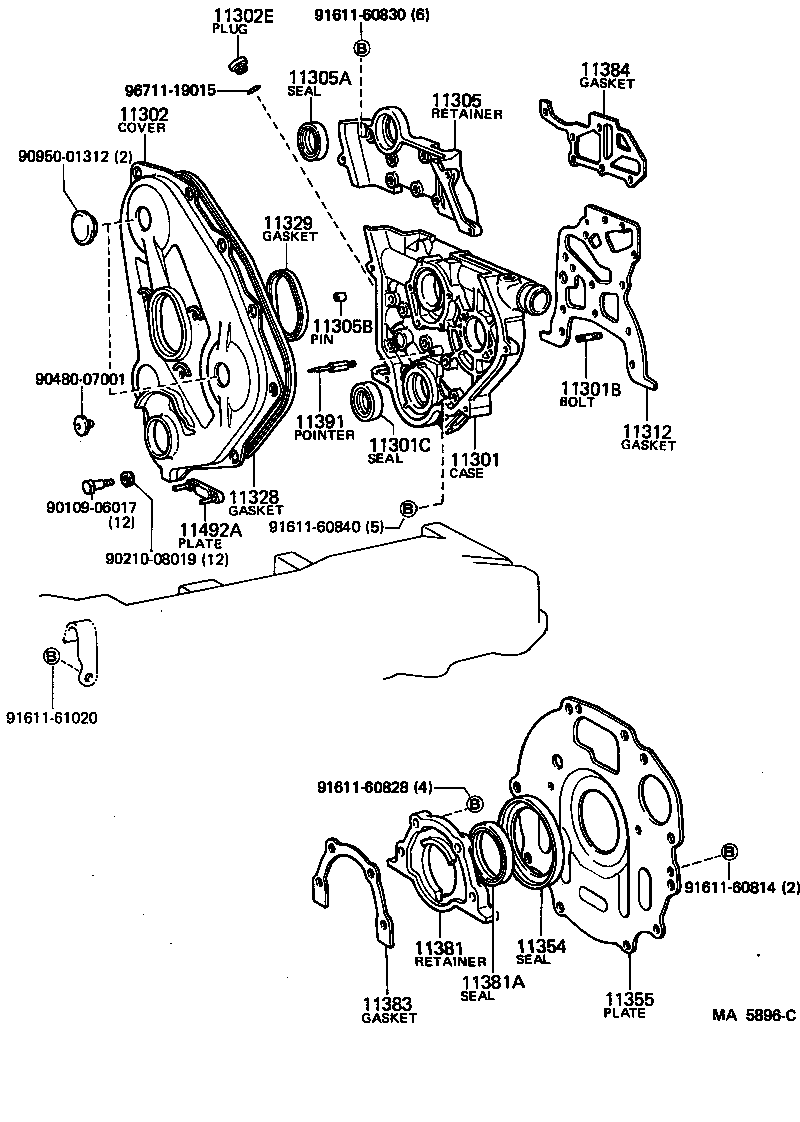

(8508- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11311-54022 |
2L..LY50,60 |
1 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 92132-60828 |
2L..LY50,60 L=28,S=16&16 |
2 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42012 |
2L..LY50,60 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-54014 |
2L..LY50,60 |
1 | ||
| 11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER) | ||||
| 90341-18004 |
2L..LY50,60 |
1 | ||
| 11305 - RETAINER, OIL SEAL, NO.2 | ||||
| 11382-54010 |
2L..LY50,60 |
1 | ||
| 11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90311-42003 |
2L..LY50,60 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11001 |
2L..LY50,60 |
2 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-54013 |
2L..LY50,60 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-54010 |
2L..LY50,60 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-54011 |
2L..LY50,60 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-54010 |
2L..LY50,60 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-54030 |
2L..LY50,60 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-54010 |
2L..LY50,60 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-85004 |
2L..LY50,60 |
1 | ||
| 90311-85003 |
2L..LY50,60 HTC85 105 10 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-54010 |
2L..LY50,60 |
1 | ||
| 11384 - GASKET, OIL SEAL RETAINER, NO.2 | ||||
| 11384-54010 |
2L..LY50,60 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-54010 |
2L..LY50,60 |
1 | ||
| 11492A - PLATE, WATER SEAL | ||||
| 11492-54010 |
2L..LY50,60 |
1 | ||
| Common parts | ||||
| 90109-06017 | ||||
| 90210-08019 | ||||
| 90480-07001 | ||||
| 90950-01312 | ||||
| 91611-60814 | ||||
| 91611-60828 | ||||
| 91611-60830 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 96711-19015 | ||||

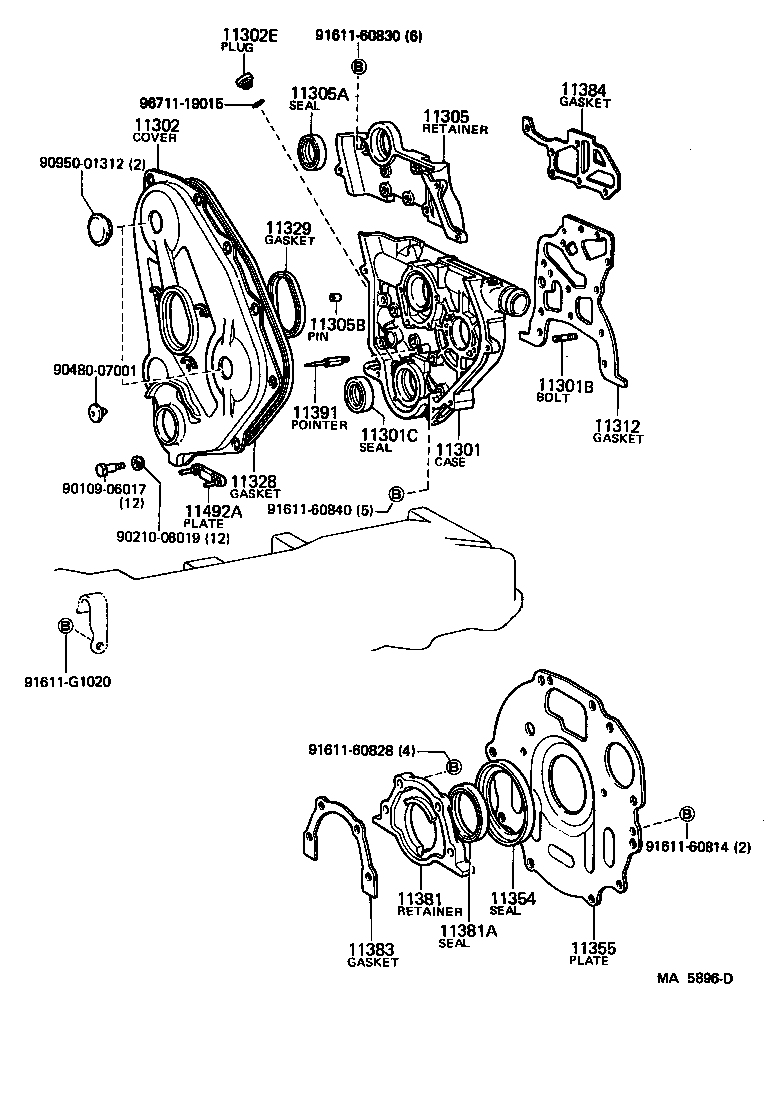

(8708-8808)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06017 | ||||
| 90210-08019 | ||||
| 90480-07001 | ||||
| 90950-01312 | ||||
| 91611-60814 | ||||
| 91611-60828 | ||||
| 91611-60830 | ||||
| 91611-60840 | ||||
| 91611-G1020 | ||||
| 96711-19015 | ||||
