LY60-MDPJ (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
Aug 1988
Engine
2L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )MTM

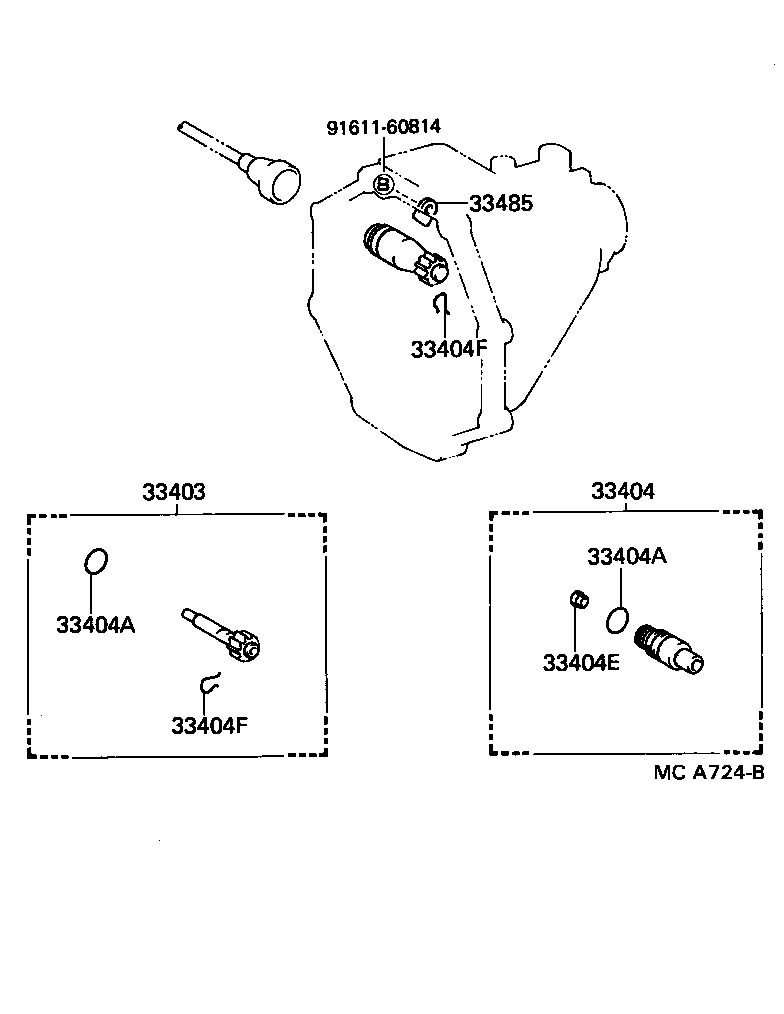

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-29175 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY52..15T;YY61..MTM..(ST,WT1) 歯数=35,ﾏｰｸ 35:10 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-22010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
