LY60-MDPJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808)2L

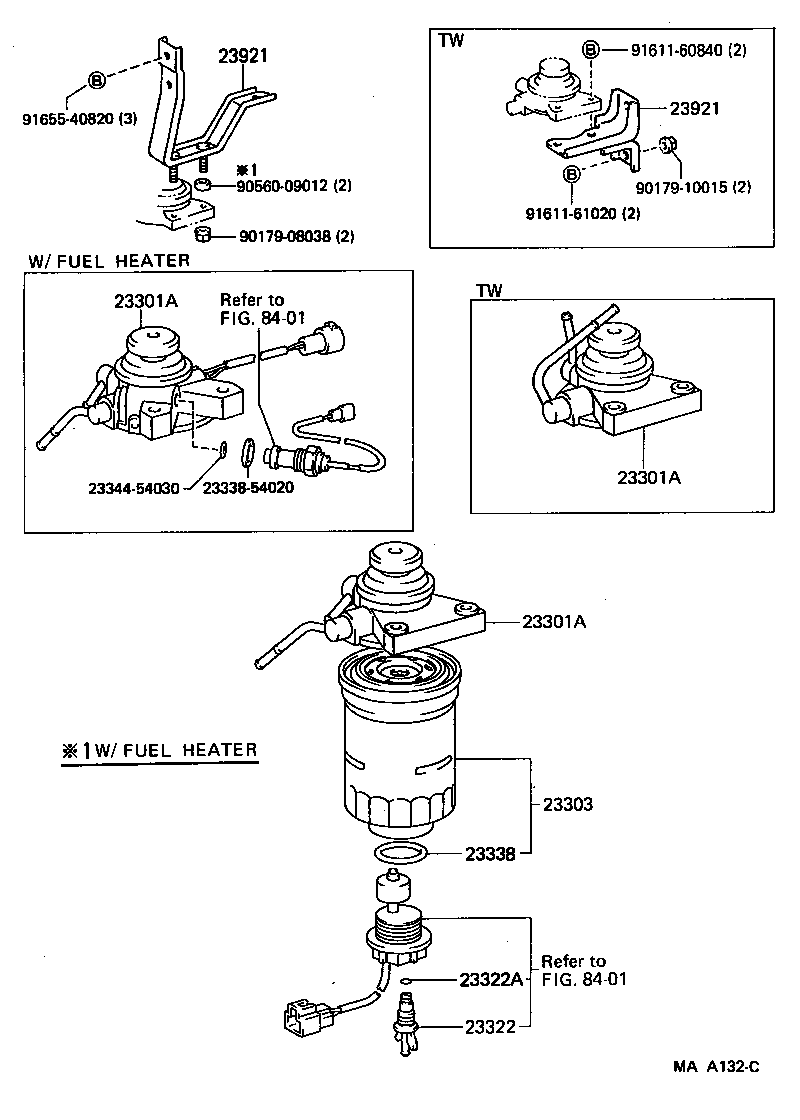

Click highlighted areas on diagram

diagram 23301A 23301A 23301A 23303 23322 23322A 23338 2333854020 2334454030 23921 23921 8401 8401 9017908038 9017910015 9056009012 9161160840 9161161020 9165540820
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54120

2L..LY50,60..TW

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54110

2L..LY50,60..TW

 1
23301A - CAP ASSY, FUEL FILTER
23301-54120

2L..LY50,60..TW

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54110

2L..LY50,60..TW

 1
23301A - CAP ASSY, FUEL FILTER
23301-54120

2L..LY50,60..TW

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54110

2L..LY50,60..TW

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,3L..LY5#,6#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L,3L..LY5#,6#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,3L..LY5#,6#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,3L..LY5#,6#

 1
23921 - SUPPORT, FUEL FILTER
23921-54220

2L,3L..LY50,6#..TW

 1
23921 - SUPPORT, FUEL FILTER
23921-54220

2L,3L..LY50,6#..TW

 1
Common parts
23338-54020
23344-54030
90179-08038
90179-10015
90560-09012
91611-60840
91611-61020
91655-40820
Linked diagrams
8401
