LY60-MDPGTJ3 (1987)
Toyota Toyoace/Dyna
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51707 - STEP SUB-ASSY, RH | ||||
| 58307-95403 |
LY50,6#,YY5#,61..TW |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 58308-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 51791A - PANEL, STEP, REAR RH | ||||
| 51792-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 51792A - PANEL, STEP, REAR LH | ||||
| 51792-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LY50,6#,YY5#,61..TW |
2 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LY50,6#,YY5#,61..TW |
2 | ||
| 58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1 | ||||
| 58107-95A00 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58130 - COVER ASSY, RESERVE TANK SERVICE HOLE | ||||
| 58130-92600 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58207A - COVER SUB-ASSY, PARKING BRAKE CABLE | ||||
| 58207-92605 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58243-95415 |
LY50,6#,YY51,61..TW |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58244-95411 |
LY50,6#,YY51,61..TW |
1 | ||
| 58265E - PACKING, TRANSMISSION COVER, C | ||||
| 58265-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-95402 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-95403 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-95402 |
LY50,6#,YY5#,61..TW |
2 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-95402 |
LY50,6#,YY5#,61..TW |
2 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-92601 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-95401 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-95401 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT | ||||
| 64102-95A00 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64133A - COVER, HEADER PANEL | ||||
| 64133-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64138A - SEAL, HEADER PANEL COVER | ||||
| 64138-95400 |
LY50,6#,YY5#,61..TW |
4 | ||
| 64138A - SEAL, HEADER PANEL COVER | ||||
| 64138-95400 |
LY50,6#,YY5#,61..TW |
4 | ||
| 64191A - BRACKET, REAR SEAT BELT ANCHORAGE, RH | ||||
| 64191-95405 |
LY50,6#,YY51,61..TW |
2 | ||
| 64191A - BRACKET, REAR SEAT BELT ANCHORAGE, RH | ||||
| 64191-95405 |
LY50,6#,YY51,61..TW |
2 | ||
| 65305D - COVER SUB-ASSY, BATTERY HOLE | ||||
| 65305-95A03 |
LY50,6#,YY5#,61..TW |
1 | ||
| 65352A - PACKING, BATTERY HOLE COVER, NO.2 | ||||
| 65352-95A02 |
LY50,6#,YY5#,61..TW |
1 | ||
| Common parts | ||||
| 90154-80007 | ||||
| 90179-08068 | ||||
| 91621-40818 | ||||
| 91665-40616 | ||||

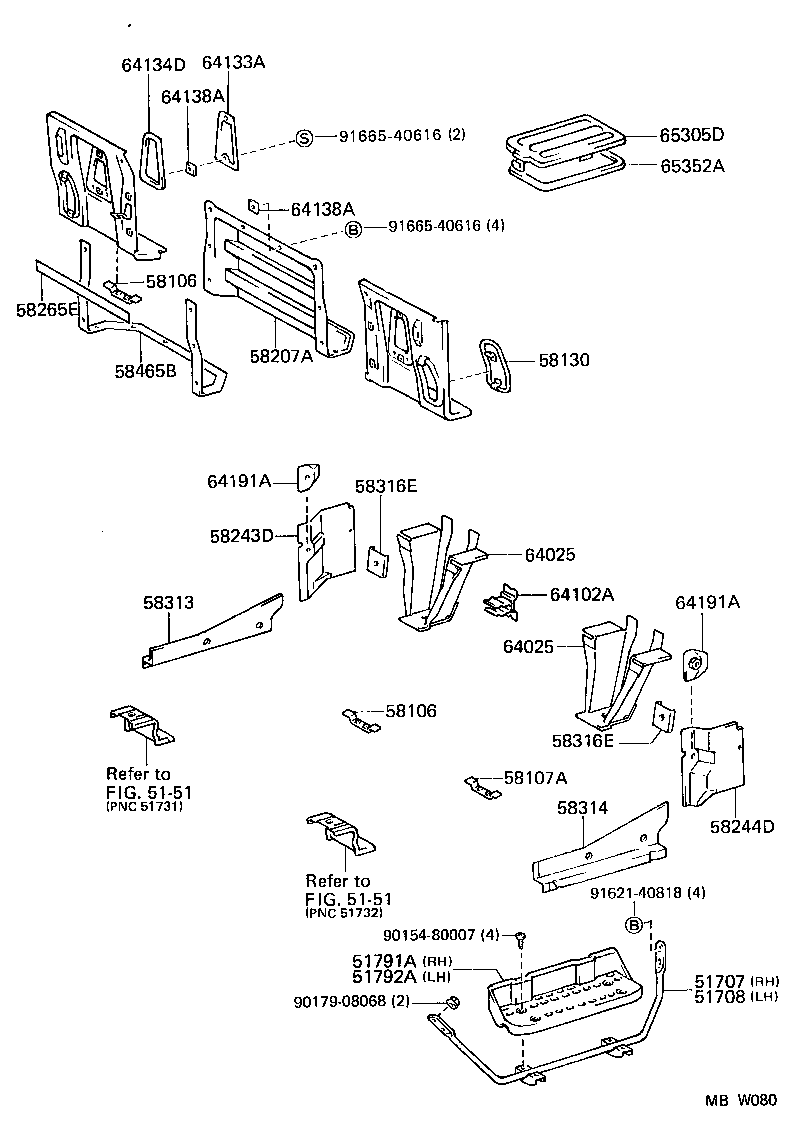

| Linked diagrams | ||||
| 5151 | ||||
