LY60-MDPGTJ3 (1987)
Toyota Toyoace/Dyna
(8708- )2L,3L
12V 2.5KW,2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28011-54010 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54130 |
2L..LY50,60 12V 2.5KW,ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28100-54061 |
2L..LY50,60 12V 2.5KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28100-54110 |
2L,3L..LY5#,6# 12V 2.0KW,ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28115-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2L..LY50,60 |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28119-54070 |
2L..LY50,60 |
1 | ||
| 28199-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28119-54070 |
2L..LY50,60 |
1 | ||
| 28199-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28119-54070 |
2L..LY50,60 |
1 | ||
| 28199-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28120-56081 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28139-54023 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28140-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28150-54110 |
2L,3L..LY5#,6# ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,12V 2.0KW |
1 | ||
| 28150-54130 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,12V 2.5KW |
1 | ||
| 28150-54011 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54170 |
2L,3L..LY5#,6# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28160-47040 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10107 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L,3L..LY5#,6# NO.2 |
1 | ||
| 90099-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,NO.1 |
1 | ||
| 90099-10131 |
2L,3L..LY5#,6# NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10107 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L,3L..LY5#,6# NO.2 |
1 | ||
| 90099-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,NO.1 |
1 | ||
| 90099-10131 |
2L,3L..LY5#,6# NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28165-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2L..LY50,60 |
1 | ||
| 28222A - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2L..LY50,60 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54360 |
2L,3L..LY5#,6# ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L,3L..LY5#,6# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
2L..LY50,60 12V 2.5KW |
5 | ||
| 28228-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28229-56080 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28254-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||

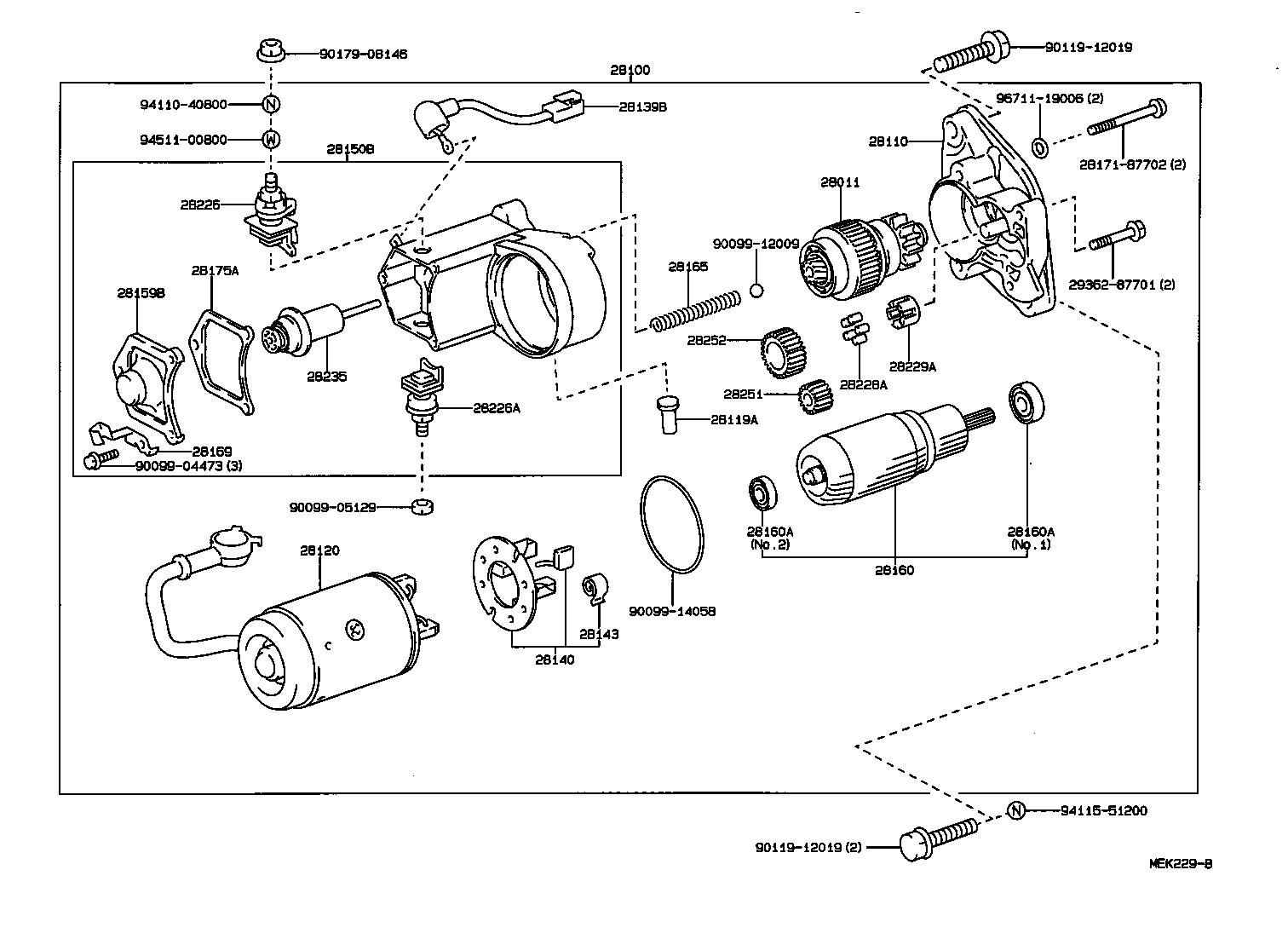

(8708- )2L,3L
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28011-54010 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54130 |
2L..LY50,60 12V 2.5KW,ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28100-54061 |
2L..LY50,60 12V 2.5KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28100-54110 |
2L,3L..LY5#,6# 12V 2.0KW,ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28115-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28119-54070 |
2L..LY50,60 |
1 | ||
| 28199-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28120-56081 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54070 |
2L,3L..LY5#,6# 12V 2.0KW |
1 | ||
| 28139-54023 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28140-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2L,3L..LY5#,6# |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28150-54110 |
2L,3L..LY5#,6# ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,12V 2.0KW |
1 | ||
| 28150-54130 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,12V 2.5KW |
1 | ||
| 28150-54011 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54170 |
2L,3L..LY5#,6# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ |
1 | ||
| 28160-47040 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10107 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L,3L..LY5#,6# NO.2 |
1 | ||
| 90099-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,NO.1 |
1 | ||
| 90099-10131 |
2L,3L..LY5#,6# NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10107 |
2L..LY50,60 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L,3L..LY5#,6# NO.2 |
1 | ||
| 90099-54120 |
2L..LY50,60 ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,NO.1 |
1 | ||
| 90099-10131 |
2L,3L..LY5#,6# NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28165-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54360 |
2L,3L..LY5#,6# ﾏｸﾞﾈﾂﾄ ｽｲﾂﾁ=ﾛﾝｸﾞ ﾗｲﾌ,12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L,3L..LY5#,6# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
2L..LY50,60 12V 2.5KW |
5 | ||
| 28228-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28229-56080 |
2L..LY50,60 12V 2.5KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2L,3L,2Y,3Y..LY5#,6#,YY5#,61 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L,3L..LY5#,6# |
1 | ||
| 28254-77090 |
2L..LY50,60 12V 2.5KW |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
