LY60-MDPGTJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L,3L

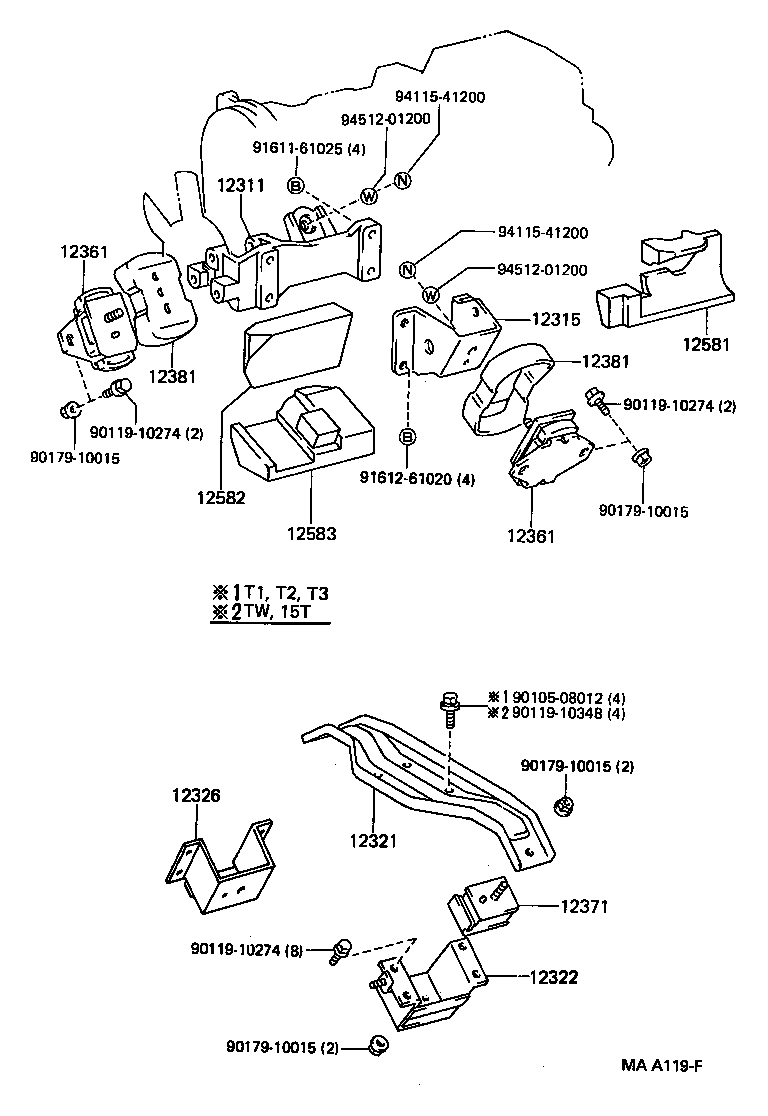

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12326 12361 12361 12371 12381 12381 12581 12582 12583 9010508012 9011910274 9011910274 9011910274 9011910348 9017910015 9017910015 9017910015 9017910015 9161161025 9161261020 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L,3L..LY5#,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

2L,3L..LY5#,6#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

2L..LY60;2L..LY50..10T,15T

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

2L,3L..LY5#,6#

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-71010

2L,3L..LY5#,6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L,3L..LY5#,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L,3L..LY5#,6#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

2L,3L..LY5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L,3L..LY5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L,3L..LY5#,6#

 2
Common parts
90105-08012
90119-10274
90119-10348
90179-10015
91611-61025
91612-61020
94115-41200
94512-01200
