LY60-MDPGTJ (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
Aug 1988
Engine
2L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708-8808)

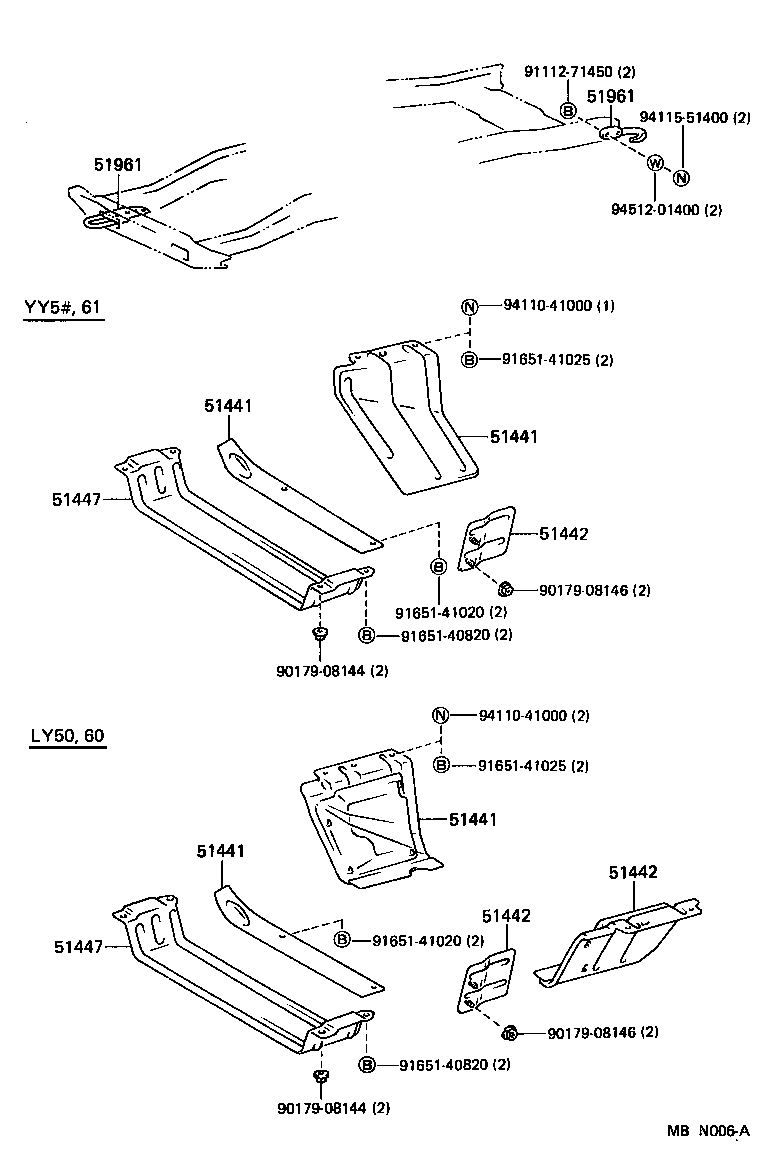

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51408-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51441-25160 |
LY50,60,YY5#,61 ﾌﾛﾝﾄ |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51408-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51441-25160 |
LY50,60,YY5#,61 ﾌﾛﾝﾄ |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51408-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51441-25160 |
LY50,60,YY5#,61 ﾌﾛﾝﾄ |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51408-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51441-25160 |
LY50,60,YY5#,61 ﾌﾛﾝﾄ |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51409-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51442-25050 |
LY50,60 ﾌﾛﾝﾄ |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51409-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51442-25050 |
LY50,60 ﾌﾛﾝﾄ |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51409-25010 |
LY50,60 ﾘﾔ |
1 | ||
| 51442-25050 |
LY50,60 ﾌﾛﾝﾄ |
1 | ||
| 51447 - GUIDE, ENGINE UNDER COVER AIR | ||||
| 51447-25070 |
LY50,60,YY5#,61 |
1 | ||
| 51447 - GUIDE, ENGINE UNDER COVER AIR | ||||
| 51447-25070 |
LY50,60,YY5#,61 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-25020 |
LY5#,6#,YY5#,61 FR |
1 | ||
| 51961-36010 |
LY5#,6#,YY5#,61 RR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-25020 |
LY5#,6#,YY5#,61 FR |
1 | ||
| 51961-36010 |
LY5#,6#,YY5#,61 RR |
1 | ||
| Common parts | ||||
| 90179-08144 | ||||
| 90179-08146 | ||||
| 91112-71450 | ||||
| 91651-40820 | ||||
| 91651-41020 | ||||
| 91651-41025 | ||||
| 94110-41000 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||
