LY60-MDPGT3 (1987)
Toyota Toyoace/Dyna

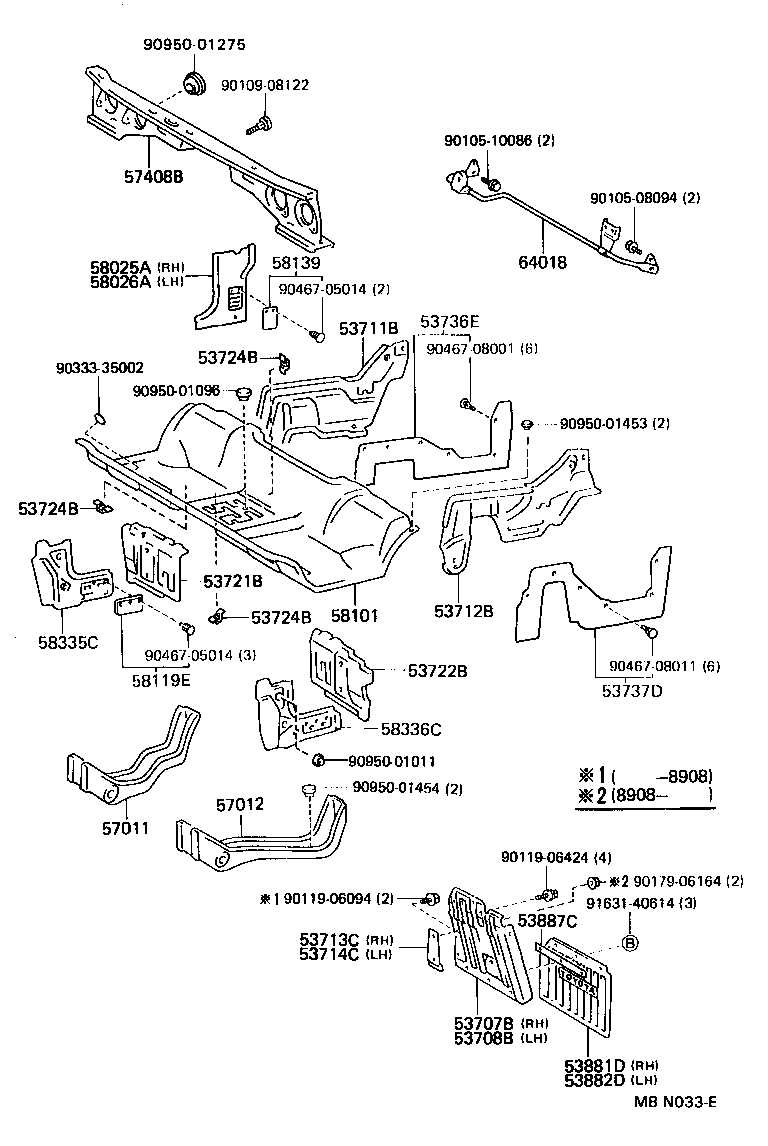

ILLUST NO. 1 OF 2(8708- )T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95405 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53715-95A01 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95404 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53716-95A02 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53707-95012 |
LY5#,6# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53708-95011 |
LY50,60,YY5#,61 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53747-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53748-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-95010 |
LY50,60,YY5#,61 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53881-95A03 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53881-95A03 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53887C - PLATE, FRONT MUDGUARD | ||||
| 53887-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-95022 |
LY50,60;YY51,61..TW |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-95400 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 58025-95012 |
LY50,6#,YY51,61..TW |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-95400 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 58026-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95055 |
LY5#,6#,YY5#,61 |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 58139 - COVER, FRONT FLOOR SIDE, REAR | ||||
| 58139-95401 |
LY50,60,YY5#,61..T1,T2,T3,T4 右側 |
1 | ||
| 58139-95400 |
LY50,60,YY5#,61..T1,T2,T3,T4 左側 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95401 |
LY50,60,YY5#,61 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95401 |
LY50,60,YY5#,61 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90109-08122 | ||||
| 90119-06094 | ||||
| 90119-06424 | ||||
| 90179-06164 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90467-08001 | ||||
| 90467-08011 | ||||
| 90950-01011 | ||||
| 90950-01096 | ||||
| 90950-01275 | ||||
| 90950-01453 | ||||
| 90950-01454 | ||||
| 91631-40614 | ||||
ILLUST NO. 1 OF 2(8708- )TW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95405 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53715-95A01 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95404 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53716-95A02 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53707-95012 |
LY5#,6# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53708-95011 |
LY50,60,YY5#,61 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-92600 |
LY50,6#,YY5#,61..TW |
2 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-95010 |
LY50,60,YY5#,61 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53881-95A03 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 53881-95A03 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-95022 |
LY50,60;YY51,61..TW |
1 | ||
| 57441B - COVER, FLOOR SIDE RAIL PLATE | ||||
| 57441-92600 |
LY50,6#,YY5#,61..TW |
2 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-95400 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 58025-95012 |
LY50,6#,YY51,61..TW |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-95400 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 58026-95401 |
LY50,6#,YY5#,61..TW |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95055 |
LY5#,6#,YY5#,61 |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95401 |
LY50,60,YY5#,61 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95401 |
LY50,60,YY5#,61 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90109-08122 | ||||
| 90119-06094 | ||||
| 90119-06424 | ||||
| 90179-06164 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90467-08001 | ||||
| 90467-08011 | ||||
| 90950-01011 | ||||
| 90950-01095 | ||||
| 90950-01275 | ||||
| 90950-01454 | ||||
| 93540-14512 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51772-95406 |
LY5#,6#,YY5#,61 左側 |
1 | ||
| 51771-95406 |
LY5#,6#,YY5#,61 右側 |
1 | ||
| 57358 - BRACKET, RADIATOR PIPE CLAMP | ||||
| 57358-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58213-95418 |
LY5#,6#,YY5#,61 |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95415 |
LY5#,6#,YY5#,61 |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95011 |
LY5#,6#,YY5#,61 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95409 |
LY50,60,YY5#,61 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY50,60,YY5#,61 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
LY5#,6#,YY5#,61 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY5#,6#,YY5#,61 |
1 | ||
| 58795D - PLATE, JACK CLAMP | ||||
| 58795-95500 |
LY50,6#,YY5#,61..TW |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570403 |
LY5#,6#,YY5#,61..DYN SHADOW GRAY,TRIM4# |
2 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90159-60366 | ||||
| 90159-80063 | ||||
| 90541-09126 | ||||
| 91655-40816 | ||||
| 91656-40616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 7151 | ||||
