LY60-MDP3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY50,60

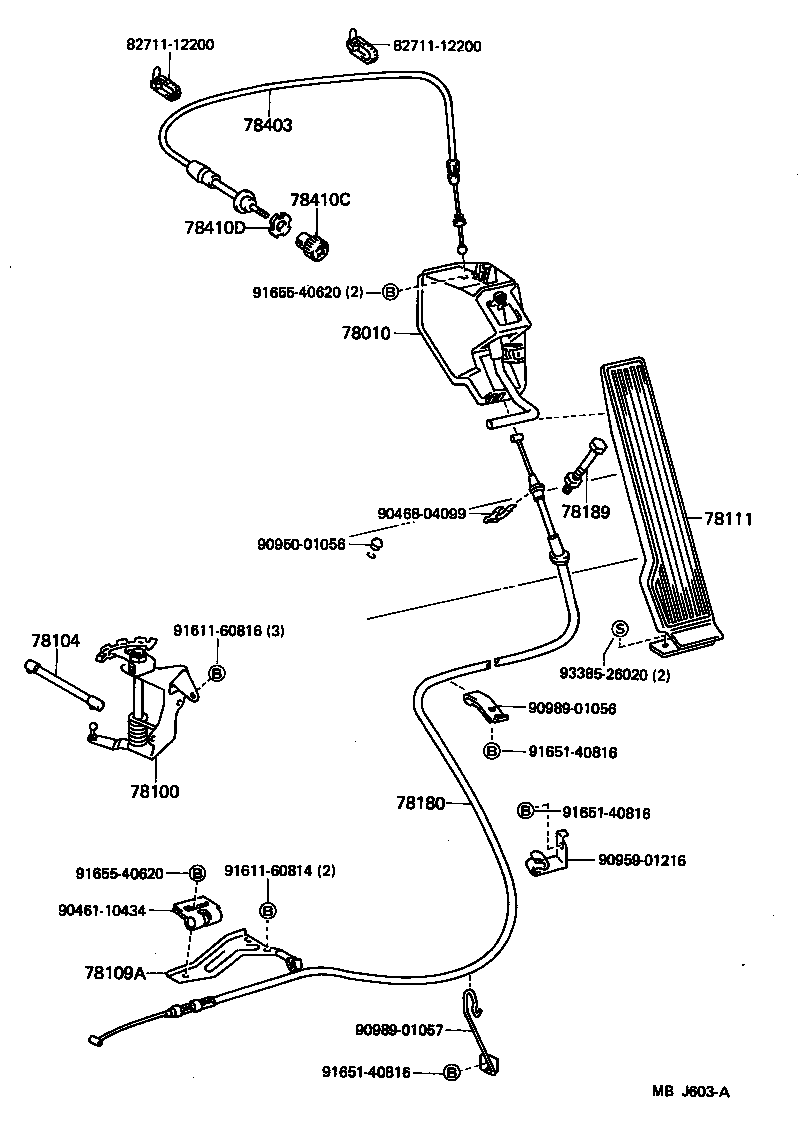

Click highlighted areas on diagram

diagram 78010 78100 78104 78109A 78111 78180 78189 78403 78410C 78410D 8271112200 8271112200 9046110434 9046804099 9095001056 9095901216 9098901056 9098901057 9161160814 9161160816 9165140816 9165140816 9165140816 9165540620 9165540620 9338526020
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95010

LY50,60,YY5#,61

 1
78100 - LINK ASSY, ACCELERATOR
78100-95J06

LY50,60

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LY50,60

 1
78109A - BRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP
78109-95J00

LY50,60

 1
78111 - PEDAL, ACCELERATOR
78110-95410

LY50,60,YY5#,61

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95056

LY50,60

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

LY50,60,YY5#,61

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95010

LY50,60

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LY50,60

 1
78410D - NUT, THROTTLE
78314-95010

LY50,60

 1
Common parts
82711-12200
90461-10434
90468-04099
90950-01056
90959-01216
90989-01056
90989-01057
91611-60814
91611-60816
91651-40816
91655-40620
93385-26020
