LY60-MDLT (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

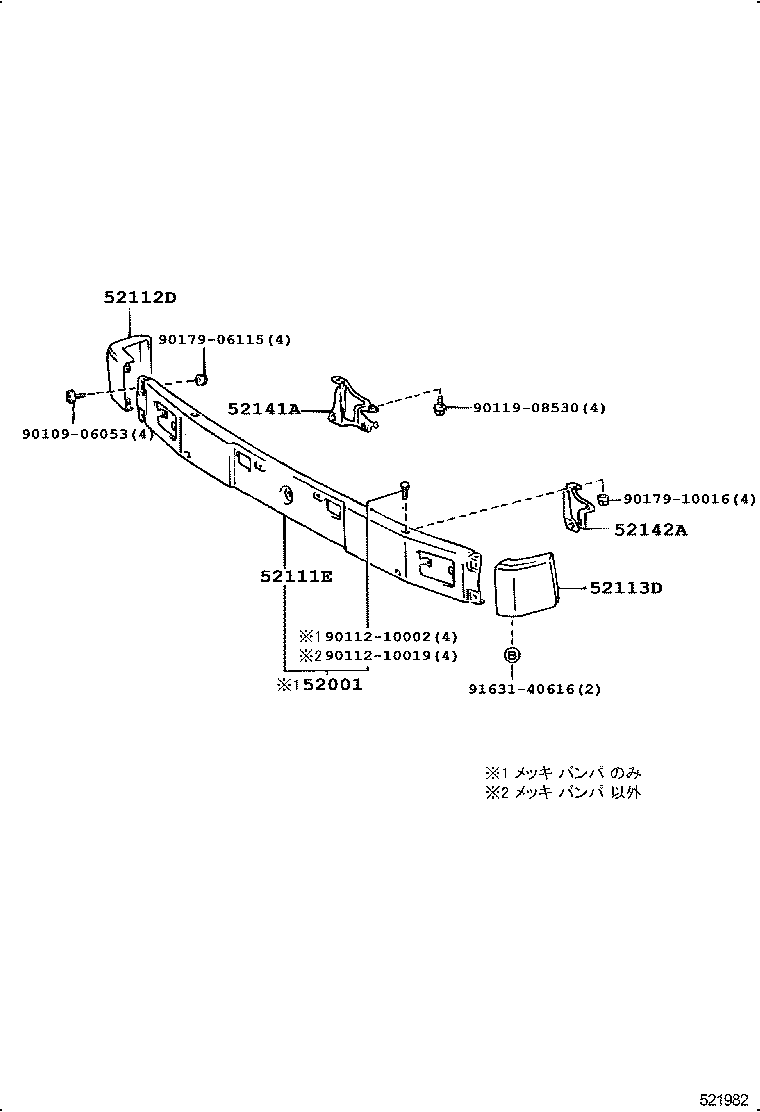

Click highlighted areas on diagram

diagram 52001 52111E 52112D 52113D 52141A 52142A 9010906053 9011210002 9011210019 9011908530 9017906115 9017910016 9163140616
Part # Description Qty Price
52001 - FRONT BUMPER SET
52001-95400

LY5#,6#,YY5#,61..CBR,DSL

***

 1
52111E - BAR, FRONT BUMPER
52111-9543405

LY5#,6#,YY5#,61..DYN

BEIGE M,048 ,4E4

 1
52111-95428

LY5#,6#,YY5#,61..CBR,DSL

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 1
52111-9543403

LY60..DYN..WT2..IV;LY60..DYN..(ST,WT1);LY5#,61,YY5#,61..DYN

SILVER M,048 ,4E4 ,705

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

LY5#,6#,YY5#,61

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

LY5#,6#,YY5#,61

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95013

LY5#,6#,YY5#,61

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95013

LY5#,6#,YY5#,61

 1
Common parts
90109-06053
90112-10002
90112-10019
90119-08530
90179-06115
90179-10016
91631-40616
