LY60-MDFTJ3 (1987)
Toyota Toyoace/Dyna

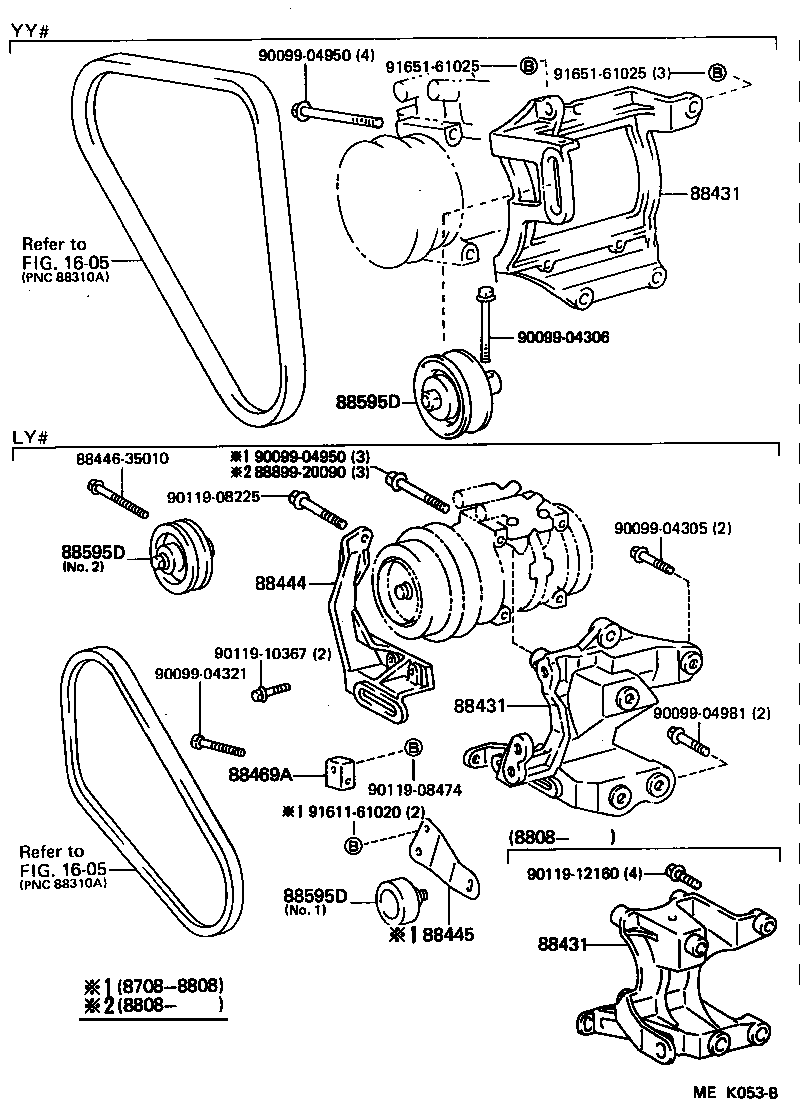

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88444-25051 |
LY50,60..(T2,T4)..15T..IV ｱﾘ(2ｺﾝﾌﾟ A/Cﾃｲｵﾝ) |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LY50,60 |
1 | ||
| 88469A - COLLAR, ADJUSTING | ||||
| 88469-30280 |
LY5#,6# |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88440-26070 |
LY50,60..(T2,T4)..15T..IV NO.1 |
1 | ||
| 88440-35010 |
LY50,60..(T2,T4)..15T..IV NO.2 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88440-26070 |
LY50,60..(T2,T4)..15T..IV NO.1 |
1 | ||
| 88440-35010 |
LY50,60..(T2,T4)..15T..IV NO.2 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88440-26070 |
LY50,60..(T2,T4)..15T..IV NO.1 |
1 | ||
| 88440-35010 |
LY50,60..(T2,T4)..15T..IV NO.2 |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90099-04305 | ||||
| 90099-04306 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||

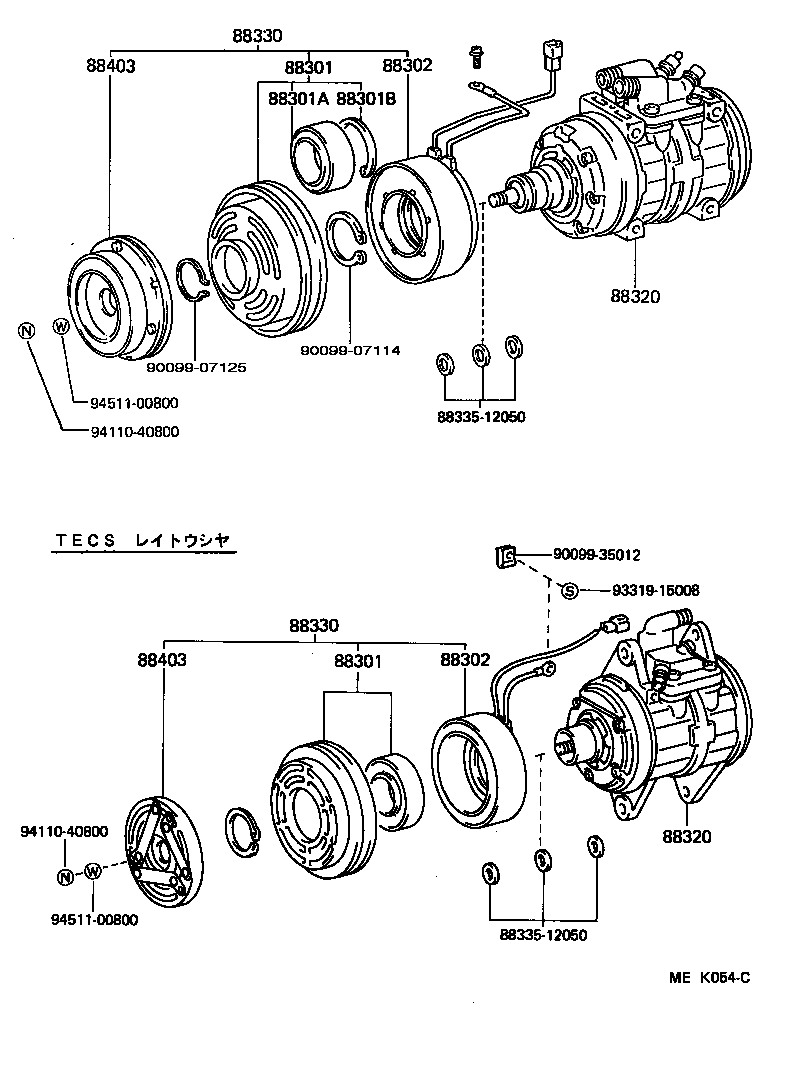

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-25020 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88412-22030 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-25020 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88412-22030 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88301A - BEARING (FOR MAGNET CLUTCH) | ||||
| 90099-10162 |
LY50,60,YY5#,61 |
1 | ||
| 88301B - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
LY50,60,YY5#,61 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88411-14050 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88411-14050 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26300 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88320-25050 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26300 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88320-25050 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
LY50,60,YY5#,61 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
LY50,60,YY5#,61 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-36030 |
LY50,60..(T2,T4)..15T..IV ｱﾘ(2ｺﾝﾌﾟ A/Cﾃｲｵﾝ) |
1 | ||
| 88403-12030 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-36030 |
LY50,60..(T2,T4)..15T..IV ｱﾘ(2ｺﾝﾌﾟ A/Cﾃｲｵﾝ) |
1 | ||
| 88403-12030 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| Common parts | ||||
| 88335-12050 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

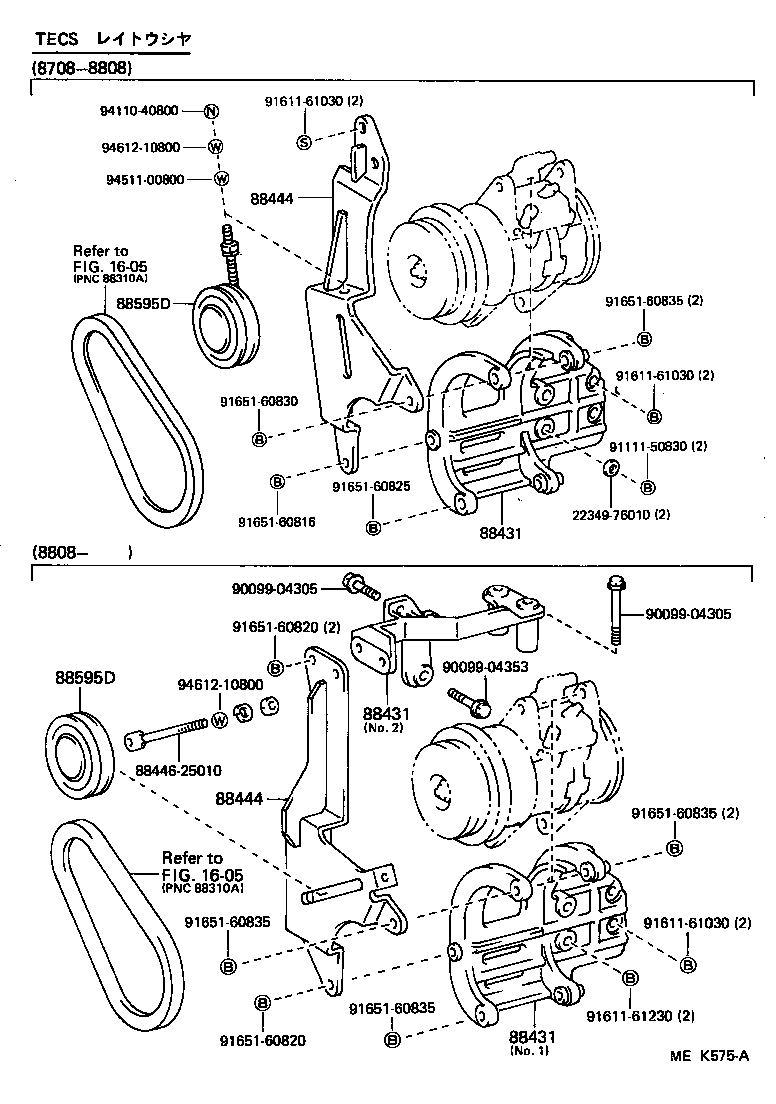

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25041 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88431-35100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88444-25051 |
LY50,60..(T2,T4)..15T..IV ｱﾘ(2ｺﾝﾌﾟ A/Cﾃｲｵﾝ) |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26100 |
LY50,60..(T2,T4)..15T..IV |
1 | ||
| 88444-25051 |
LY50,60..(T2,T4)..15T..IV ｱﾘ(2ｺﾝﾌﾟ A/Cﾃｲｵﾝ) |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88440-26070 |
LY50,60..(T2,T4)..15T..IV NO.1 |
1 | ||
| 88440-35010 |
LY50,60..(T2,T4)..15T..IV NO.2 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-25030 |
LY50,60..(T2,T4)..15T..IV TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 88440-26070 |
LY50,60..(T2,T4)..15T..IV NO.1 |
1 | ||
| 88440-35010 |
LY50,60..(T2,T4)..15T..IV NO.2 |
1 | ||
| Common parts | ||||
| 22349-76010 | ||||
| 88446-25010 | ||||
| 90099-04305 | ||||
| 90099-04353 | ||||
| 91111-50830 | ||||
| 91611-61030 | ||||
| 91611-61230 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
