LY60-MDFTJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

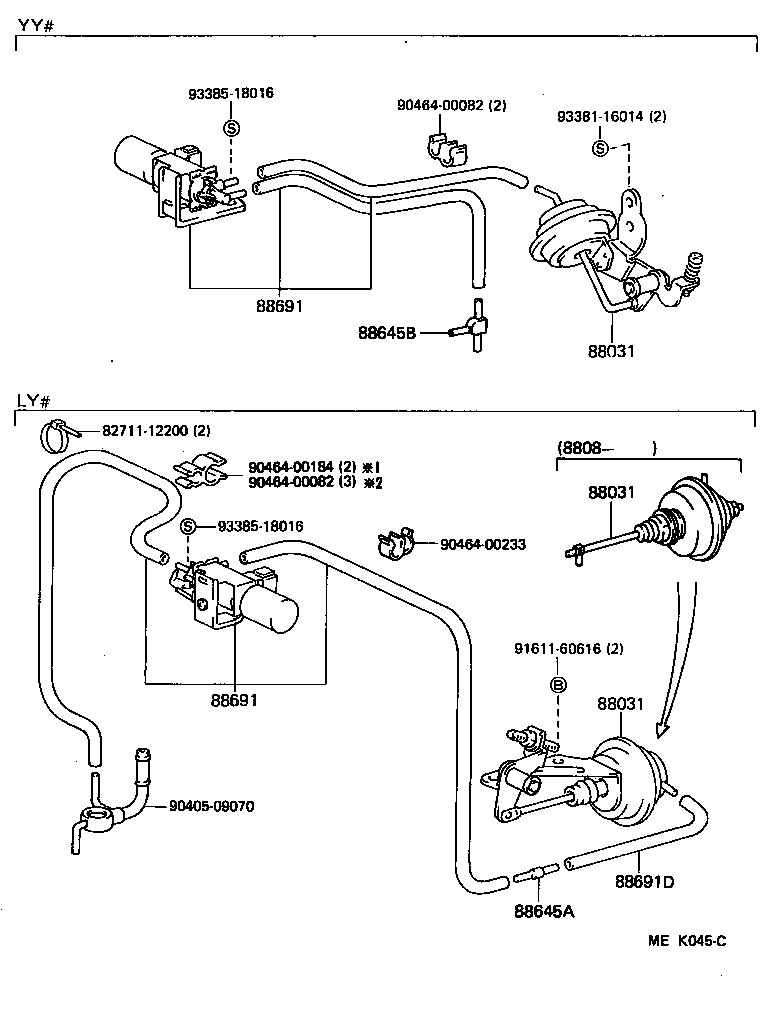

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88031 88645A 88645B 88691 88691 88691D 9040509070 9046400082 9046400082 9046400184 9046400233 9161160616 9338116014 9338518016 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY50,60

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY50,60

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY50,60

 1
88645A - UNION (FOR IDLE UP DEVICE)
90405-05127

LY5#,6#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95023

LY50,60

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95023

LY50,60

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92002

LY5#,6#

*H,L=300

 1
Common parts
82711-12200
90405-09070
90464-00082
90464-00184
90464-00233
91611-60616
93381-16014
93385-18016
