LY60-MDFTJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

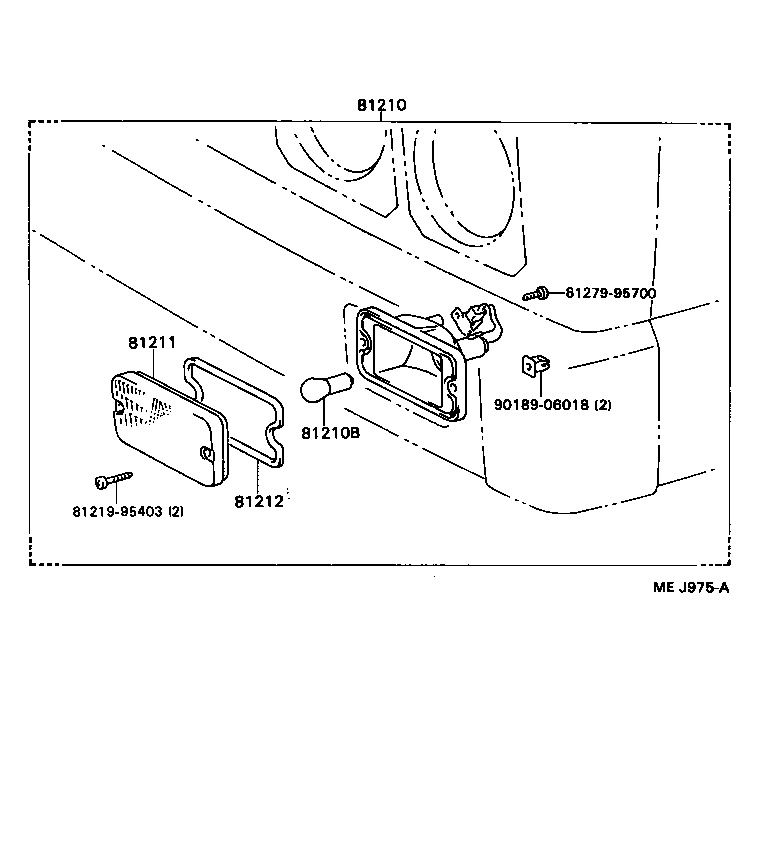

Click highlighted areas on diagram

diagram 81210 81210B 81211 81212 8121995403 8127995700 9018906018
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-39155

LY5#,6#,YY5#,61

右側

 1
81220-39095

LY5#,6#,YY5#,61

左側

 1
81210B - BULB, FOG LAMP
90981-13029

LY5#,6#,YY5#,61

12V 35W

 2
81211 - LENS, FOG LAMP
81211-95403

LY5#,6#,YY5#,61

右側

 1
81221-95403

LY5#,6#,YY5#,61

左側

 1
81212 - GASKET, FOG LAMP LENS
81212-95403

LY5#,6#,YY5#,61

 2
Common parts
81219-95403
81279-95700
90189-06018
