LY60-MDFTJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

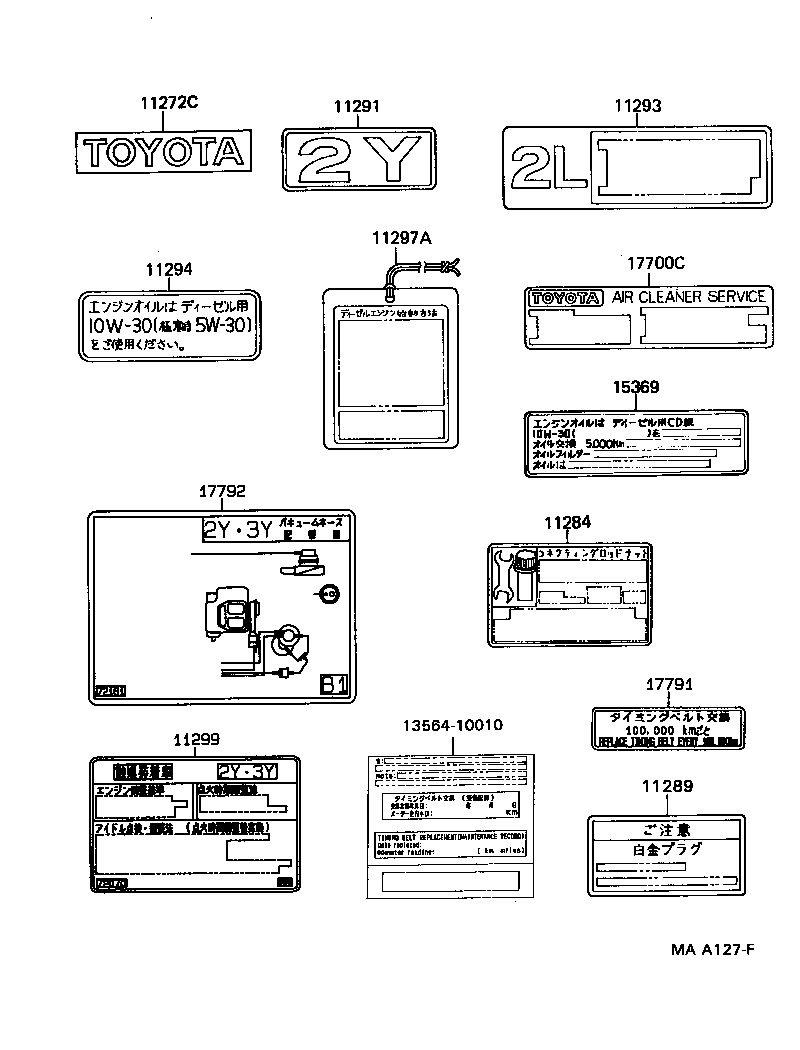

Click highlighted areas on diagram

diagram 11272C 11284 11289 11291 11293 11294 11297A 11299 1356410010 15369 17700C 17791 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-54010

2L..LY50,60

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-54030

2L..LY50,60

 1
11294 - PLATE, ENGINE CAUTION, NO.2
11294-54040

2L..LY50,60

 1
11297A - PLATE, ENGINE START CAUTION
11297-64010

2L,3L..LY5#,6#

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17791-64020

2L,3L..LY5#,6#

 1
Common parts
13564-10010
