LY60-MDFTJ (1987)
Toyota Toyoace/Dyna
(8708- )

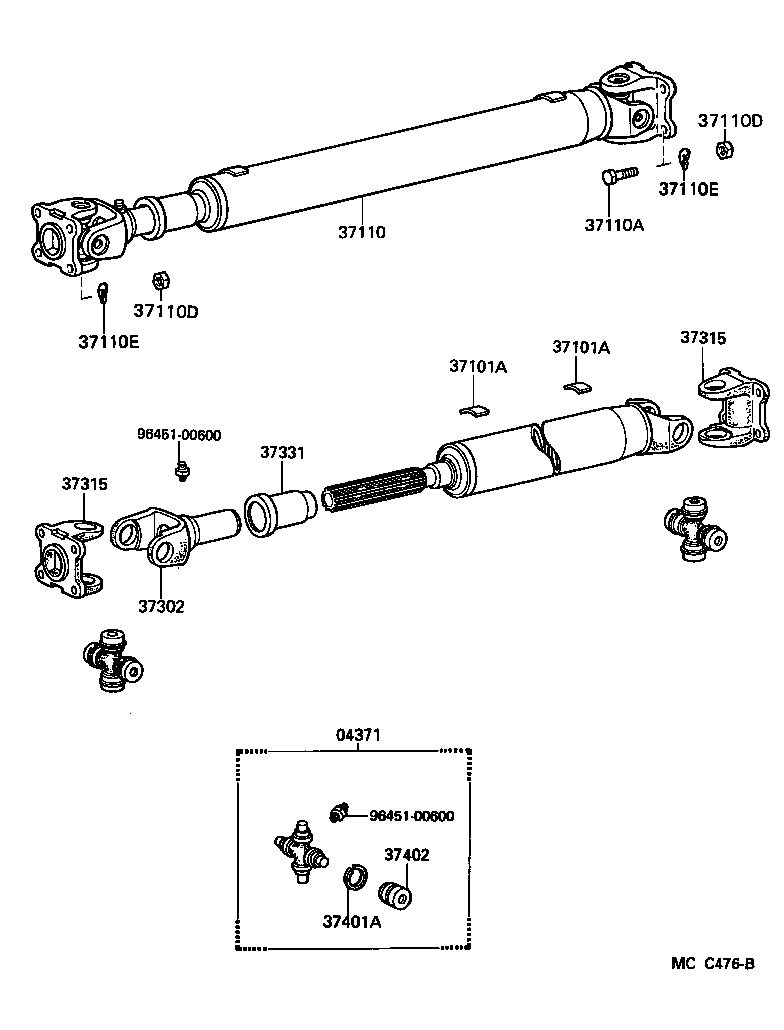

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
LY60,YY61..WT2 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-25350 |
LY60..WT2 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
LY6#,YY61..WT2 *11−1.00PX28−16 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
LY6#,YY61..WT2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
LY6#,YY61..WT2 |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
LY60,YY61..WT2 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
LY60,YY61..WT2 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-36020 |
LY60,YY61..WT2 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29027 |
LY60,YY61..WT2 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29024 |
LY60,YY61..WT2 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
LY60,YY61..WT2 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
LY60,YY61..WT2 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29027 |
LY60,YY61..WT2 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29024 |
LY60,YY61..WT2 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
LY60,YY61..WT2 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
LY60,YY61..WT2 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
LY60,YY61..WT2 |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
LY60,YY61..WT2 |
8 | ||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
LY60,YY61..WT2 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-25350 |
LY60..WT2 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
LY6#,YY61..WT2 *11−1.00PX28−16 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
LY6#,YY61..WT2 *11−1.00PX28−16 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
LY6#,YY61..WT2 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
LY6#,YY61..WT2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
LY6#,YY61..WT2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
LY6#,YY61..WT2 |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
LY60,YY61..WT2 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
LY60,YY61..WT2 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
LY60,YY61..WT2 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-36020 |
LY60,YY61..WT2 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29027 |
LY60,YY61..WT2 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29024 |
LY60,YY61..WT2 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
LY60,YY61..WT2 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
LY60,YY61..WT2 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29027 |
LY60,YY61..WT2 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29024 |
LY60,YY61..WT2 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
LY60,YY61..WT2 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
LY60,YY61..WT2 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
LY60,YY61..WT2 |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
LY60,YY61..WT2 |
8 | ||
| Common parts | ||||
| 96451-00600 | ||||
(8708- )WT2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
LY60,YY61..WT2 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
LY5#,6#,YY5#,61 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
LY5#,6#,YY5#,61 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY5#,6#,YY5#,61 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
LY5#,6#,YY5#,61 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
LY5#,6#,YY5#,61 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
LY5#,6#,YY5#,61 6G,長さ=12.4 |
1 | ||
| 90937-01147 |
LY5#,6#,YY5#,61 2G,厚さ=2.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-25350 |
LY60..WT2 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
LY6#,YY61..WT2 *11−1.00PX28−16 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
LY6#,YY61..WT2 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
LY6#,YY61..WT2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
LY6#,YY61..WT2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
LY6#,YY61..WT2 |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
LY60,YY61..WT2 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
LY60,YY61..WT2 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
LY60,YY61..WT2 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-36020 |
LY60,YY61..WT2 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29027 |
LY60,YY61..WT2 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29024 |
LY60,YY61..WT2 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
LY60,YY61..WT2 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
LY60,YY61..WT2 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
LY60,YY61..WT2 |
8 | ||
| Common parts | ||||
| 96451-00600 | ||||
