LY60-MDDJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY50,60

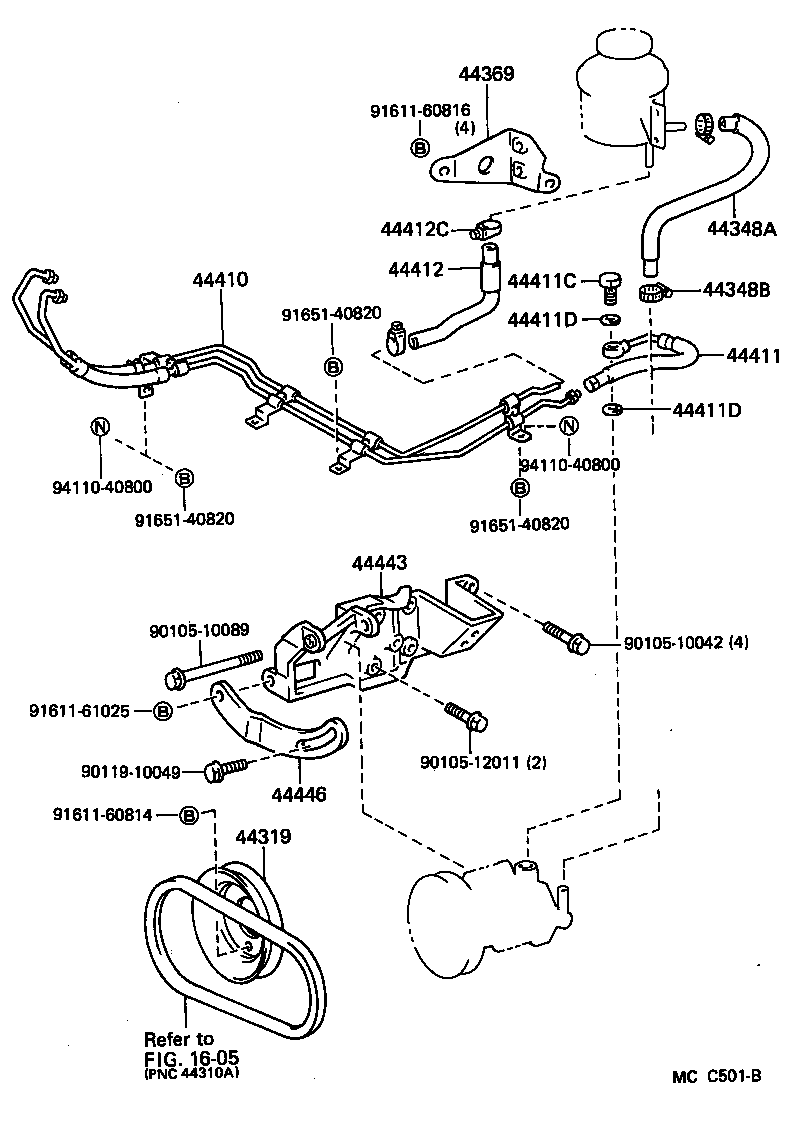

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44369 44410 44411 44411C 44411D 44411D 44412 44412C 44443 44446 9010510042 9010510089 9010512011 9011910049 9161160814 9161160816 9161161025 9165140820 9165140820 9165140820 9411040800 9411040800
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30030

LY50,60

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-25020

LY50,60

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LY50,60

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-25020

LY50,60

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-25040

LY50,60

 1
44411 - HOSE, PRESSURE FEED
44411-25030

LY50,60

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16005

LY50,60

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LY50,60

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LY50,60

 2
44412 - HOSE, RETURN
44412-25020

LY50,60

 1
44412C - CLAMP(FOR RETURN HOSE)
90460-01001

LY50,60,YY5#,61

 4
44443 - BRACKET, PUMP
44443-30080

LY50,60

 1
44446 - STRUT, ADJUSTING
44446-30070

LY50,60

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10049
91611-60814
91611-60816
91611-61025
91651-40820
94110-40800
Linked diagrams
1605
