LY60-MDBJ3 (1985)
Toyota Toyoace/Dyna
(8508- )LY60..ST,WT2..IV ; (8508- )LY60..TB..15T..CBU ; (8508- )LY60..15T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

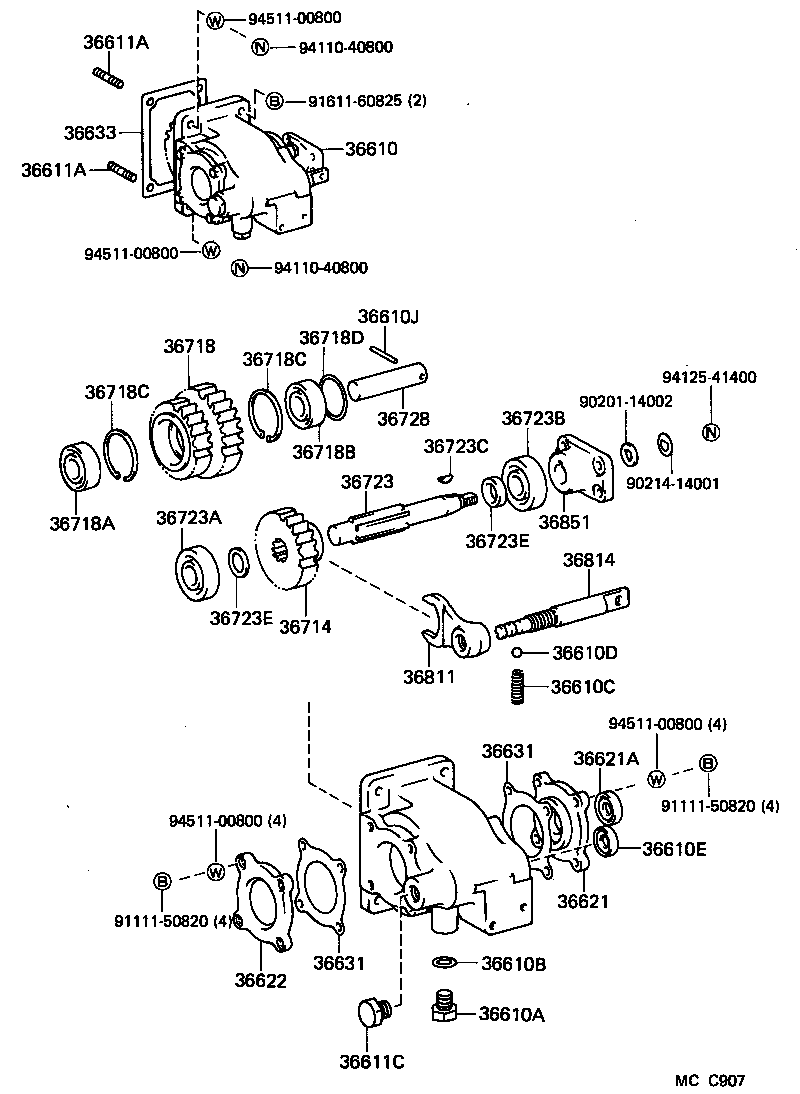

| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93107 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 38552-93003 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV 厚さ=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-18066 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20001 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36610J - PLATE OR PIN, LOCK (FOR POWER TAKE-OFF) | ||||
| 90254-04023 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-08157 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-08157 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE) | ||||
| 90341-18003 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93100 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-20002 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36622 - CAP, POWER TAKE-0FF BEARING | ||||
| 36622-93100 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93100 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93100 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36633 - GASKET, POWER TAKE-OFF | ||||
| 36633-93105 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93104 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36714-93105 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93108 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 90363-20037 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR) | ||||
| 90363-20038 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 96151-04700 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 96151-04700 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
2 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90560-20010 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=0.8 |
1 | ||
| 90560-20015 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.3 |
1 | ||
| 90560-20018 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.6 |
1 | ||
| 90560-20012 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.0 |
1 | ||
| 90560-20017 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.5 |
1 | ||
| 90560-20011 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=0.9 |
1 | ||
| 90560-20013 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.1 |
1 | ||
| 90560-20019 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.7 |
1 | ||
| 90560-20016 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.4 |
1 | ||
| 90560-20014 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV T=1.2 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93104 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97103-06304 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97103-06304 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 95161-10522 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 38525-93001 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV FR |
1 | ||
| 90560-20009 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV RR |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 38525-93001 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV FR |
1 | ||
| 90560-20009 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV RR |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93104 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93102 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93103 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93100 |
LY60..(ST,WT2)..IV;LY60..15T..WT1..IV |
1 | ||
| Common parts | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-50820 | ||||
| 91611-60825 | ||||
| 94110-40800 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
