LY60-MDBJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

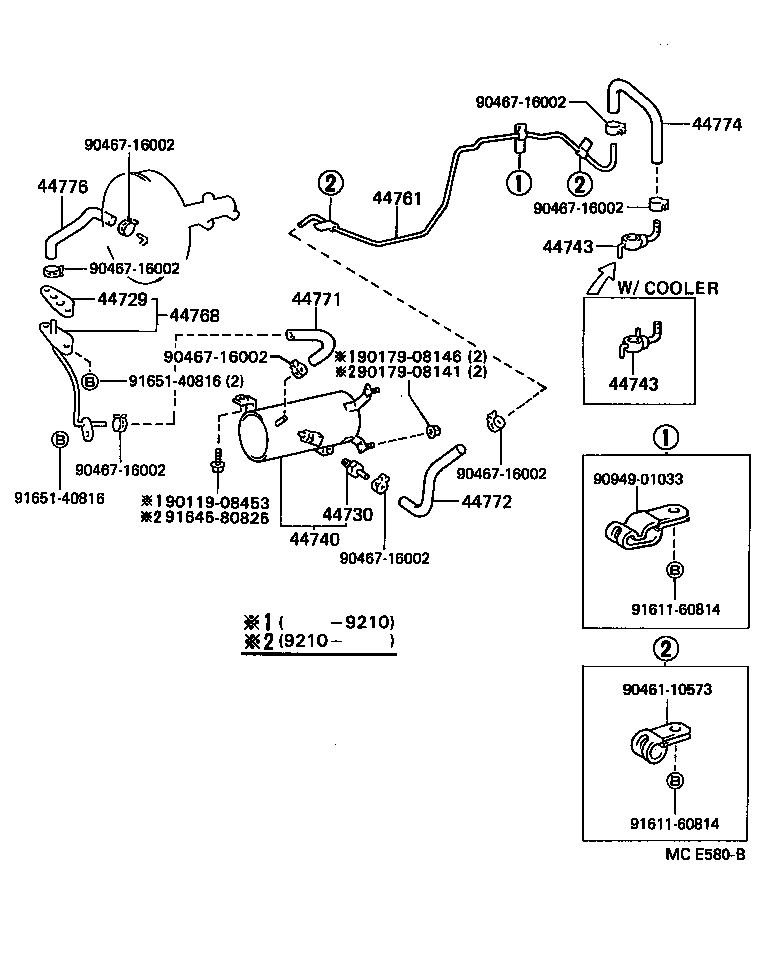

ILLUST NO. 2 OF 2(8708- )LY5#,6#

Click highlighted areas on diagram

diagram 44729 44730 44740 44743 44743 44761 44768 44771 44772 44774 44776 9011908453 9017908141 9017908146 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9164580825 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LY5#,6#,YY5#,61

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LY5#,6#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-25050

LY5#,6#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LY5#,6#

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09071

LY5#,6#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LY5#,6#

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09071

LY5#,6#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25060

LY5#,6#

 1
44768 - TUBE, BOOSTER VACUUM
44768-36070

LY5#,6#,YY5#,61

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25040

LY5#,6#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-25030

LY5#,6#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26110

LY5#,6#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

LY5#,6#,YY5#,61

 1
Common parts
90119-08453
90179-08141
90179-08146
90461-10573
90467-16002
90949-01033
91611-60814
91645-80825
91651-40816

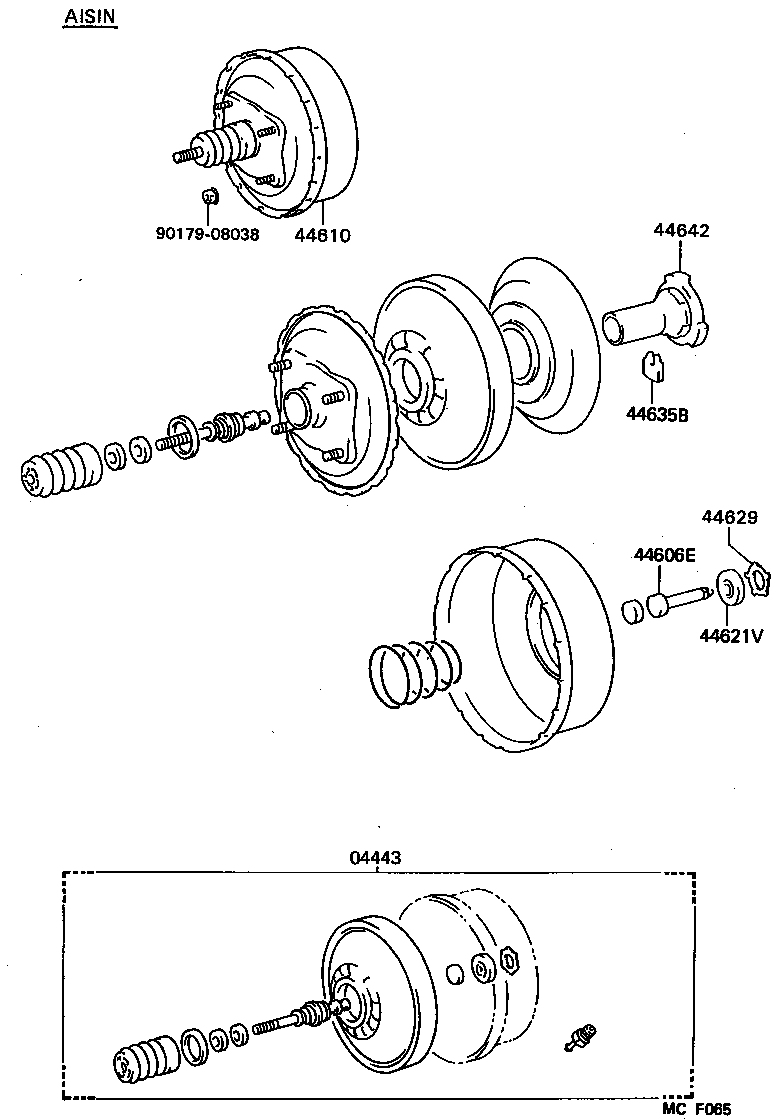

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25140

LY50..15T..ST..IV;LY50..(10T,15T)..ST..CBU;LY51,6#..(T3,T4,TW)..(ST,WT2)

 1
44610 - BOOSTER ASSY, BRAKE
44610-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25140

LY50..15T..ST..IV;LY50..(10T,15T)..ST..CBU;LY51,6#..(T3,T4,TW)..(ST,WT2)

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-36220

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44610 - BOOSTER ASSY, BRAKE
44610-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-36220

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44647A - ROD, BOOSTER PISTON
44647-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
44673A - BODY, BOOSTER VALVE
44673-25150

LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)

 1
Common parts
90179-08038
90179-08146
