LY60-MDBJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

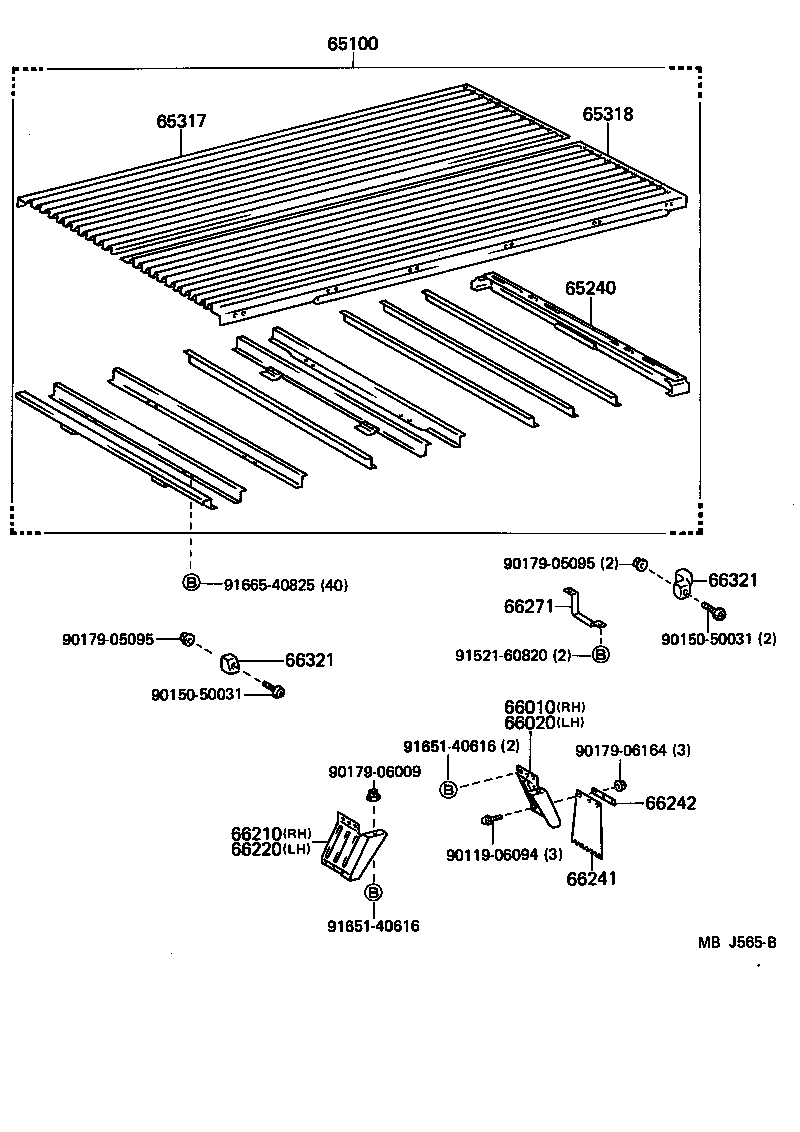

ILLUST NO. 1 OF 2(8508- )T3..TS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95L01 |
LY60,YY61..TS..15T..ST |
1 | ||
| 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL | ||||
| 65240-95A05 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-95037 |
LY60,YY61..TS..15T..ST |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95037 |
LY60,YY61..TS..15T |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66205-95011 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66206-95011 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66010-95017 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66020-95017 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 66241 - MUDGUARD, REAR | ||||
| 76625-95010 |
LY50,60,YY50,61..TOY..TS..ST |
2 | ||
| 66242 - PLATE, REAR MUDGUARD SET RETAINER | ||||
| 66242-95012 |
LY50,60,YY50,61..TS..ST..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95018 |
LY50,60,YY50,61..T3..TS |
1 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95017 |
LY50,60,YY5#,61..(T2,T3)..TS TAIL |
2 | ||
| 66331-95010 |
LY50,60,YY5#,61..(T2,T3)..TS SIDE,FR |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95017 |
LY50,60,YY5#,61..(T2,T3)..TS TAIL |
2 | ||
| 66331-95010 |
LY50,60,YY5#,61..(T2,T3)..TS SIDE,FR |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90150-50031 | ||||
| 90179-05095 | ||||
| 90179-06009 | ||||
| 90179-06164 | ||||
| 91521-60820 | ||||
| 91651-40616 | ||||
| 91665-40825 | ||||

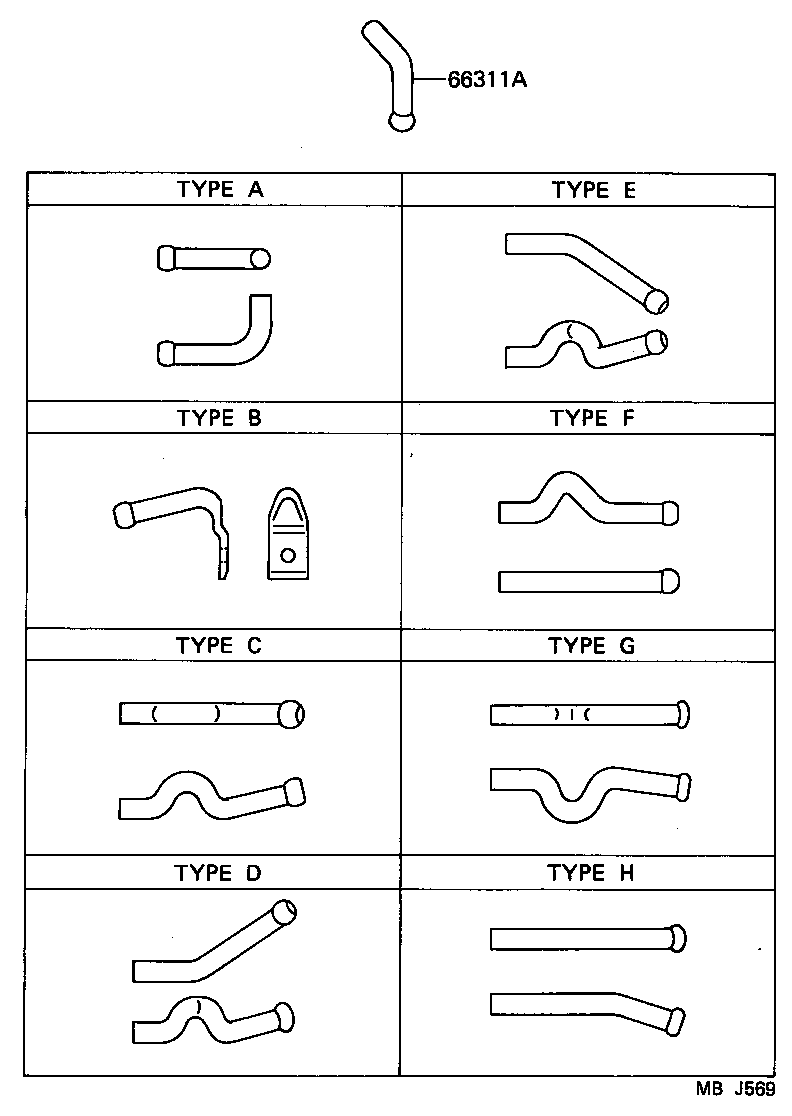

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
