LY60-MDB3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

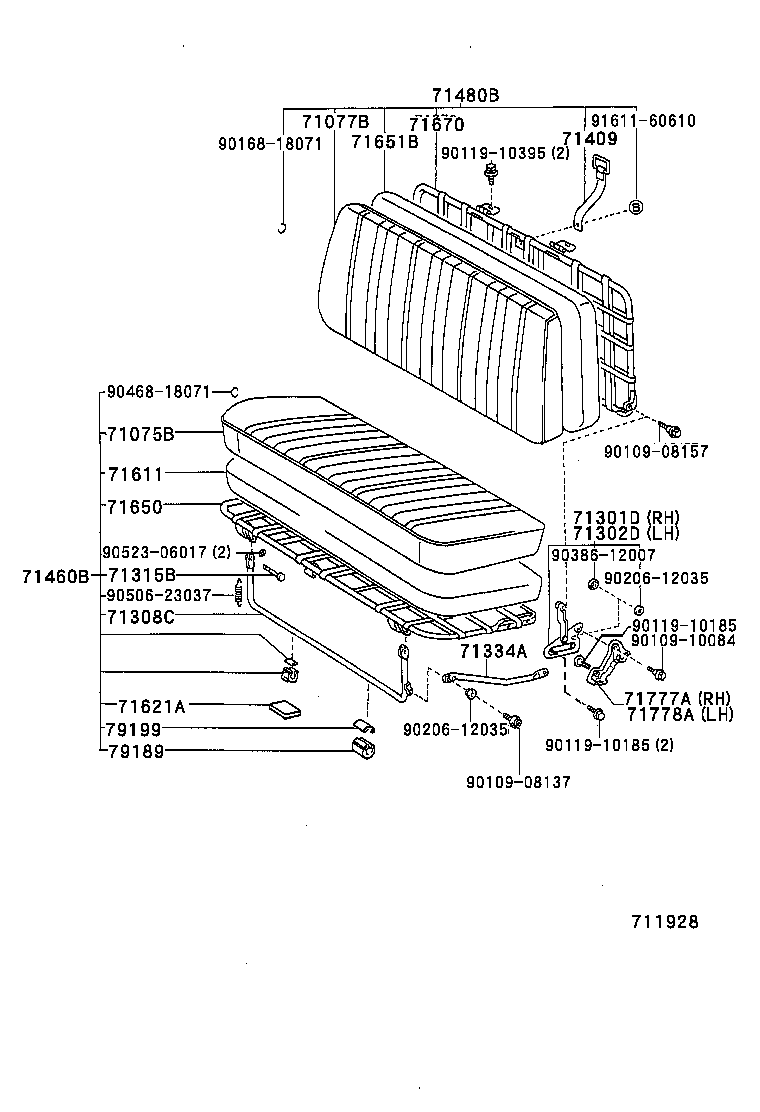

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71308C 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 79189 79199 9010908137 9010908157 9010910084 9011910185 9011910185 9011910395 9016818071 9020612035 9020612035 9038612007 9046818071 9050623037 9052306017 9161160610
Part # Description Qty Price
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10395
90168-18071
90206-12035
90386-12007
90468-18071
90506-23037
90523-06017
91611-60610

(8708- )T1,T2,T3,T4

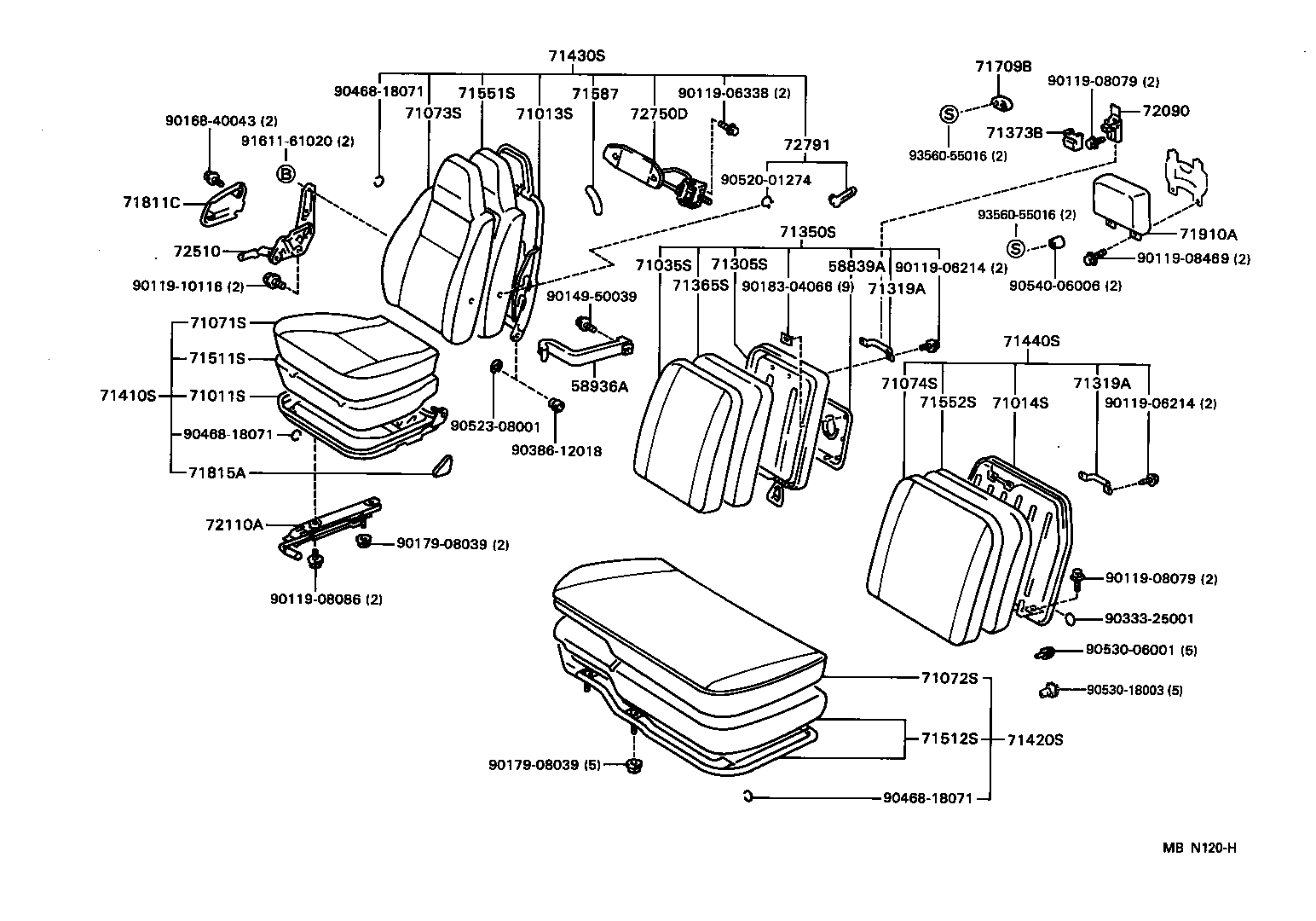

Click highlighted areas on diagram

diagram 58839A 58936A 71011S 71013S 71014S 71035S 71071S 71072S 71073S 71074S 71305S 71319A 71319A 71350S 71365S 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71709B 71811C 71815A 71910A 72090 72110A 72510 72750D 72791 9011906214 9011906214 9011906338 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9018304066 9033325001 9038612018 9046818071 9046818071 9046818071 9052001274 9052308001 9053006001 9053018003 9054006006 9161161020 9356055016 9356055016
Part # Description Qty Price
58839A - COVER, CONSOLE BOX HOLE
58839-9540001

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BLACK,TRIM4#

 1
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570006

LY5#,6#,YY5#,61..DYN

DARK BROWN,TRIM4#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95417

LY5#,6#,YY52,61..15T

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71011-95414

LY5#,6#,YY5#,61

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95413

LY5#,6#,YY5#,61

 1
71013-95412

LY5#,6#,YY52,61..15T

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541701

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BLACK,TRIM4#

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-9540006

LY50,60,YY5#,61..DYN..(T1,T2,T3,T4)

ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71095-9540306

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9547006

LY5#,6#,YY52,61..DYN..15T

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BROWN,TRIM4#

 1
71071-95B0106

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

DARK BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9547306

LY50,60,YY5#,61..DYN

ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71072-9547906

LY50,60..DYN..15T

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71072-9548506

LY50,60,YY5#,61..DYN

BROWN,TRIM4#

 1
71072-95B3406

LY50,60..DYN..15T

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71072-95B3006

LY50,60,YY5#,61..DYN

ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71072-95B0106

LY50,60..DYN..15T

ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9548306

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 1
71073-9547806

LY5#,6#,YY52,61..DYN..15T

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BROWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9548906

LY50,60,YY5#,61..DYN..(T1,T2,T3,T4)

ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71074-95B2906

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-9540001

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BLACK,TRIM4#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95402

LY5#,6#,YY5#,61..T1,T2,T3,T4

 2
71319A - STRIKER, FRONT SEAT BACK
71319-95402

LY5#,6#,YY5#,61..T1,T2,T3,T4

 2
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-9540506

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

***,BROWN,TRIM4#

 1
71350-9540206

LY50,60,YY5#,61..DYN..(T1,T2,T3,T4)

***,ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71365S - PAD, CENTER SEAT BACK
71365-95400

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540006

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9546206

LY5#,6#,YY52,61..DYN..15T

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BROWN,TRIM4#

 1
71410-9545606

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

***,BROWN,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9545706

LY50,60,YY5#,61..DYN

***,ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71420-9546306

LY50,60..DYN..15T

***,ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71420-9546906

LY50,60,YY5#,61..DYN

***,BROWN,TRIM4#

 1
71420-95B1606

LY50,60,YY5#,61..DYN

***,ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71420-9547706

LY50,60..DYN..15T

***,ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71420-95B2006

LY50,60..DYN..15T

***,ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ),BROWN,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9546006

LY5#,6#,YY52,61..DYN..15T

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BROWN,TRIM4#

 1
71430-9546706

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

***,BROWN,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9546006

LY50,60,YY5#,61..DYN..(T1,T2,T3,T4)

***,ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4#

 1
71440-95B0106

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

***,BROWN,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95404

LY5#,6#,YY52,61..15T

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71511-95400

LY5#,6#,YY5#,61

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05

LY5#,6#,YY5#,61..DYN

 1
71502-95401

LY5#,6#..TOY..15T;LY5#,6#..DYN..T3..15T

ｱﾘ(ｼﾞﾖｼﾕｾｷ ｽﾗｲﾄﾞﾄﾞｱ)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

LY5#,6#,YY5#,61

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95407

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00

LY5#,6#,YY52,61..15T

 2
71709B - CUSHION SUB-ASSY, SEAT SUPPORT
71709-95400

LY5#,6#,YY5#,61..T1,T2,T3,T4

左側

 1
71709-95401

LY5#,6#,YY5#,61..T1,T2,T3,T4

右側

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0106

LY5#,6#,YY5#,61..DYN

BROWN,TRIM4#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0016

LY5#,6#,YY5#,61..DYN

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540006

LY50,60,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006

LY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)

BROWN,TRIM4#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

LY5#,6#,YY5#,61

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0006

LY5#,6#,YY5#,61..DYN

BROWN,TRIM4#

 1
Common parts
90119-06214
90119-06338
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90183-04066
90333-25001
90386-12018
90468-18071
90520-01274
90523-08001
90530-06001
90530-18003
90540-06006
91611-61020
93560-55016

(8708- )

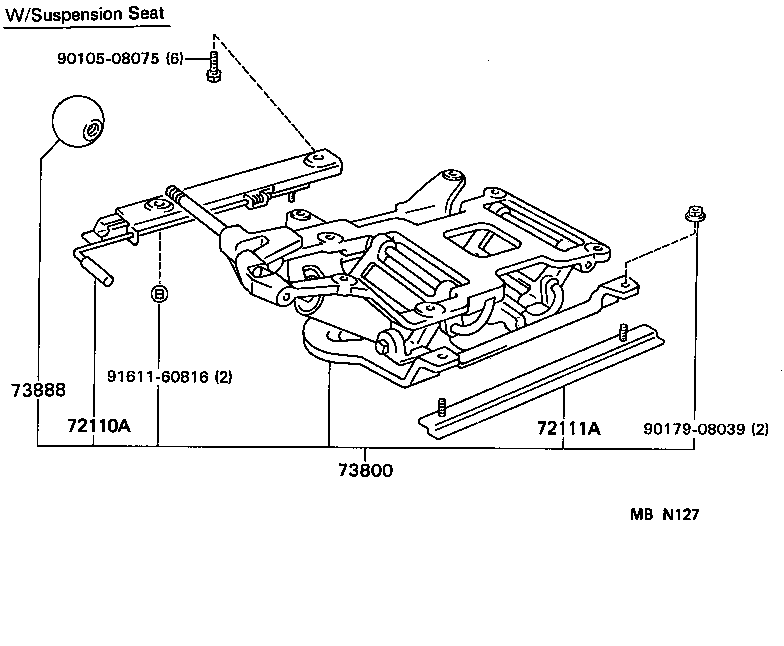

Click highlighted areas on diagram

diagram 72110A 72111A 73800 73888 9010508075 9017908039 9161160816
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

LY5#,6#,YY5#,61

 1
72111A - RAIL, FRONT INNER SEAT TRACK, UPPER
72113-95402

LY5#,6#,YY52,61..15T

 1
73800 - SUSPENSION ASSY, SEAT, RH
73800-95402

LY5#,6#,YY52,61..15T

 1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-95400

LY5#,6#,YY52,61..15T

 1
Common parts
90105-08075
90179-08039
91611-60816
