LY60-MDB3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808) ; (8808-9008)2Y,3Y

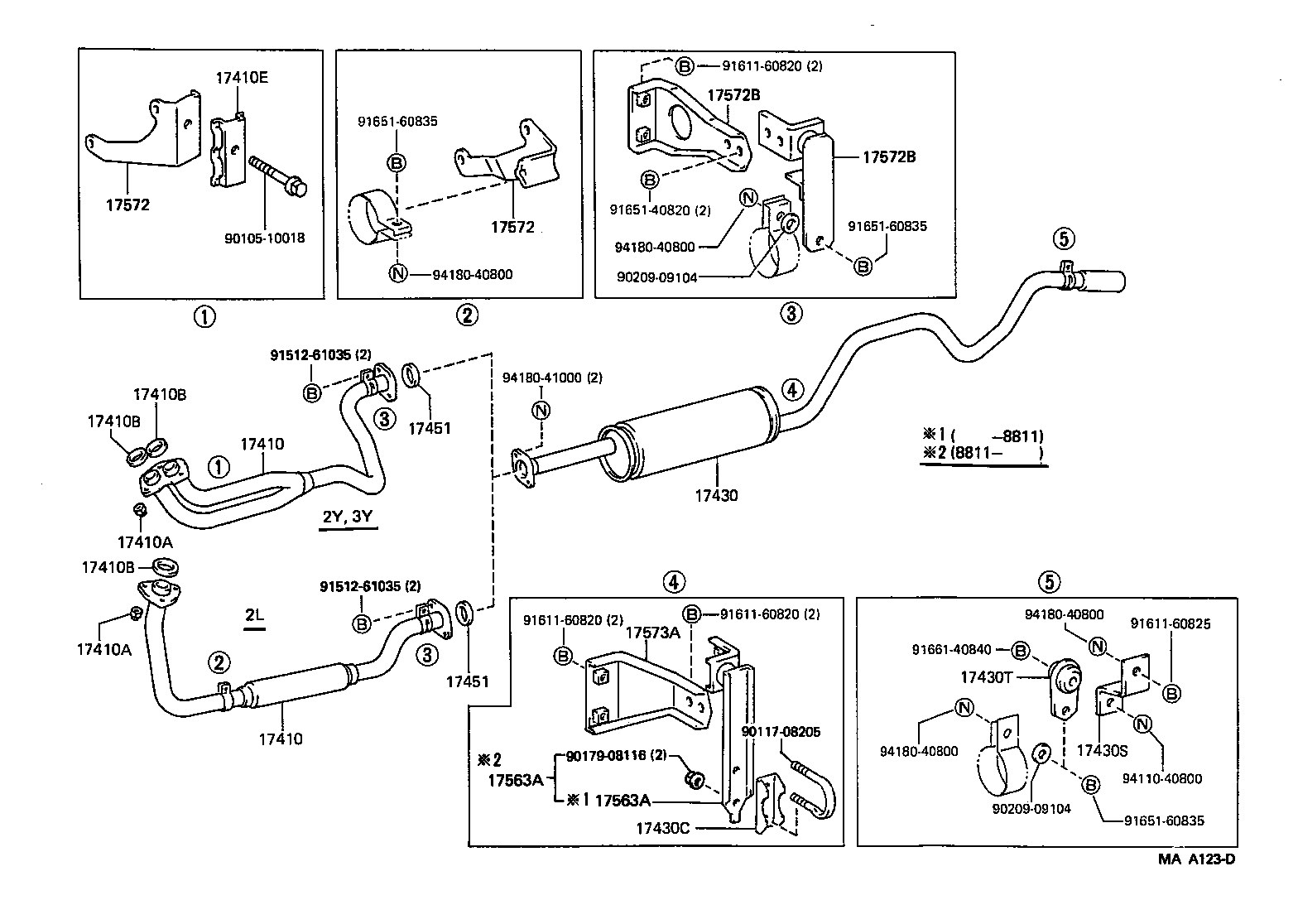

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410E 17430 17430C 17430S 17430T 17451 17451 17563A 17563A 17572 17572 17572B 17572B 17573A 9010510018 9011708205 9017908116 9020909104 9020909104 9151261035 9151261035 9161160820 9161160820 9161160820 9161160825 9165140820 9165160835 9165160835 9165160835 9166140840 9411040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54630

2L..LY50,60

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54630

2L..LY50,60

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,3L,2Y,3Y#..LY5#,6#,YY5#,61

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,3L,2Y,3Y#..LY5#,6#,YY5#,61

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

2L..LY50,60

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2L..LY50,60

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2L..LY50,60

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54710

2L,3Y..LY60,YY61

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90917-04021

2L,2Y,3Y..LY50,60,YY5#,61

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-54050

2L,2Y,3Y..LY50,60,YY5#,61

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2L,2Y,3Y..LY50,60,YY5#,61

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2L,2Y,3Y..LY50,60,YY5#,61

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-54060

2L,2Y,3Y..LY50,60,YY5#,61

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-54060

2L,2Y,3Y..LY50,60,YY5#,61

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54280

2L..LY50,60

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54280

2L..LY50,60

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54140

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

BODY SIDE

 1
17562-54140

2L,2Y,3Y..LY50,60,YY5#,61

PIPE SIDE

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54140

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

BODY SIDE

 1
17562-54140

2L,2Y,3Y..LY50,60,YY5#,61

PIPE SIDE

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-54050

2L,2Y,3Y..LY50,60,YY5#,61

 1
Common parts
90105-10018
90117-08205
90179-08116
90209-09104
91512-61035
91611-60820
91611-60825
91651-40820
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000
