LY60-MDB (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

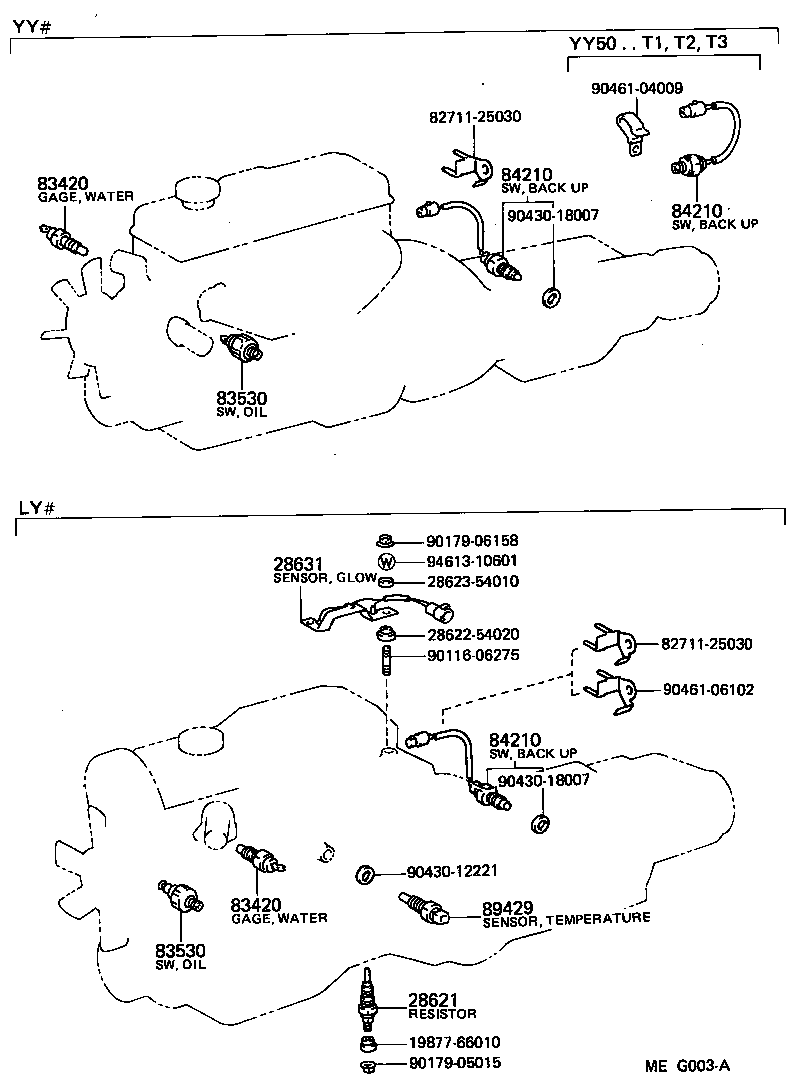

ILLUST NO. 1 OF 4(8508- )

Click highlighted areas on diagram

diagram 1987766010 28621 2862254020 2862354010 28631 8271125030 8271125030 83420 83420 83530 83530 84210 84210 84210 89429 9011606275 9017905015 9017906158 9043012221 9043018007 9043018007 9046104009 9046106102 9461310601
Part # Description Qty Price
28621 - RESISTOR, GLOW PLUG
28621-54031

2L..LY50,60

 1
28631 - SENSOR, GLOW PLUG CURRENT
28631-54040

2L..LY50,60

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LY50,60,YY5#,61

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LY50,60,YY5#,61

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

LY50,60

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

LY50,60

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

LY50,60,YY52,61

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

LY50,60,YY52,61

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

LY50,60,YY52,61

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LY50,60

 1
Common parts
19877-66010
28622-54020
28623-54010
82711-25030
90116-06275
90179-05015
90179-06158
90430-12221
90430-18007
90461-04009
90461-06102
94613-10601

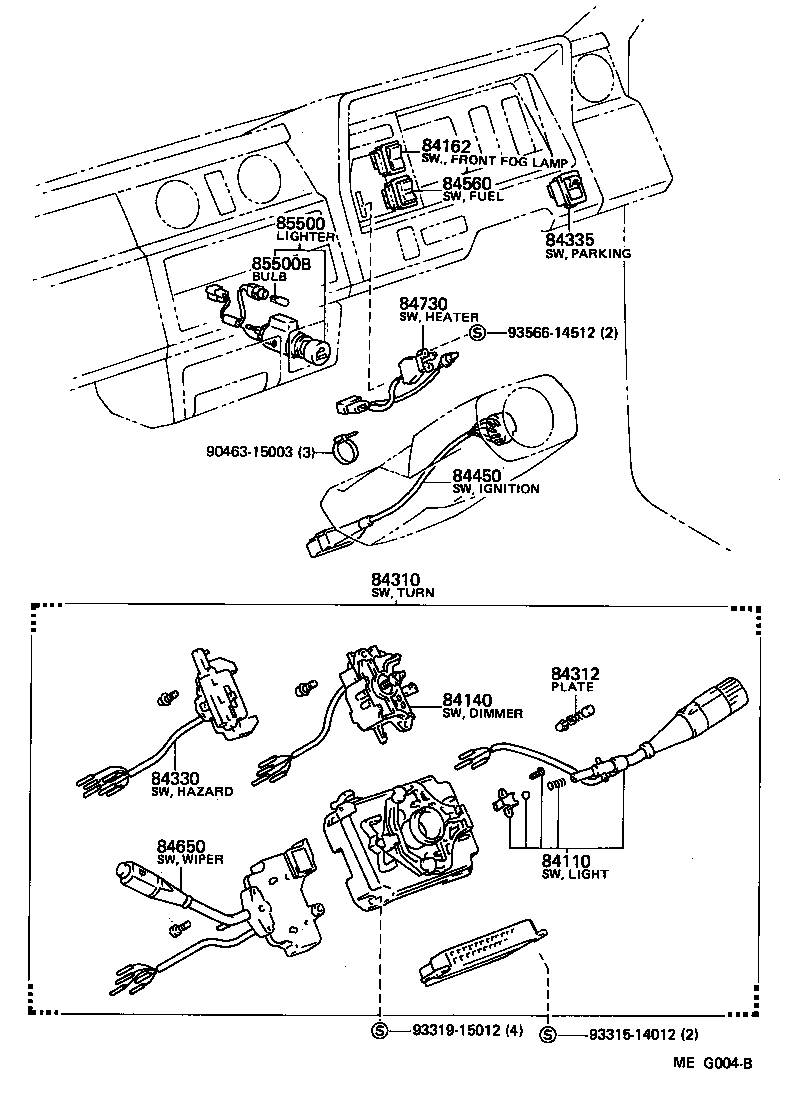

ILLUST NO. 2 OF 4(8508- )

Click highlighted areas on diagram

diagram 84110 84140 84162 84310 84312 84330 84335 84450 84560 84650 84730 85500 85500B 9046315003 9331514012 9331915012 9356614512
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-39305

LY50,60,YY5#,61

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-39145

LY50,60,YY5#,61

 1
84162 - SWITCH, FRONT FOG LAMP
84160-95400

LY50,60,YY5#,61

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-36310

LY50,60,YY5#,61

 1
84312 - PLATE, HORN CONTACT
84312-20011

LY50,60,YY5#,61

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-39265

LY50,60,YY5#,61

 1
84335 - SWITCH ASSY, PARKING LAMP
84330-95400

LY50,60,YY5#,61

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-36030

LY50,60,YY5#,61

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-39545

LY50,60,YY5#,61

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-95404

LY50,60,YY5#,61

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-95403

LY50,60,YY5#,61

W/ILLUMINATION

 1
85500-95A04

LY50,60,YY5#,61

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

LY50,60,YY5#,61

14V 1.4W,12V 1.4W

 1
Common parts
90463-15003
93315-14012
93319-15012
93566-14512

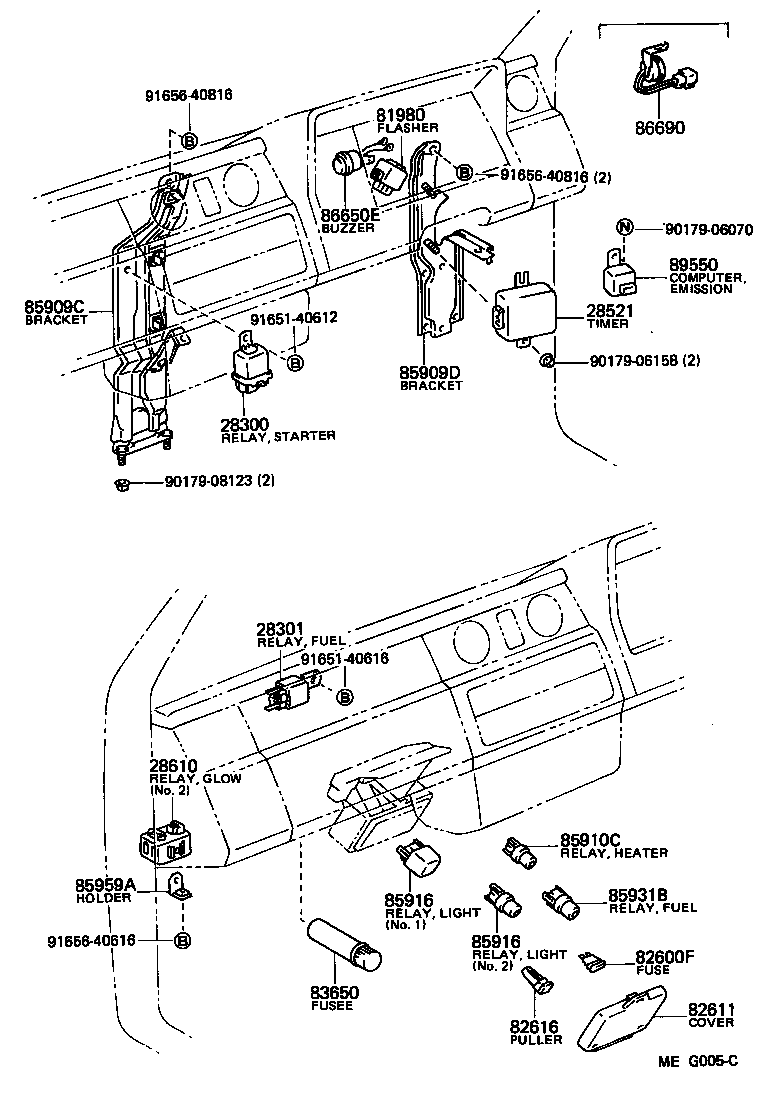

ILLUST NO. 3 OF 4(8508- )

Click highlighted areas on diagram

diagram 28300 28301 28521 28610 81980 82600F 82611 82616 83650 85909C 85909D 85910C 85916 85916 85931B 85959A 86650E 86690 89550 9017906070 9017906158 9017908123 9165140612 9165140616 9165640616 9165640816 9165640816
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-48010

2L..LY50,60

 1
28521 - TIMER, PREHEATING
28521-54181

2L..LY50,60

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54021

2L..LY50,60

NO.2

 1
28610-68030

2L..LY50,60

NO.1

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-16010

LY50,60,YY5#,61

 1
81980-22070

LY50,60,YY5#,61

 1
82600F - FUSE, FUSE BLOCK
90982-09004

LY50,60,YY5#,61

20A,黄,20A

 2
90982-09003

LY50,60,YY5#,61

15A,15A

 8
90982-09005

LY50,60,YY5#,61

7.5A,7.5A

 4
90982-09002

LY50,60,YY5#,61

10A,10A

 1
82611 - COVER, FUSE BLOCK
82611-95011

LY50,60,YY5#,61

 1
82611-95010

LY50,60,YY5#,61

 1
82616 - PULLER, FUSE
82616-12010

LY50,60,YY5#,61

 1
83650 - FUSEE
90986-01003

LY50,60,YY5#,61

 1
85909C - BRACKET SUB-ASSY, RELAY, NO.1
85909-95400

LY60,YY61;LY50,YY52..10T,15T

 1
85909D - BRACKET SUB-ASSY, RELAY, NO.2
85907-95400

LY50,60,YY5#,61

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004

LY50,60

 1
85916 - RELAY, LIGHT CONTROL
90987-02006

LY50,60,YY5#,61

NO.1

 1
90987-01003

LY50,60,YY5#,61

NO.2

 1
85916 - RELAY, LIGHT CONTROL
90987-02006

LY50,60,YY5#,61

NO.1

 1
90987-01003

LY50,60,YY5#,61

NO.2

 1
85931B - RELAY, FUEL HEATER
90987-02004

LY50,60

 1
85959A - HOLDER, RELAY
85959-36010

LY50,60

 1
86650E - BUZZER ASSY
86650-95A06

LY50,60

 1
86690 - BUZZER ASSY, SPEED INDICATOR
86650-95J00

LY60..15T..(ST,WT1)..CBU

 1
Common parts
90179-06070
90179-06158
90179-08123
91651-40612
91651-40616
91656-40616
91656-40816

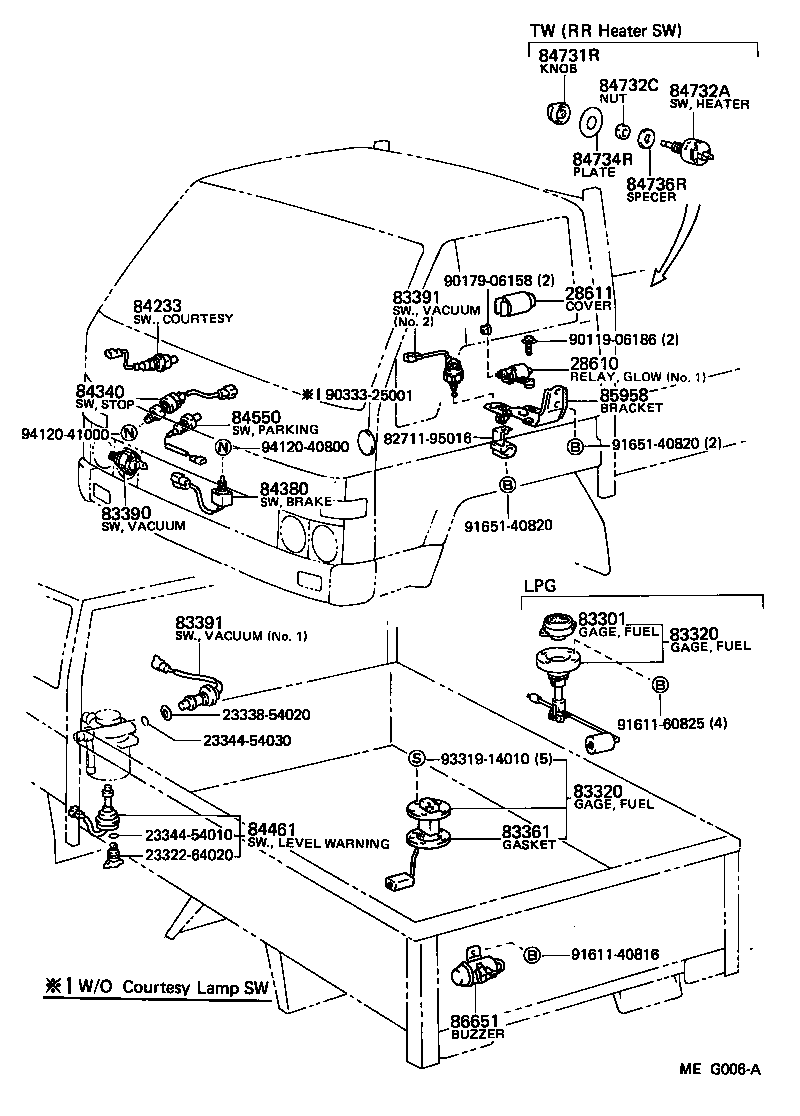

ILLUST NO. 4 OF 4(8508- )

Click highlighted areas on diagram

diagram 2332264020 2333854020 2334454010 2334454030 28610 28611 8271195016 83301 83320 83320 83361 83390 83391 83391 84233 84340 84380 84461 84550 84731R 84732A 84732C 84734R 84736R 85958 86651 9011906186 9017906158 9033325001 9161140816 9161160825 9165140820 9165140820 9331914010 9412040800 9412041000
Part # Description Qty Price
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54021

2L..LY50,60

NO.2

 1
28610-68030

2L..LY50,60

NO.1

 1
28611 - COVER, GLOW PLUG RELAY
28611-58020

2L..LY50,60

 1
83320 - GAGE ASSY, FUEL SENDER
83320-39565

LY50,60,YY5#,61..CBR,DSL

 1
83320 - GAGE ASSY, FUEL SENDER
83320-39565

LY50,60,YY5#,61..CBR,DSL

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LY50,60,YY5#,61..CBR,DSL

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-60010

LY50,60

MARK=VS

 1
83391 - SWITCH, VACUUM
83391-32020

LY50,60

NO.1

 1
83391 - SWITCH, VACUUM
83391-32020

LY50,60

NO.1

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-20080

LY50,60,YY5#,61

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LY50,60,YY5#,61

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-35010

LY60,YY61;LY50,YY5#..10T,15T

 1
84461 - SWITCH, LEVEL WARNING
84461-35030

LY50,60

 1
84461-14030

LY50,60

 1
86651 - BUZZER ASSY, BACK
86650-95A04

LY50,60,YY5#,61

 1
Common parts
23322-64020
23338-54020
23344-54010
23344-54030
82711-95016
90119-06186
90179-06158
90333-25001
91611-40816
91611-60825
91651-40820
93319-14010
94120-40800
94120-41000

ILLUST NO. 2 OF 4(8708-8808)

Click highlighted areas on diagram

diagram 84110 84140 84162 84162B 84310 84312 84329 84330 84330 84330B 84450 84650 84730 84730B 84930 85500 9046312570 9046313003 9046315003 9046315003 9331514012 9331915012 9356614512
Part # Description Qty Price
Common parts
90463-12570
90463-13003
90463-15003
93315-14012
93319-15012
93566-14512
