LY60-MDB (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

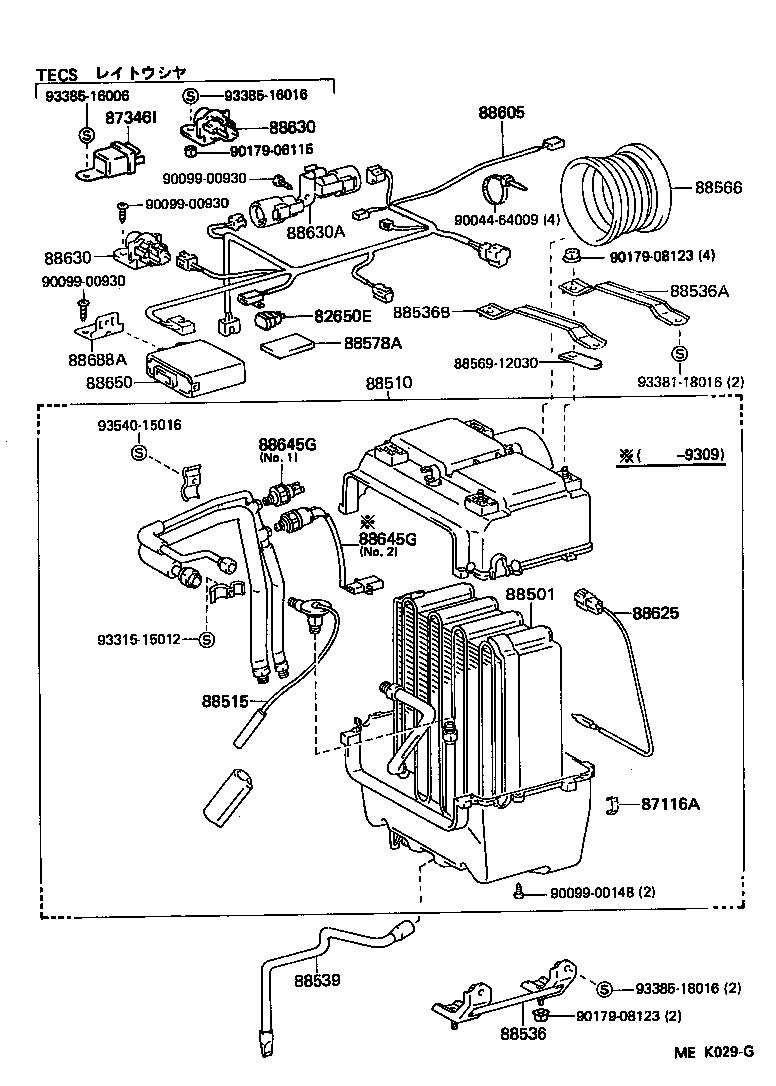

Click highlighted areas on diagram

diagram 82650E 87116A 87346I 88501 88510 88515 88536 88536A 88536B 88539 88566 8856912030 88578A 88605 88625 88630 88630 88630A 88645G 88645G 88650 88688A 9004464009 9009900148 9009900930 9009900930 9009900930 9017906115 9017908123 9017908123 9331515012 9338118016 9338516006 9338516016 9338518016 9354015016
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 6
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95403

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88510 - UNIT ASSY, COOLER
88510-95405

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95403

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95404

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95405

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95409

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88566 - DUCT, COOLER AIR, NO.1
88566-95407

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-95400

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95405

LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95A00

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88630 - RELAY ASSY, COOLER
88630-60020

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88630 - RELAY ASSY, COOLER
88630-60020

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88630A - RELAY ASSY, COOLER
88630-95401

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88645G - SWITCH, PRESSURE
88645-95J00

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

NO.1

 1
88645-17010

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

NO.2

 1
88645G - SWITCH, PRESSURE
88645-95J00

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

NO.1

 1
88645-17010

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95425

YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV

 1
Common parts
88569-12030
90044-64009
90099-00148
90099-00930
90179-06115
90179-08123
93315-15012
93381-18016
93385-16006
93385-16016
93385-18016
93540-15016
