Toyota Toyoace/dyna LY60 ROOF PANEL & BACK PANEL

Manufacturers Home
Toyota
JP
TOYOACE/DYNA
LY60-MDB (1987)
6153 - ROOF PANEL & BACK PANEL

LY60-MDB (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988

Engine 2L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

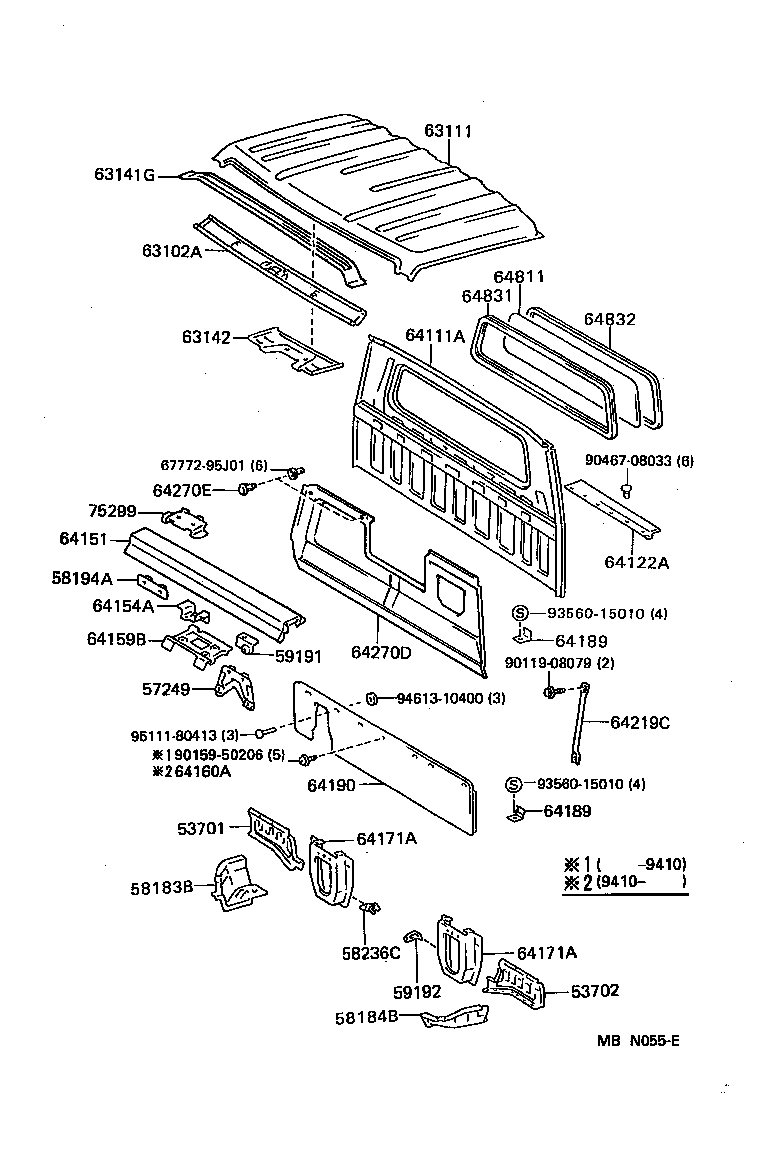

(8708- )T1,T2,T3,T4

Click highlighted areas on diagram

Part #	Description	Period	Qty
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53717-95A03	LY50,60,YY5#,61..T1,T2,T3,T4	08/1987 - 08/1988	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53718-95A02	LY50,60,YY5#,61..T1,T2,T3,T4	08/1987 - 08/1988	1
58183B - REINFORCEMENT, REAR MOUNTING, RH
58183-95405	LY50,60,YY5#,61	08/1987 - 08/1988	1
58184B - REINFORCEMENT, REAR MOUNTING, LH
58184-95404	LY50,60,YY5#,61	08/1987 - 08/1988	1
58236C - BRACKET, CLUTCH TUBE
58236-95A00	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 05/1995	1
59192 - BRACKET, NOISE SHUTTER, NO.2
59192-95A00	LY5#,6#..T1,T2,T3,T4	08/1987 - 05/1995	1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63132-95418	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
63132-95420	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 08/1988	1
63111 - PANEL, ROOF
63111-95410	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 08/1988	1
63111-95409	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 04/1990	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95400	LY5#,6#,YY52,61..T3..15T	08/1987 - 09/1993	1
64111A - PANEL, BACK
64100-95040	LY50,60,YY5#,61..T1,T2,T3,T4	08/1987 - 08/1988	1
64122A - BAFFLE, DUST REAR BODY
64122-95A03	LY5#,6#,YY5#,61..T3	08/1987 - 10/1992	1
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64171-95408	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 07/1991	2
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64171-95408	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 07/1991	2
64189 - CLAMP, BACK PANEL SILENCER
64189-95400	LY5#,6#..T1,T2,T3,T4	08/1987 - 05/1995	4
64189 - CLAMP, BACK PANEL SILENCER
64189-95400	LY5#,6#..T1,T2,T3,T4	08/1987 - 05/1995	4
64190 - SILENCER ASSY, BACK PANEL
64190-95015	LY5#,6#..T1,T2,T3,T4	08/1987 - 05/1995	1
64811 - GLASS, BACK WINDOW
64811-95409	LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5	08/1987 - 09/1991	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95406	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 06/1994	1
Common parts
67772-95J01
90119-08079
90159-50206
90467-08033
93560-15010
94613-10400
95111-80413

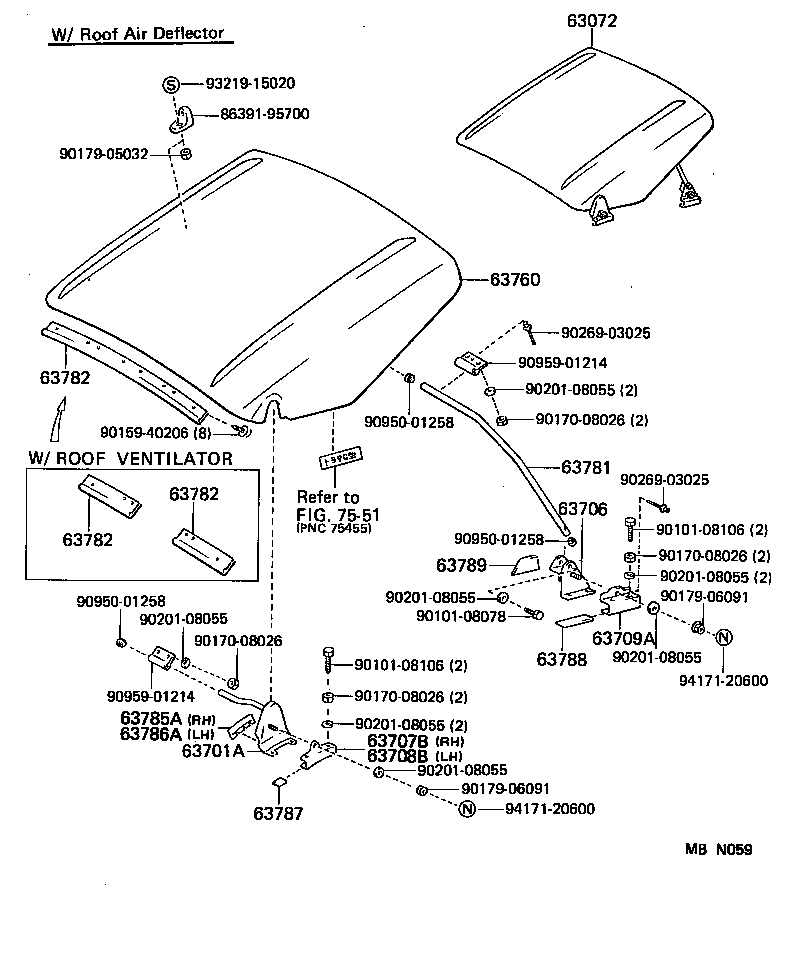

(8708- )T1,T2,T3,T4

Click highlighted areas on diagram

Part #	Description	Period	Qty
63072 - DEFLECTOR SET, ROOF AIR
63072-95401	LY50,60,YY52,61..T3..15T ***,ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 06/1988	1
63072-95400	LY50,YY51..T2;LY50..15T..ST;LY60,YY52,61..15T ***	08/1987 - 06/1988	1
63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT
63701-95400	LY5#,6#,YY5#,61..T1,T3 右側	08/1987 - 09/1993	1
63702-95400	LY5#,6#,YY5#,61..T1,T3 左側	08/1987 - 09/1993	1
63706 - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR
63706-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	2
63707B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT RH
63707-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	1
63708B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT LH
63708-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	1
63709A - HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR
63709-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	2
63760 - PANEL ASSY, ROOF AIR DEFLECTOR
63760-95400	LY50,YY51..T2;LY50..15T..ST;LY60,YY52,61..15T	08/1987 - 06/1988	1
63760-95401	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 06/1988	1
63781 - STAY, ROOF AIR DEFLECTOR
63781-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	2
63782 - SEAL, ROOF AIR DEFLECTOR
63782-95400	LY50,YY51..T2;LY50..15T..ST;LY60,YY52,61..15T	08/1987 - 06/1988	1
63782-95401	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 06/1988	2
63782 - SEAL, ROOF AIR DEFLECTOR
63782-95400	LY50,YY51..T2;LY50..15T..ST;LY60,YY52,61..15T	08/1987 - 06/1988	1
63782-95401	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 06/1988	2
63782 - SEAL, ROOF AIR DEFLECTOR
63782-95400	LY50,YY51..T2;LY50..15T..ST;LY60,YY52,61..15T	08/1987 - 06/1988	1
63782-95401	LY50,60,YY52,61..T3..15T ｱﾘ(ﾙ-ﾌﾍﾞﾝﾁﾚ-ﾀ)	08/1987 - 06/1988	2
63785A - PAD, ROOF AIR DEFLECTOR, FRONT RH
63785-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	1
63786A - PAD, ROOF AIR DEFLECTOR, FRONT LH
63786-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	1
63787 - PAD, ROOF AIR DEFLECTOR, NO.1
63787-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	4
63788 - PAD, ROOF AIR DEFLECTOR, NO.2
63788-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	2
63789 - PAD, ROOF AIR DEFLECTOR, NO.3
63789-95400	LY5#,6#,YY5#,61..T1,T3	08/1987 - 09/1993	2
Common parts
86391-95700
90101-08078
90101-08106
90159-40206
90170-08026
90179-05032
90179-06091
90201-08055
90269-03025
90950-01258
90959-01214
93219-15020
94171-20600
Linked diagrams
7551

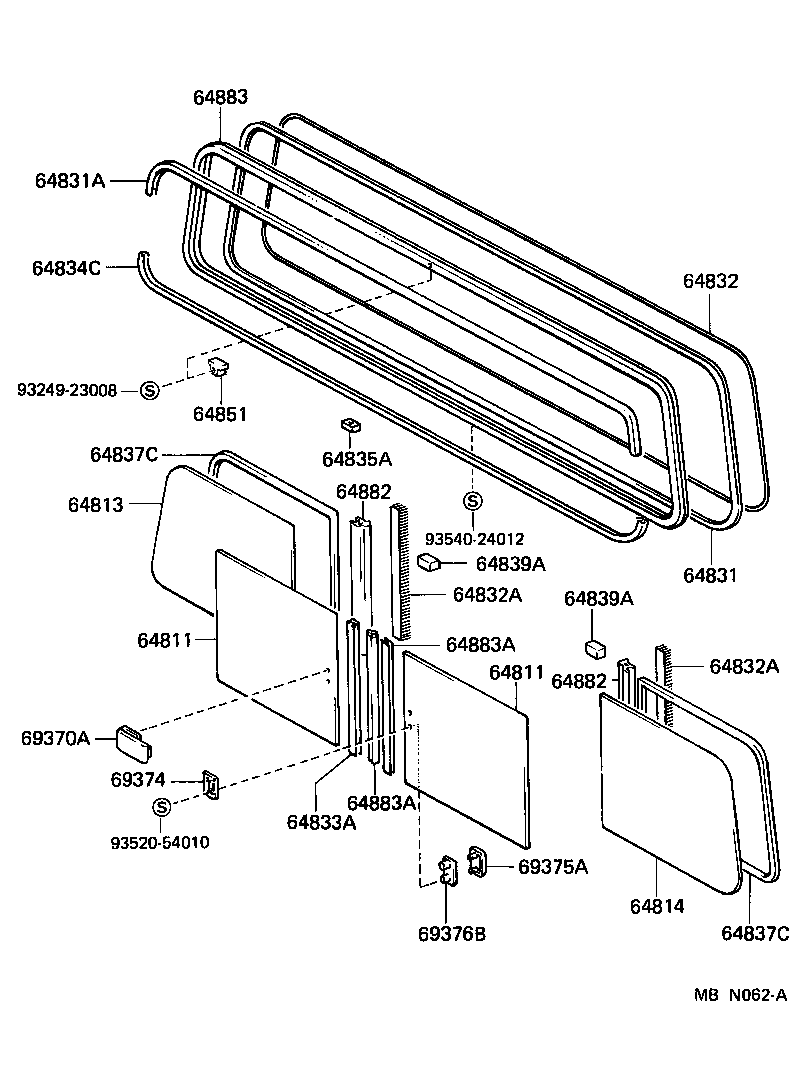

(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
64811 - GLASS, BACK WINDOW
64811-95409	LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5	08/1987 - 09/1991	1
64811 - GLASS, BACK WINDOW
64811-95409	LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5	08/1987 - 09/1991	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95406	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 06/1994	1
Common parts
93249-23008
93520-54010
93540-24012

LY60-MDB (1987)

(8708- )T1,T2,T3,T4

(8708- )T1,T2,T3,T4

(8708- )
