LY50-MDPMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

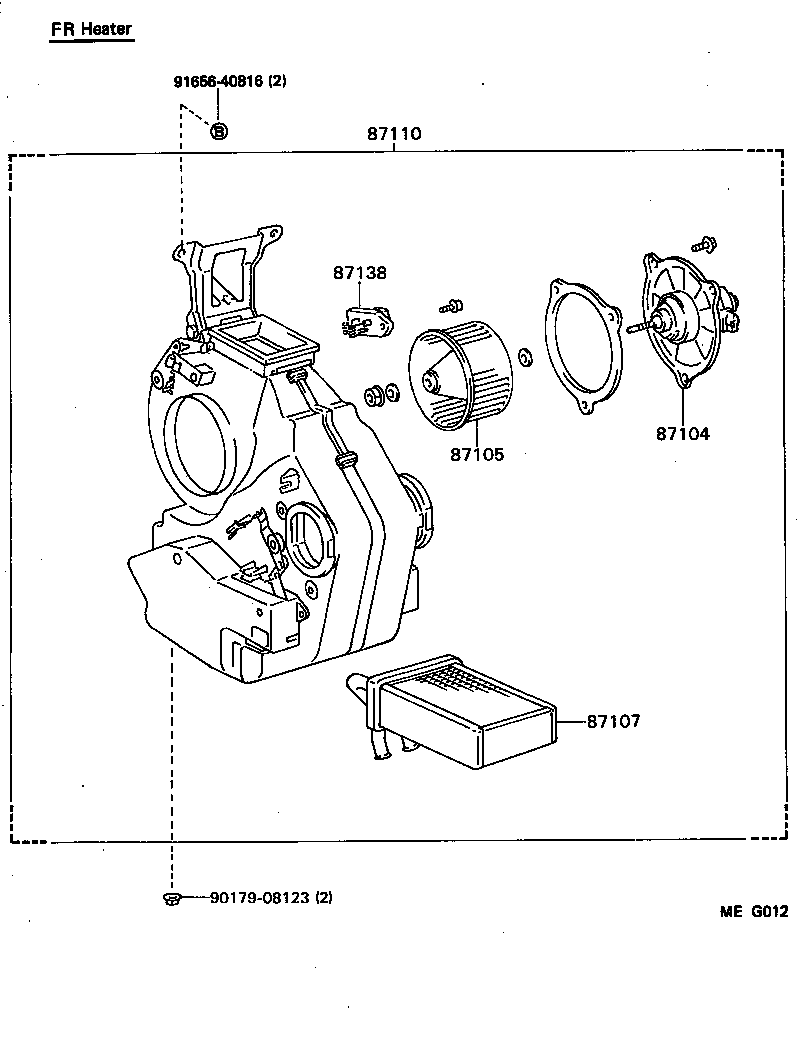

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 9017908123 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LY50,60,YY5#,61

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

LY50,60,YY5#,61

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95406

LY50,60,YY5#,61

STD TYPE

 1
87107-95407

LY50,60,YY5#,61

HEAVY TYPE

 1
87110 - HEATER ASSY
87110-95433

LY50,60,YY5#,61

HEAVY TYPE

 1
87110-95432

LY50,60,YY5#,61

STD TYPE

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

LY50,60,YY5#,61

 1
Common parts
90179-08123
91656-40816

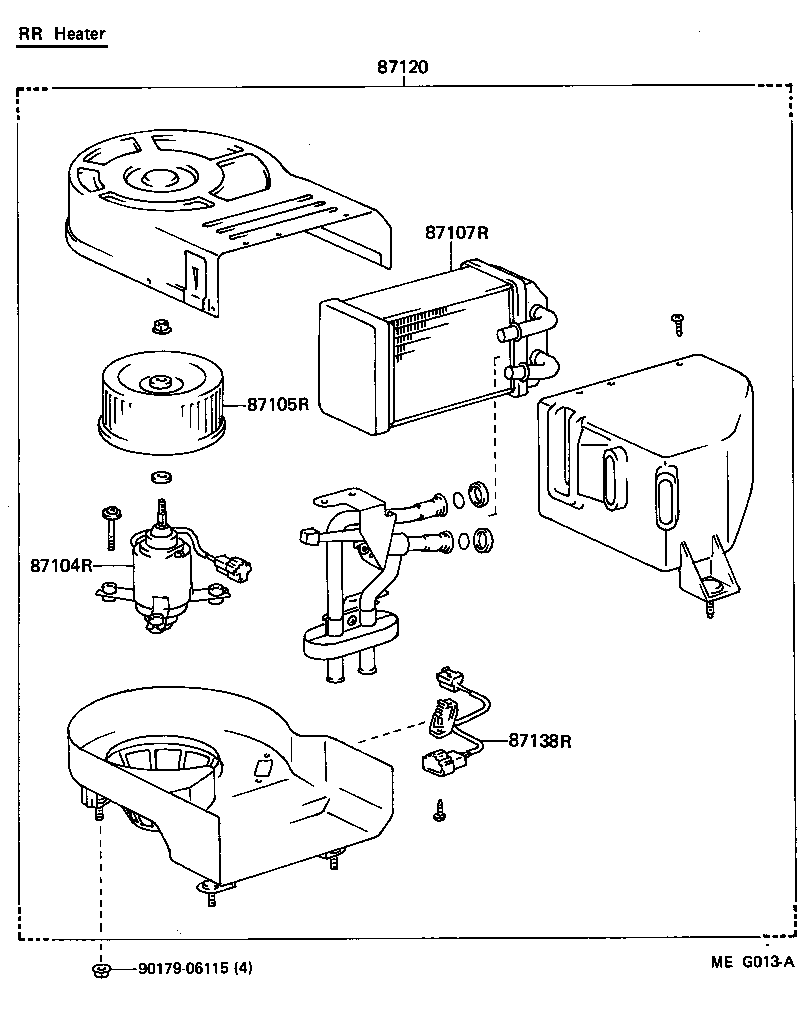

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87138R 9017906115
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

LY50,60,YY50,61..TW

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

LY50,60,YY50,61..TW

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60100

LY50,60,YY50,61..TW

 1
87120 - HEATER ASSY, REAR
87110-95029

LY50,60,YY50,61..TW

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95012

LY50,60,YY50,61..TW

 1
Common parts
90179-06115
