LY50-MDPMJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

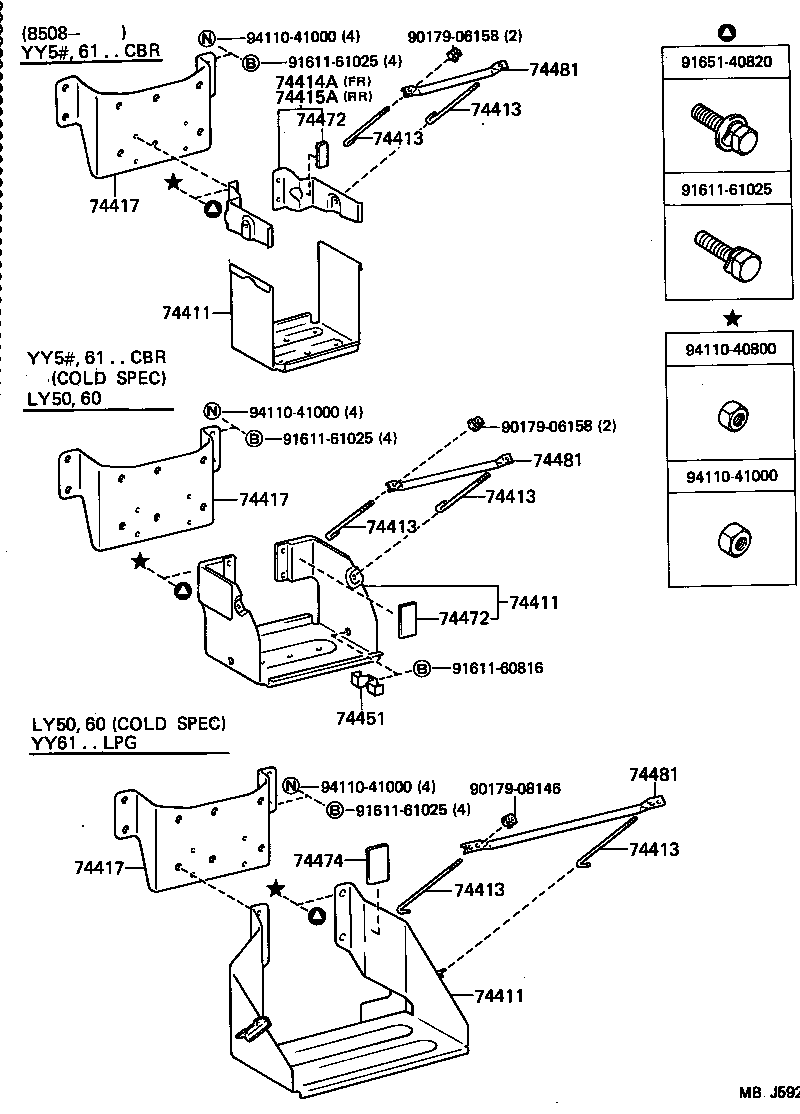

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74042-36041 |
LY50,60 COLD SPEC |
1 | ||
| 74042-25030 |
LY50,60 COLD SPEC |
1 | ||
| 74421-25020 |
LY50,60 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74042-36041 |
LY50,60 COLD SPEC |
1 | ||
| 74042-25030 |
LY50,60 COLD SPEC |
1 | ||
| 74421-25020 |
LY50,60 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74042-36041 |
LY50,60 COLD SPEC |
1 | ||
| 74042-25030 |
LY50,60 COLD SPEC |
1 | ||
| 74421-25020 |
LY50,60 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
LY50,60 |
2 | ||
| 74451-36070 |
LY50,60 COLD SPEC |
2 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25020 |
LY50,60 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25020 |
LY50,60 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25020 |
LY50,60 |
1 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
LY50,60,YY5#,61..CBR,DSL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
LY50,60,YY5#,61..CBR,DSL |
2 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
LY50,60,YY61..DSL,LPG |
2 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74453-25090 |
LY50,60 |
1 | ||
| 74453-36050 |
LY50,60 COLD SPEC |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74453-25090 |
LY50,60 |
1 | ||
| 74453-36050 |
LY50,60 COLD SPEC |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74453-25090 |
LY50,60 |
1 | ||
| 74453-36050 |
LY50,60 COLD SPEC |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
