3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

LY50-MDMJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 2L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

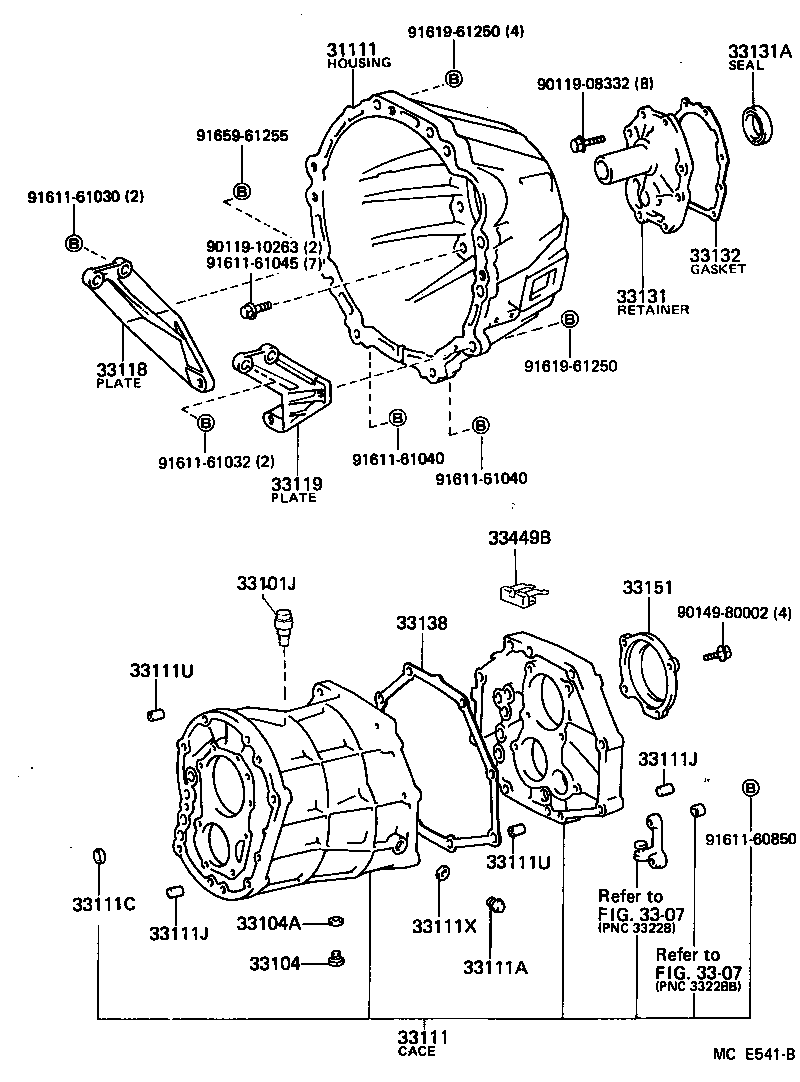

ILLUST NO. 1 OF 2(8708- )MTM

Click highlighted areas on diagram

R45#

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-22113	LY50	12/1989 - 06/1990	1
31111-22111	LY50..125	08/1987 - 08/1988	1
31111-22114	LY50	06/1990 - 05/1995	1
31111-22112	LY50	08/1988 - 12/1989	1
31111 - HOUSING, CLUTCH
31111-22113	LY50	12/1989 - 06/1990	1
31111-22111	LY50..125	08/1987 - 08/1988	1
31111-22114	LY50	06/1990 - 05/1995	1
31111-22112	LY50	08/1988 - 12/1989	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020	LY5#,6#	08/1987 - 05/1995	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020	LY5#,6#	08/1987 - 05/1995	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020	LY5#,6#	08/1987 - 05/1995	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020	LY5#,6#	08/1987 - 05/1995	1
Common parts
91611-61030
91611-61040
91611-61045
91612-61045
91619-61250
91651-61032
91651-61055
91659-61255

ILLUST NO. 2 OF 2(8708- )MTM

Click highlighted areas on diagram

R45#

Part #	Description	Period	Qty
33101J - PLUG, BREATHER
90930-03085	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90930-03085	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
90930-03085	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LY50,YY51..125	08/1987 - 08/1988	1
90341-18057	LY50,YY5#..10T,125	08/1988 - 03/1995	1
90341-18006	LY5#,61,YY52,61..MTM	03/1995 - 05/1995	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90430-18008	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
90430-18008	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
33111 - CASE, MANUAL TRANSMISSION
33101-28020	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33101-26900	LY50,YY51..125	08/1987 - 08/1988	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90341-18006	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90341-18006	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LY50,YY52..10T,125 外径=14	05/1994 - 05/1995	4
90331-14004	LY5#,6#,YY5#,61 外径=14	08/1987 - 07/1991	4
90331-14004	YY61..WT2;LY5#,61,YY51 外径=14	07/1991 - 09/1991	4
90331-14004	LY5#,61,YY5#,61 外径=14	09/1991 - 05/1994	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LY50,YY5#..10T,125 長さ=16,外径=12	08/1988 - 05/1995	4
90250-12002	LY50,YY51..125 長さ=16,外径=12	08/1987 - 08/1988	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LY50,YY51..125 長さ=14,外径=15	08/1987 - 08/1988	2
90253-15001	LY50,YY5#..10T,125 長さ=14,外径=15	08/1988 - 05/1995	2
90253-11001	LY5#,6#,YY5#,61 長さ=11,外径=11	08/1987 - 07/1991	2
90253-11001	YY61..WT2;LY5#,61,YY51 長さ=11,外径=11	07/1991 - 09/1991	2
90253-11001	LY5#,61,YY5#,61..MTM 長さ=11,外径=11	09/1991 - 05/1995	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LY50,YY51..125 長さ=14,外径=15	08/1987 - 08/1988	2
90253-15001	LY50,YY5#..10T,125 長さ=14,外径=15	08/1988 - 05/1995	2
90253-11001	LY5#,6#,YY5#,61 長さ=11,外径=11	08/1987 - 07/1991	2
90253-11001	YY61..WT2;LY5#,61,YY51 長さ=11,外径=11	07/1991 - 09/1991	2
90253-11001	LY5#,61,YY5#,61..MTM 長さ=11,外径=11	09/1991 - 05/1995	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LY50,YY51..125 長さ=14,外径=15	08/1987 - 08/1988	2
90253-15001	LY50,YY5#..10T,125 長さ=14,外径=15	08/1988 - 05/1995	2
90253-11001	LY5#,6#,YY5#,61 長さ=11,外径=11	08/1987 - 07/1991	2
90253-11001	YY61..WT2;LY5#,61,YY51 長さ=11,外径=11	07/1991 - 09/1991	2
90253-11001	LY5#,61,YY5#,61..MTM 長さ=11,外径=11	09/1991 - 05/1995	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90430-18008	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90430-18008	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LY50,YY51..125	08/1987 - 08/1988	1
33131-26020	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115	LY50,YY51..125	08/1987 - 08/1988	1
90311-30014	LY50,YY5#..10T,125	07/1990 - 05/1995	1
90311-30010	LY50,YY51	08/1988 - 07/1990	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33151-28010	LY50,YY51..125	08/1987 - 08/1988	1
33449B - MAGNET, TRANSMISSION
33449-26010	LY50,YY5#..10T,125	08/1989 - 05/1995	1
Common parts
90119-08332
91611-60816
91611-60820

(8708-8808)YY51..10T ; (8708-8808)LY50..10T,125; (8808- )LY50

Click highlighted areas on diagram

G5#

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-22113	LY50	12/1989 - 06/1990	1
31111-22111	LY50..125	08/1987 - 08/1988	1
31111-22114	LY50	06/1990 - 05/1995	1
31111-22112	LY50	08/1988 - 12/1989	1
33101J - PLUG, BREATHER
90930-03085	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90930-03085	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
90930-03085	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LY50,YY51..125	08/1987 - 08/1988	1
90341-18057	LY50,YY5#..10T,125	08/1988 - 03/1995	1
90341-18006	LY5#,61,YY52,61..MTM	03/1995 - 05/1995	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90430-18008	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
90430-18008	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
33111 - CASE, MANUAL TRANSMISSION
33101-28020	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33101-26900	LY50,YY51..125	08/1987 - 08/1988	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90341-18006	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90341-18006	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LY50,YY52..10T,125 外径=14	05/1994 - 05/1995	4
90331-14004	LY5#,6#,YY5#,61 外径=14	08/1987 - 07/1991	4
90331-14004	YY61..WT2;LY5#,61,YY51 外径=14	07/1991 - 09/1991	4
90331-14004	LY5#,61,YY5#,61 外径=14	09/1991 - 05/1994	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LY50,YY5#..10T,125 長さ=16,外径=12	08/1988 - 05/1995	4
90250-12002	LY50,YY51..125 長さ=16,外径=12	08/1987 - 08/1988	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LY50,YY5#..10T,125 長さ=16,外径=12	08/1988 - 05/1995	4
90250-12002	LY50,YY51..125 長さ=16,外径=12	08/1987 - 08/1988	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LY50,YY51..125 長さ=14,外径=15	08/1987 - 08/1988	2
90253-15001	LY50,YY5#..10T,125 長さ=14,外径=15	08/1988 - 05/1995	2
90253-11001	LY5#,6#,YY5#,61 長さ=11,外径=11	08/1987 - 07/1991	2
90253-11001	YY61..WT2;LY5#,61,YY51 長さ=11,外径=11	07/1991 - 09/1991	2
90253-11001	LY5#,61,YY5#,61..MTM 長さ=11,外径=11	09/1991 - 05/1995	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LY50,YY51..125 長さ=14,外径=15	08/1987 - 08/1988	2
90253-15001	LY50,YY5#..10T,125 長さ=14,外径=15	08/1988 - 05/1995	2
90253-11001	LY5#,6#,YY5#,61 長さ=11,外径=11	08/1987 - 07/1991	2
90253-11001	YY61..WT2;LY5#,61,YY51 長さ=11,外径=11	07/1991 - 09/1991	2
90253-11001	LY5#,61,YY5#,61..MTM 長さ=11,外径=11	09/1991 - 05/1995	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	LY5#,6#,YY5#,61	08/1987 - 07/1991	1
90430-18008	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
90430-18008	YY61..WT2;LY5#,61,YY51	07/1991 - 09/1991	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020	LY5#,6#	08/1987 - 05/1995	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020	LY5#,6#	08/1987 - 05/1995	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LY50,YY51..125	08/1987 - 08/1988	1
33131-26020	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115	LY50,YY51..125	08/1987 - 08/1988	1
90311-30014	LY50,YY5#..10T,125	07/1990 - 05/1995	1
90311-30010	LY50,YY51	08/1988 - 07/1990	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LY50,YY51..125	08/1987 - 08/1988	1
33132-28010	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33138 - GASKET, INTERMEDIATE PLATE
33138-28010	LY50,YY51..125	08/1987 - 08/1988	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LY50,YY5#..10T,125	08/1988 - 05/1995	1
33151-28010	LY50,YY51..125	08/1987 - 08/1988	1
33449B - MAGNET, TRANSMISSION
33449-26010	LY50,YY5#..10T,125	08/1989 - 05/1995	1
Common parts
90119-08332
90119-10263
90149-80002
91611-60850
91611-61030
91611-61032
91611-61040
91611-61045
91619-61250
91659-61255
