Toyota Toyoace/dyna LY50 WIRING & CLAMP

LY50-MDM (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 2L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

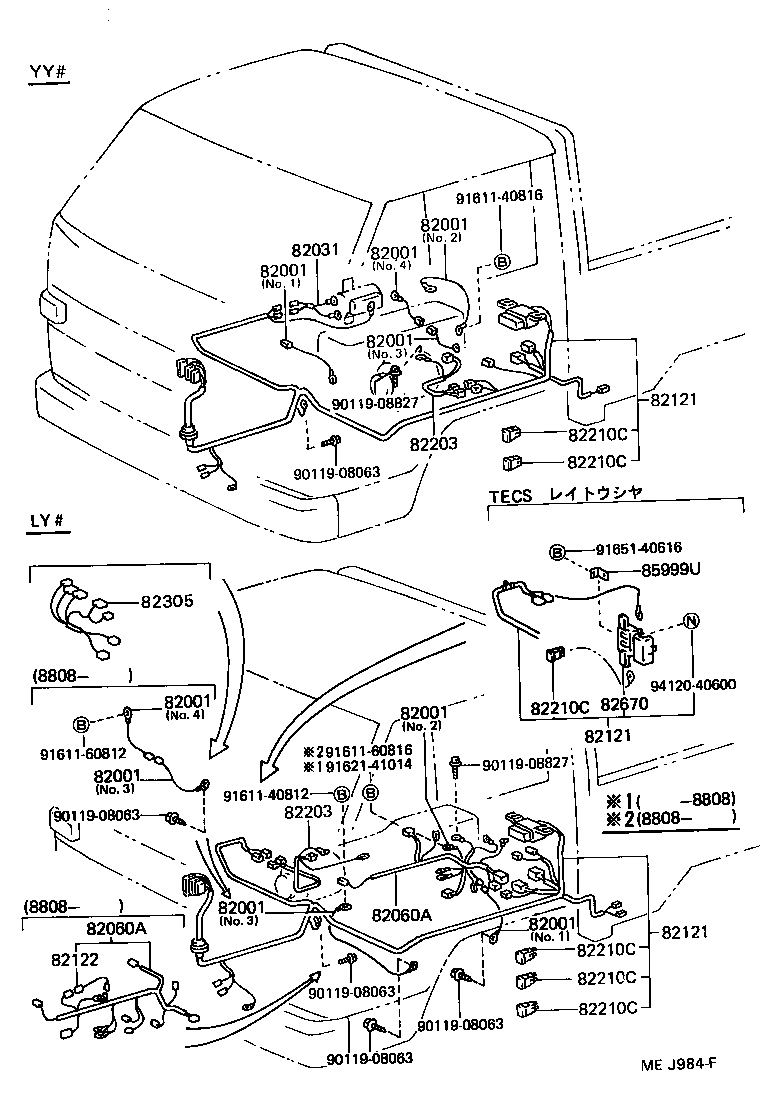

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82060A - WIRE ASSY, ENGINE, NO.2
82060-26010	LY5#,61	09/1991 - 10/1992	1
82060-95018	LY5#,61	08/1988 - 09/1991	1
82060-95014	LY50,60	08/1987 - 08/1988	1
82060-26012	LY5#,61	09/1993 - 05/1995	1
82060-26011	LY5#,61	10/1992 - 09/1993	1
82060A - WIRE ASSY, ENGINE, NO.2
82060-26010	LY5#,61	09/1991 - 10/1992	1
82060-95018	LY5#,61	08/1988 - 09/1991	1
82060-95014	LY50,60	08/1987 - 08/1988	1
82060-26012	LY5#,61	09/1993 - 05/1995	1
82060-26011	LY5#,61	10/1992 - 09/1993	1
82121 - WIRE, ENGINE
82121-95063	LY50..125	08/1987 - 08/1988	1
82121-95065	LY50..125 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1987 - 08/1988	1
82121-95079	LY50	08/1988 - 10/1989	1
82121-95082	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 10/1989	1
82121-95L03	LY50	10/1989 - 09/1991	1
82121-95L05	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/1989 - 09/1991	1
82121-95L05	LY50	09/1991 - 09/1993	1
82121-25160	LY50	09/1993 - 05/1995	1
82121 - WIRE, ENGINE
82121-95063	LY50..125	08/1987 - 08/1988	1
82121-95065	LY50..125 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1987 - 08/1988	1
82121-95079	LY50	08/1988 - 10/1989	1
82121-95082	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 10/1989	1
82121-95L03	LY50	10/1989 - 09/1991	1
82121-95L05	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/1989 - 09/1991	1
82121-95L05	LY50	09/1991 - 09/1993	1
82121-25160	LY50	09/1993 - 05/1995	1
82121 - WIRE, ENGINE
82121-95063	LY50..125	08/1987 - 08/1988	1
82121-95065	LY50..125 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1987 - 08/1988	1
82121-95079	LY50	08/1988 - 10/1989	1
82121-95082	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 10/1989	1
82121-95L03	LY50	10/1989 - 09/1991	1
82121-95L05	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/1989 - 09/1991	1
82121-95L05	LY50	09/1991 - 09/1993	1
82121-25160	LY50	09/1993 - 05/1995	1
82122 - WIRE, ENGINE, NO.2
82122-95010	LY5#,61	08/1988 - 05/1995	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95017	LY5#,61	09/1988 - 10/1989	1
82203-95013	LY5#,6#	08/1987 - 09/1988	1
82203-95019	LY5#,61	10/1989 - 09/1991	1
82203-25012	LY5#,61	09/1993 - 05/1995	1
82203-25011	LY5#,61	09/1991 - 09/1993	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95017	LY5#,61	09/1988 - 10/1989	1
82203-95013	LY5#,6#	08/1987 - 09/1988	1
82203-95019	LY5#,61	10/1989 - 09/1991	1
82203-25012	LY5#,61	09/1993 - 05/1995	1
82203-25011	LY5#,61	09/1991 - 09/1993	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08189	LY5#,6#,YY5#,61 40A,ﾒｽ端子,緑	08/1987 - 10/1989	1
90982-08203	LY50,60 80A,ｵｽ端子,黒	08/1987 - 12/1988	1
90982-08203	LY50 80A,ｵｽ端子,黒	10/1989 - 12/1989	1
90982-08253	LY50 80A,ｵｽ端子,黒	12/1988 - 12/1989	1
90982-08228	LY50,60 50A,ｵｽ端子,赤	08/1987 - 09/1991	1
90982-08189	LY5#,YY5#,61;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2) 40A,ﾒｽ端子,緑	10/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	12/1989 - 09/1991	1
90982-08203	LY50 80A,ｵｽ端子,黒	09/1991 - 09/1993	2
90982-08228	LY50 50A,ｵｽ端子,赤	09/1991 - 09/1993	2
90982-08189	LY5#,61,YY52,61 40A,ﾒｽ端子,緑	09/1993 - 05/1995	1
90982-08189	LY50 40A,ﾒｽ端子,緑	09/1991 - 09/1993	2
90982-08203	LY5#,61 80A,ｵｽ端子,黒	09/1993 - 05/1995	1
90982-08228	LY5#,61 50A,ｵｽ端子,赤	09/1993 - 05/1995	1
Common parts
90119-08063
90119-08827
91611-40812
91611-40816
91611-60812
91611-60816
91621-41014
91651-40616
94120-40600

ILLUST NO. 2 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-95010	LY5#,6#,YY5#,61	08/1987 - 05/1995	2
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-95010	LY5#,6#,YY5#,61	08/1987 - 05/1995	2
82081 - WIRING ASSY, DOOR LOCK
82081-95400	LY5#,6#..T1,T2,T3,T4	08/1987 - 08/1990	1
82081-37010	LY5#,61	08/1990 - 10/1990	1
82081-37020	LY5#,61	10/1990 - 09/1993	1
82081-37020	LY5#,61,YY52,61..CBR,DSL	09/1993 - 05/1995	1
82131 - WIRE, COWL
82131-95L12	LY50..125	08/1987 - 08/1988	1
82131-95L13	LY50..125 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1987 - 08/1988	1
82131-95L32	LY50..(T1,T3)..125 ｱﾘ(ﾍﾂﾄﾞﾗﾝﾌﾟ=*SSB)	08/1987 - 08/1988	1
82131-95L42	LY50	08/1988 - 10/1989	1
82131-95L44	LY50..T1,T3,TW ｱﾘ(ﾍﾂﾄﾞﾗﾝﾌﾟ=*SSB)	08/1988 - 10/1989	1
82131-95L43	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 10/1989	1
82131-95L68	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/1989 - 08/1990	1
82131-95L67	LY50	10/1989 - 08/1990	1
82131-95L69	LY50..T1,T3,TW ｱﾘ(ﾍﾂﾄﾞﾗﾝﾌﾟ=*SSB)	10/1989 - 08/1990	1
82131-25080	LY50..T1,T3,TW ｱﾘ(ﾍﾂﾄﾞﾗﾝﾌﾟ=*SSB)	08/1990 - 09/1991	1
82131-25070	LY50 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1990 - 09/1991	1
82131-25060	LY50	08/1990 - 09/1991	1
82131-25072	LY50	09/1991 - 09/1993	1
82131-25073	LY50	09/1993 - 05/1995	1
82131-25083	LY50 ｱﾘ(*PW)	09/1993 - 05/1995	1
82151 - WIRE, FRONT DOOR, RH
82151-95400	LY50,60..T1,T2,T3,T4	08/1987 - 08/1988	1
82151-37011	LY50,61..10T,125 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1991 - 09/1993	1
82151-37030	LY5#,61;YY5#,61..T2,T4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1991 - 12/1991	1
82151-25042	LY5#,61,YY52,61 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝｼﾞﾛﾂｸ)	09/1993 - 05/1995	1
82151-37010	LY5#,61	08/1990 - 09/1991	1
82151-25050	LY5#,61,YY52,61 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	09/1993 - 05/1995	1
82151-37011	LY5#,61,YY52,61..CBR,DSL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82151-25060	LY5#,61,YY52,61..CBR,DSL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82151-37031	LY5#,61;YY5#,61..T2,T4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	12/1991 - 09/1993	1
82151-95403	LY5#,61..T1,T2,T3,T4	08/1988 - 08/1990	1
82151-37031	LY5#,61,YY52,61 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82152 - WIRE, FRONT DOOR, LH
82152-37010	LY5#,61	04/1991 - 09/1991	1
82152-25040	LY5#,61,YY52,61..CBR,DSL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82152-25030	LY5#,61,YY52,61 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	09/1993 - 05/1995	1
82152-37040	LY5#,61;YY5#,61..T2,T4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1991 - 09/1993	1
82152-37010	LY5#,61 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1991 - 09/1993	1
82152-37040	LY5#,61,YY52,61 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82152-25021	LY5#,61,YY52,61 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝｼﾞﾛﾂｸ)	09/1993 - 05/1995	1
82152-37010	LY5#,61,YY52,61..CBR,DSL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82152-37010	LY5#,61,YY5#,61	08/1990 - 04/1991	1
82164 - WIRE, FRAME
82164-95046	LY50..T1,TW	08/1987 - 08/1988	1
82164-95080	LY50..T1,TW	08/1988 - 09/1993	1
82164-25230	LY50..T1,TW	09/1993 - 05/1995	1
82171 - WIRE, ROOF, NO.1
82171-95400	LY5#,6#,YY5#,61..T1,T2,T3,T4	08/1987 - 09/1993	1
82171-37080	LY5#,61,YY52,61..T1,T2,T3,T4	09/1993 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95015	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.1	08/1987 - 08/1988	1
88648-95410	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.2	08/1987 - 08/1988	1
88648-95410	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.2	08/1988 - 10/1989	1
88648-95031	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.1	08/1988 - 10/1989	1
88648-95031	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.1	10/1989 - 01/1993	1
88648-95410	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.2	10/1989 - 01/1993	1
88648-95410	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.2	01/1993 - 05/1995	1
88648-95031	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.1	01/1993 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95015	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.1	08/1987 - 08/1988	1
88648-95410	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.2	08/1987 - 08/1988	1
88648-95410	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.2	08/1988 - 10/1989	1
88648-95031	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.1	08/1988 - 10/1989	1
88648-95031	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.1	10/1989 - 01/1993	1
88648-95410	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.2	10/1989 - 01/1993	1
88648-95410	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.2	01/1993 - 05/1995	1
88648-95031	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.1	01/1993 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95015	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.1	08/1987 - 08/1988	1
88648-95410	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.2	08/1987 - 08/1988	1
88648-95410	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.2	08/1988 - 10/1989	1
88648-95031	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.1	08/1988 - 10/1989	1
88648-95031	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.1	10/1989 - 01/1993	1
88648-95410	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.2	10/1989 - 01/1993	1
88648-95410	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.2	01/1993 - 05/1995	1
88648-95031	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.1	01/1993 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95015	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.1	08/1987 - 08/1988	1
88648-95410	LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV NO.2	08/1987 - 08/1988	1
88648-95410	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.2	08/1988 - 10/1989	1
88648-95031	LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU NO.1	08/1988 - 10/1989	1
88648-95031	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.1	10/1989 - 01/1993	1
88648-95410	LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV NO.2	10/1989 - 01/1993	1
88648-95410	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.2	01/1993 - 05/1995	1
88648-95031	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU NO.1	01/1993 - 05/1995	1

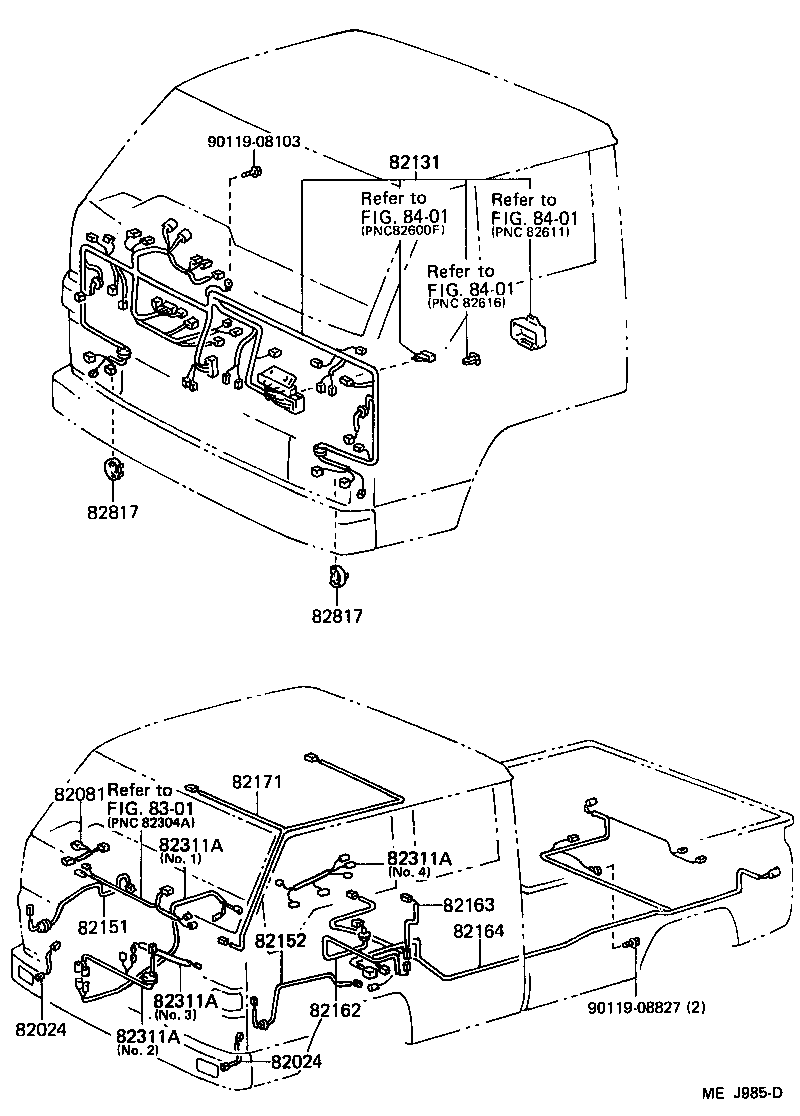

82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350	LY5#,6#,YY5#,61	08/1987 - 05/1995	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350	LY5#,6#,YY5#,61	08/1987 - 05/1995	2
Common parts
90119-08103
90119-08827
Linked diagrams
8301
8401

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts

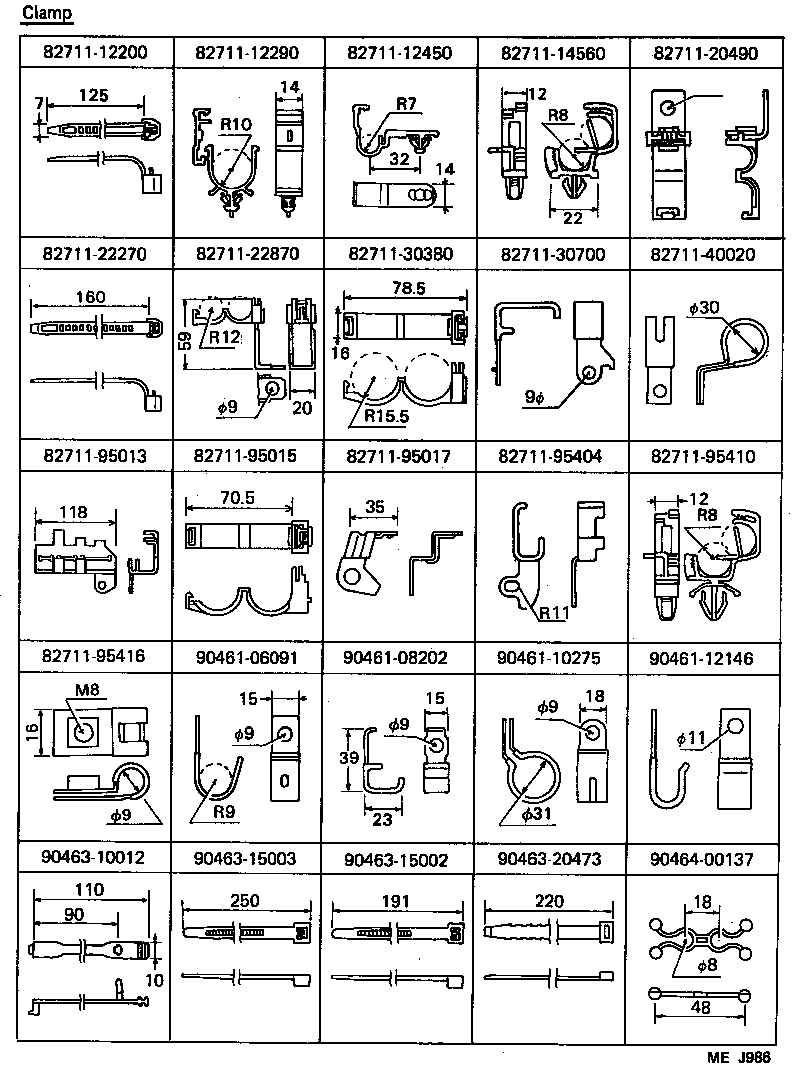

82711-12200
82711-12290
82711-12450
82711-14560
82711-20490
82711-22270
82711-22870
82711-30380
82711-30700
82711-40020
82711-95013
82711-95015
82711-95017
82711-95404
82711-95410
82711-95416
90461-06091
90461-08202
90461-10275
90461-12146
90463-10012
90463-15002
90463-15003
90463-20473
90464-00137

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts

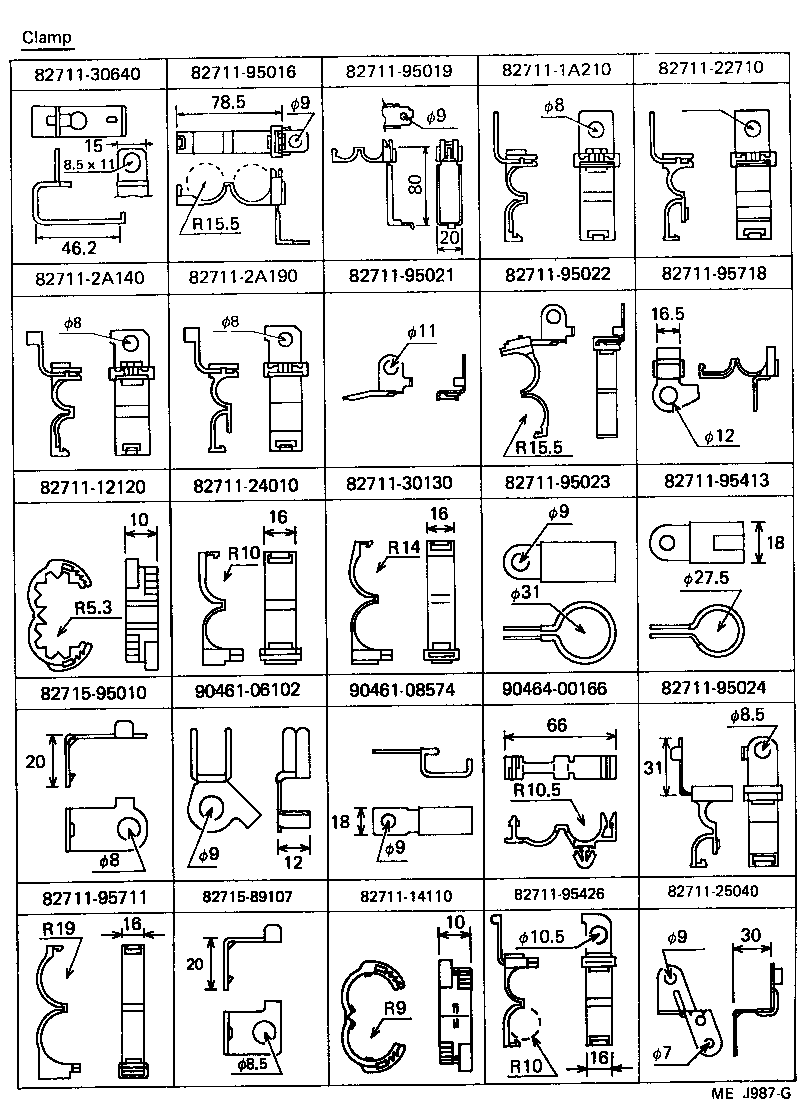

82711-12120
82711-14110
82711-1A210
82711-22710
82711-24010
82711-25040
82711-2A140
82711-2A190
82711-30130
82711-30640
82711-95016
82711-95019
82711-95021
82711-95022
82711-95023
82711-95024
82711-95413
82711-95426
82711-95711
82711-95718
82715-89107
82715-95010
90461-06102
90461-08574
90464-00166

ILLUST NO. 4 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts

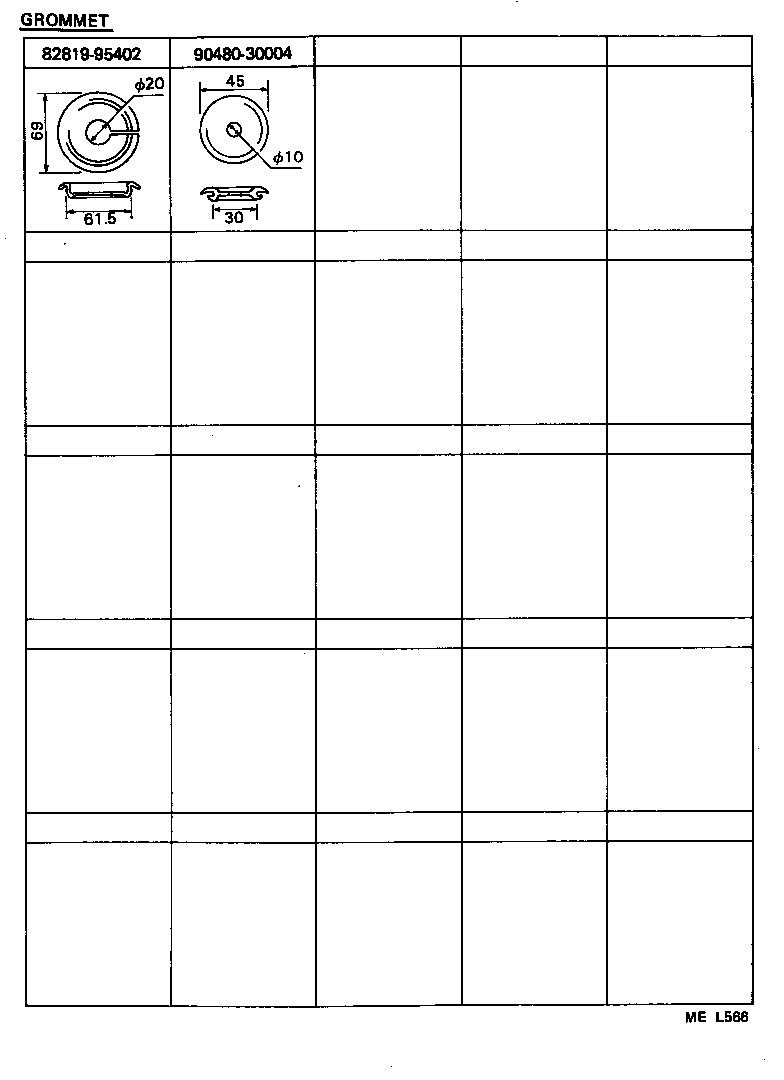

82819-95402
90480-30004

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts

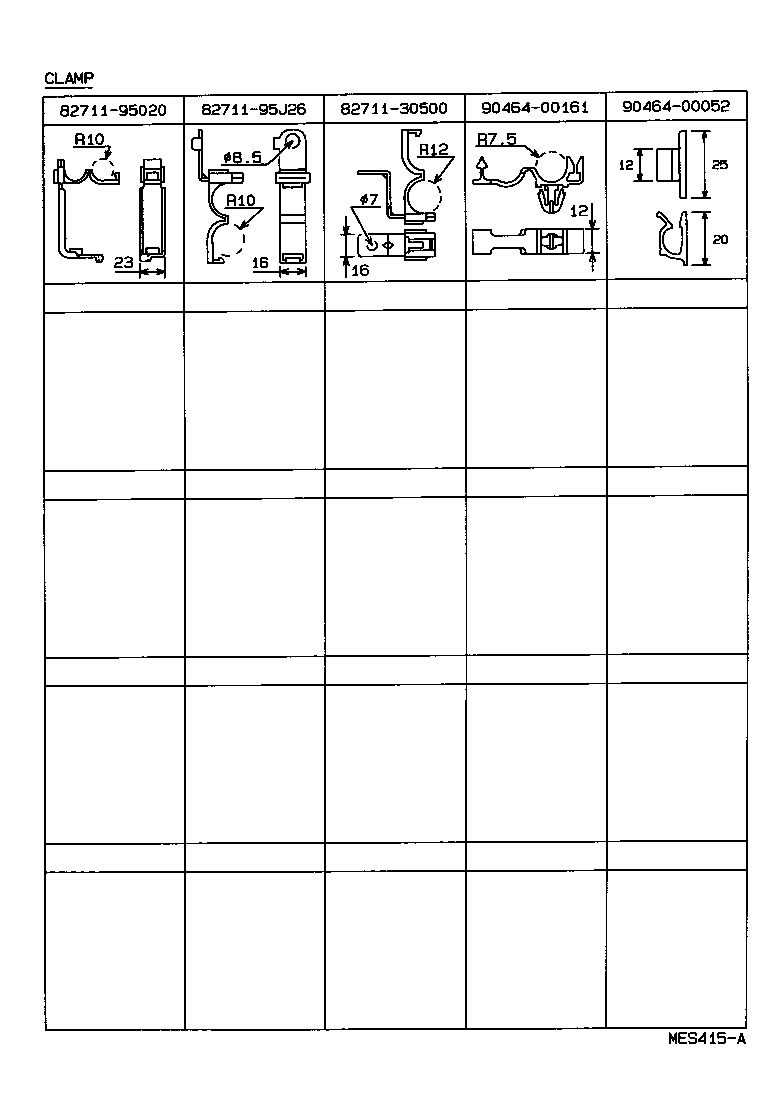

82711-30500
82711-95020
82711-95J26
90464-00052
90464-00161

LY50-MDM (1987)

ILLUST NO. 1 OF 4(8708- )

ILLUST NO. 2 OF 4(8708- )

ILLUST NO. 3 OF 4(8708- )

ILLUST NO. 3 OF 4(8708- )

ILLUST NO. 4 OF 4(8708- )

ILLUST NO. 3 OF 4(8708- )

Part Price Details
