LY50-MDLTJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T2,T3..TS

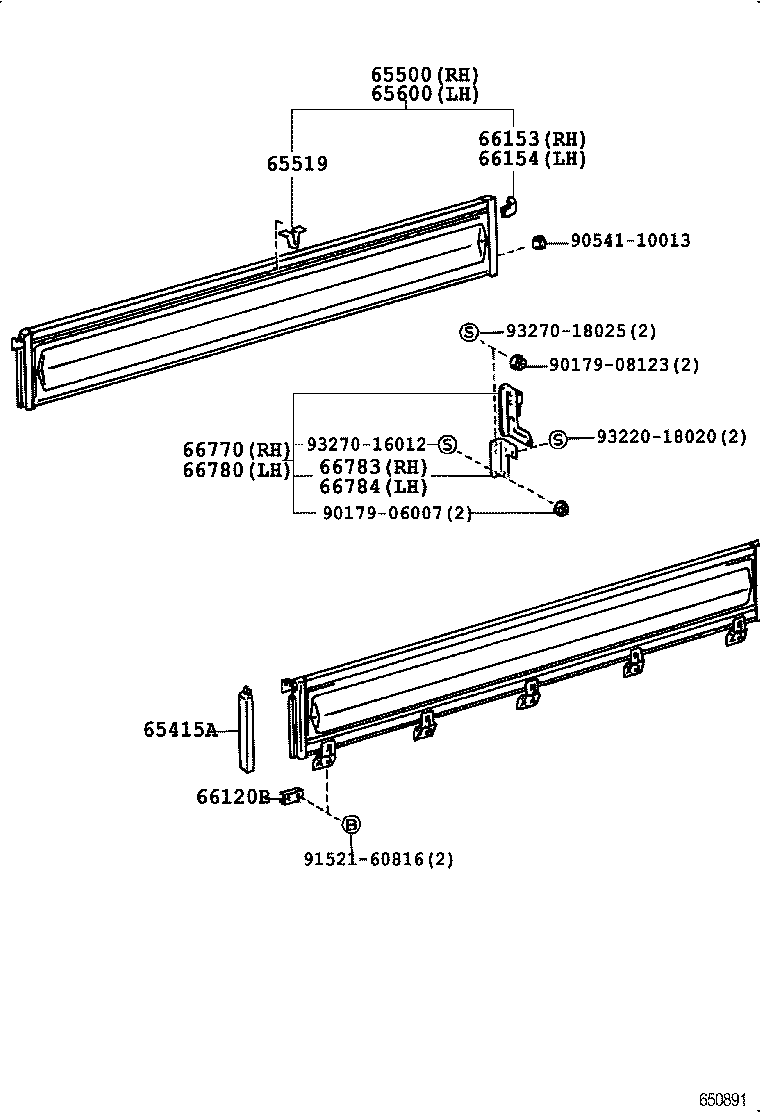

Click highlighted areas on diagram

diagram 65415A 65500 65519 65600 66120B 66153 66154 66770 66780 66783 66784 9017906007 9017908123 9054110013 9152160816 9322018020 9327016012 9327018025
Part # Description Qty Price
65415A - PROTECTOR, GUARD FLAME
65415-95012

LY50,60,YY5#,61..(T2,T3)..TS

 2
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95066

LY50,YY50..T1

 1
65500-95068

LY50,YY5#..(T2,T3)..TS

 1
65519 - BRACKET, TOP RAIL
65519-95010

LY50,60,YY5#,61..(T2,T3)..TS

 2
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95068

LY50,YY50..T1

 1
65600-95070

LY50,YY5#..(T2,T3)..TS

 1
66120B - RETAINER, SIDE GATE HINGE, LOWER
66115-95012

LY50,YY5#..TS..WT1

LH,1ST,2ND,3RD,4TH

 4
66115-95018

LY50,YY5#..TS..WT1

RH,1ST,2ND,3RD,4TH

 4
66115-95013

LY50,YY5#..TS..WT1

5TH

 2
66153 - LATCH, TAIL GATE FEMALE, RH
66153-95A00

LY50,60,YY5#,61..(T2,T3)..TS

 1
66153-95A01

LY50,60,YY5#,61..(T2,T3)..TS

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66154-95A01

LY50,60,YY5#,61..(T2,T3)..TS

 1
66154-95A00

LY50,60,YY5#,61..(T2,T3)..TS

 1
66770 - SUPPORT SUB-ASSY, SIDE GATE, RH
66770-95013

LY50,60,YY5#,61..(T2,T3)..TS

 1
66780 - SUPPORT SUB-ASSY, SIDE GATE, LH
66780-95013

LY50,60,YY5#,61..(T2,T3)..TS

 1
66783 - BRACKET, SIDE GATE SUPPORT, RH
66783-95012

LY50,60,YY5#,61..(T2,T3)..TS

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66784-95012

LY50,60,YY5#,61..(T2,T3)..TS

 1
Common parts
90179-06007
90179-08123
90541-10013
91521-60816
93220-18020
93270-16012
93270-18025
