LY50-MDLTJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

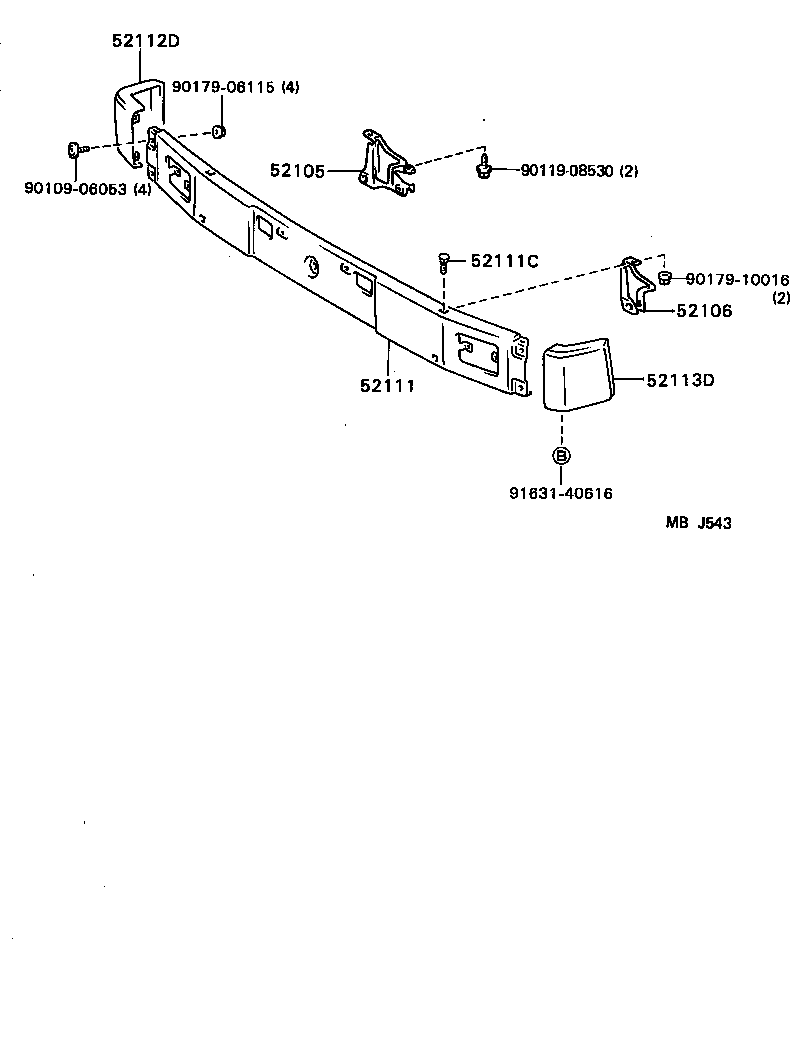

Click highlighted areas on diagram

diagram 52105 52106 52111 52111C 52112D 52113D 9010906053 9011908530 9017906115 9017910016 9163140616
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-95011

LY50,60,YY5#,61

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-95011

LY50,60,YY5#,61

 1
52111 - BUMPER ASSY, FRONT
52111-95426

LY50,60,YY5#,61

W/FOG LAMP

 1
52111-95427

LY50,60,YY5#,61

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10008

LY50,60,YY5#,61

 4
90112-10019

LY50,60,YY5#,61

 4
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

LY50,60,YY5#,61

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

LY50,60,YY5#,61

 1
Common parts
90109-06053
90119-08530
90179-06115
90179-10016
91631-40616
