LY50-MDLMTJ (1987)
Toyota Toyoace/Dyna
(8708- )LY50,YY51..125

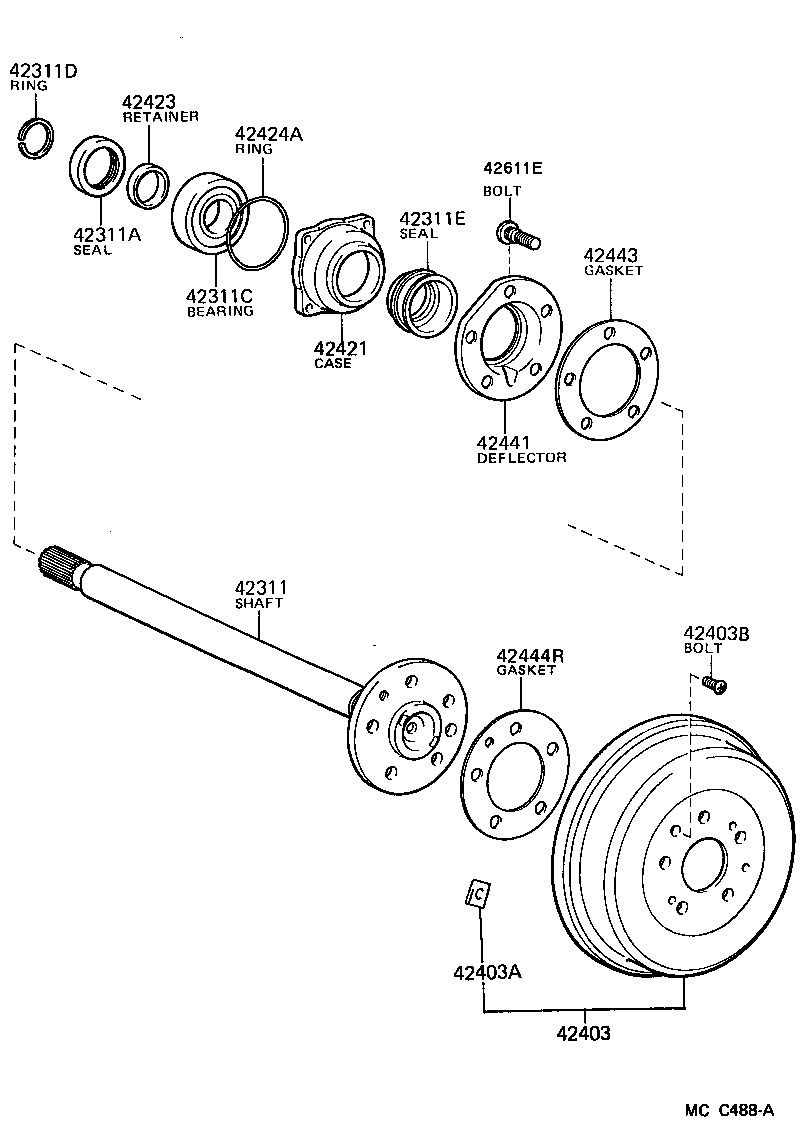

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25080 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42311-25080 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42311-25070 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42311-25070 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42311-25081 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42311-25081 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-35001 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 90310-35001 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-26060 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42431-26060 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42431-25070 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 42431-25070 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 42431-35060 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42431-35060 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25020 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 42441-25020 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 42441-35020 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42441-35020 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42441-35020 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42441-35020 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55020 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42443-55020 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42443-55020 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42443-55020 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42444-35050 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42444-25010 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 42444-25010 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02041 |
LY5#,6#,YY5#,61..WT1 右側 |
1 | ||
| 90942-02041 |
LY5#,6#,YY5#,61..WT1 右側 |
1 | ||
| 90942-02052 |
LY50,YY5#..(T1,T3)..125 |
12 | ||
| 90942-02052 |
LY50,YY5#..(T1,T3)..125 |
12 | ||
| 90942-02042 |
LY5#,6#,YY5#,61..WT1 左側 |
1 | ||
| 90942-02042 |
LY5#,6#,YY5#,61..WT1 左側 |
1 | ||
| 90942-02052 |
LY50,YY51..(T1,T3)..125 |
12 | ||
| 90942-02052 |
LY50,YY51..(T1,T3)..125 |
12 | ||

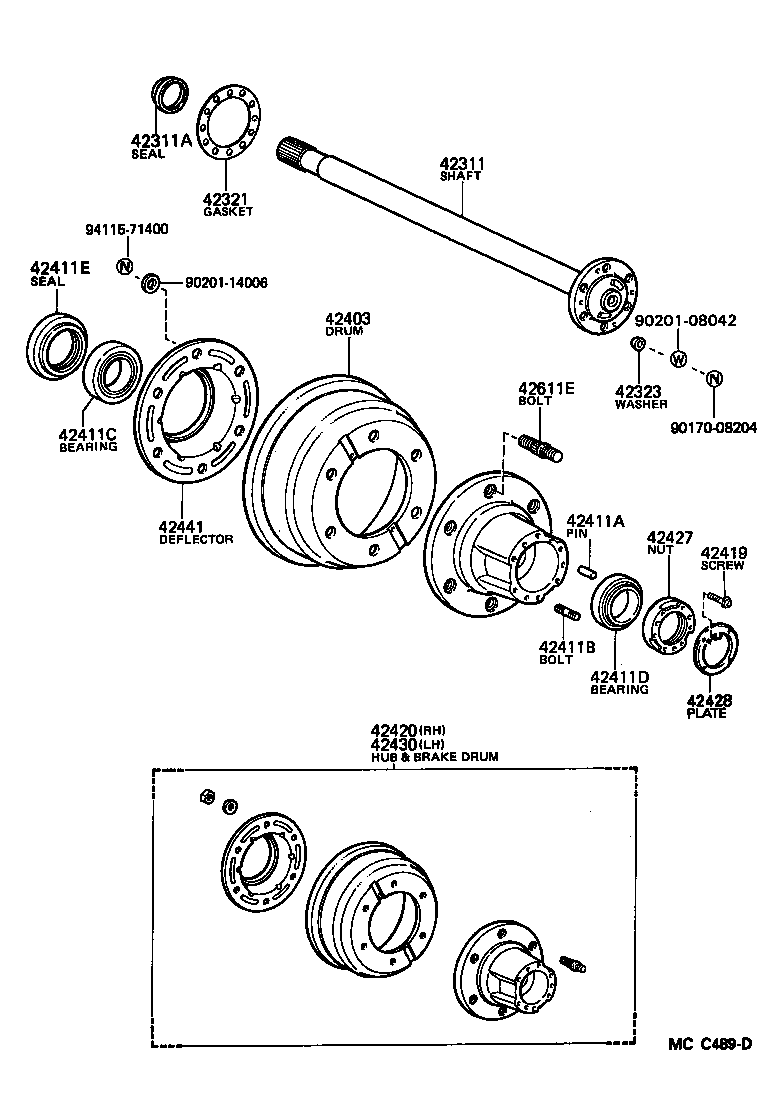

(8708- )WT1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25080 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42311-25070 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42311-25081 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-35001 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 43422-60020 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 43422-60040 |
LY5#,61,YY5#,61..WT1 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
LY5#,6#,YY5#,61..WT1 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-26060 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42431-25070 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 42431-35060 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
LY5#,6#,YY5#,61..WT1 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
LY50,YY51..125..WT1 |
2 | ||
| 90368-49084 |
LY50,YY5#,61..WT1 |
2 | ||
| 90368-49084 |
LY5#,61,YY52,61..WT1 NSK |
2 | ||
| 90080-36064 |
LY5#,61,YY52,61..WT1 TIMKEN |
2 | ||
| 90368-49084 |
LY5#,61,YY5#,61..WT1 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
LY5#,61,YY52,61..WT1 NSK |
2 | ||
| 90368-45087 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 90080-36067 |
LY5#,61,YY52,61..WT1 TIMKEN |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-62001 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
LY5#,6#,YY5#,61..WT1 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-26090 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-60011 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-26090 |
LY5#,6#,YY5#,61..WT1 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25020 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 42441-35020 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 42441-35020 |
LY50,YY5#..(T1,T3)..125 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02041 |
LY5#,6#,YY5#,61..WT1 右側 |
1 | ||
| 90942-02052 |
LY50,YY5#..(T1,T3)..125 |
12 | ||
| 90942-02042 |
LY5#,6#,YY5#,61..WT1 左側 |
1 | ||
| 90942-02052 |
LY50,YY51..(T1,T3)..125 |
12 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
| 90201-14006 | ||||
| 94115-71400 | ||||
