LY50-MDLMT3 (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

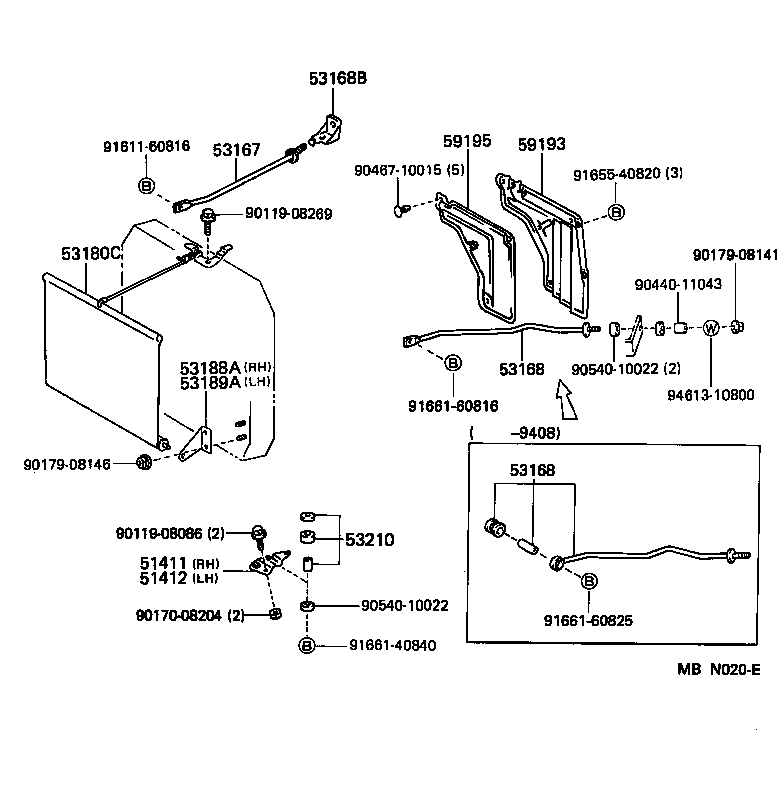

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51411 - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 51412 - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 53167 - ROD, RADIATOR BRACE, RH | ||||
| 53167-25130 |
LY5#,6#,YY5#,61 |
1 | ||
| 53168 - ROD, RADIATOR BRACE, LH | ||||
| 53018-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 53169-25122 |
LY5#,61,YY52,61 |
1 | ||
| 53018-25011 |
LY5#,61,YY5#,61 |
1 | ||
| 53168 - ROD, RADIATOR BRACE, LH | ||||
| 53018-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 53169-25122 |
LY5#,61,YY52,61 |
1 | ||
| 53018-25011 |
LY5#,61,YY5#,61 |
1 | ||
| 53168B - BRACKET, RADIATOR BRACE ROD | ||||
| 53168-25020 |
LY5#,6#,YY5#,61 |
1 | ||
| 53180C - SHUTTER ASSY, RADIATOR | ||||
| 53180-95013 |
LY50..10T..CBU;LY50,60..125,15T |
1 | ||
| 53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH | ||||
| 87543-95011 |
LY50..10T..CBU;LY50,60..125,15T |
1 | ||
| 53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH | ||||
| 87544-95011 |
LY50..10T..CBU;LY50,60..125,15T |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-26010 |
LY5#,61,YY5#,61 |
2 | ||
| 59193 - GUARD, NOISE SHUTTER | ||||
| 59193-95A00 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 59195 - INSULATOR, NOISE SHUTTER | ||||
| 59195-95A00 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08269 | ||||
| 90170-08204 | ||||
| 90179-08141 | ||||
| 90179-08146 | ||||
| 90440-11043 | ||||
| 90467-10015 | ||||
| 90540-10022 | ||||
| 91611-60816 | ||||
| 91655-40820 | ||||
| 91661-40840 | ||||
| 91661-60816 | ||||
| 91661-60825 | ||||
| 94613-10800 | ||||
