LY50-MDLMT (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

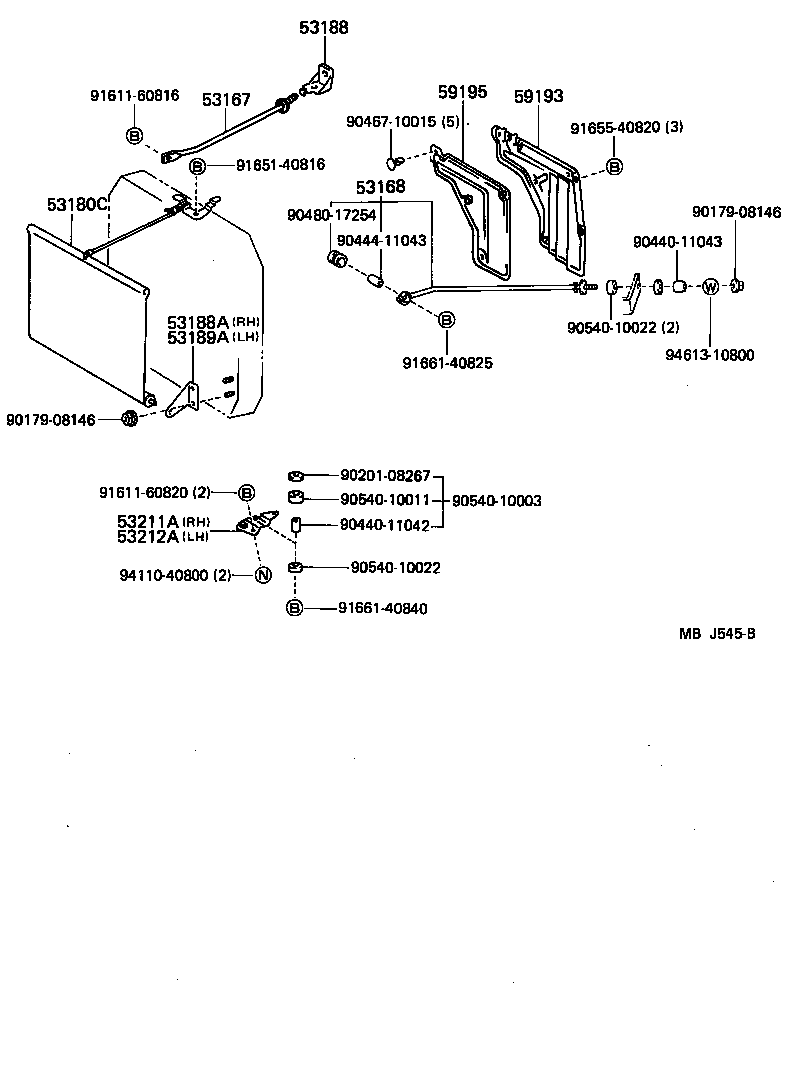

Click highlighted areas on diagram

diagram 53167 53168 53180C 53188 53188A 53189A 53211A 53212A 59193 59195 9017908146 9017908146 9020108267 9044011042 9044011043 9044411043 9046710015 9048017254 9054010003 9054010011 9054010022 9054010022 9161160816 9161160820 9165140816 9165540820 9166140825 9166140840 9411040800 9461310800
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53167-25130

LY50,60,YY5#,61

 1
53168 - ROD, RADIATOR BRACE, LH
53018-25010

LY50,60,YY5#,61

 1
53180C - SHUTTER ASSY, RADIATOR
53180-95010

LY50,60

 1
53188 - BRACKET, RADIATOR BRACE ROD, RH
53168-25020

LY50,60,YY5#,61

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
87543-95011

LY50,60

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
87544-95011

LY50,60

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-25010

LY50,60,YY5#,61

 1
53212A - BRACKET, RADIATOR SUPPORT, LH
51412-25010

LY50,60,YY5#,61

 1
59193 - GUARD, NOISE SHUTTER
59193-95A00

LY50,60,YY50..T1,T2,T3

 1
59195 - INSULATOR, NOISE SHUTTER
59195-95A00

LY50,60,YY50..T1,T2,T3

 1
Common parts
90179-08146
90201-08267
90440-11042
90440-11043
90444-11043
90467-10015
90480-17254
90540-10003
90540-10011
90540-10022
91611-60816
91611-60820
91651-40816
91655-40820
91661-40825
91661-40840
94110-40800
94613-10800
