LY50-MDLMT (1985)
Toyota Toyoace/Dyna

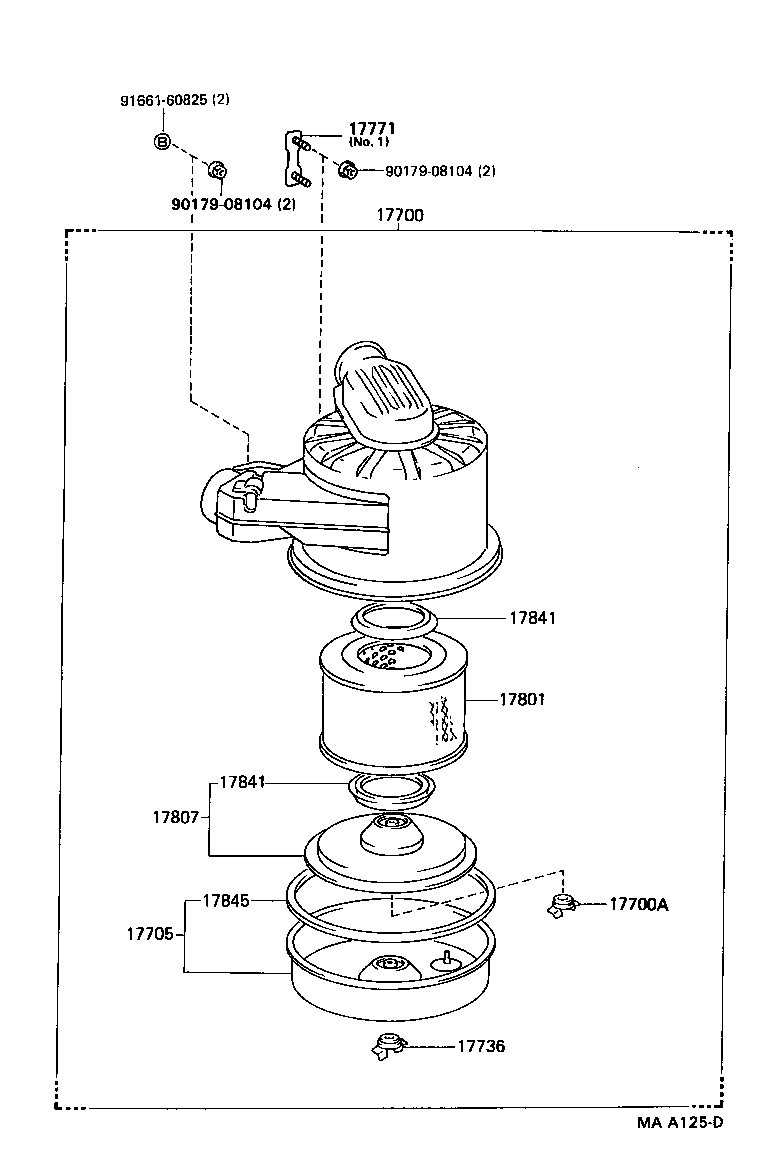

ILLUST NO. 1 OF 2(8508- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54350 |
2L..LY50,60 |
1 | ||
| 17700-54350 |
2L..LY50,60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2L..LY50,60 |
1 | ||
| 90175-08008 |
2L..LY50,60 |
1 | ||
| 17700X - BRACKET, AIR CLEANER | ||||
| 17771-71010 |
2L..LY50,60 |
1 | ||
| 17771-71010 |
2L..LY50,60 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
2L..LY50,60 |
1 | ||
| 17701-54200 |
2L..LY50,60 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2L..LY50,60 |
1 | ||
| 90175-06003 |
2L..LY50,60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
2L..LY50,60 |
1 | ||
| 17801-54070 |
2L..LY50,60 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
2L..LY50,60 |
1 | ||
| 17807-54010 |
2L..LY50,60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2L..LY50,60 |
2 | ||
| 17841-54010 |
2L..LY50,60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2L..LY50,60 |
2 | ||
| 17841-54010 |
2L..LY50,60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
2L..LY50,60 |
1 | ||
| 17845-54010 |
2L..LY50,60 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||

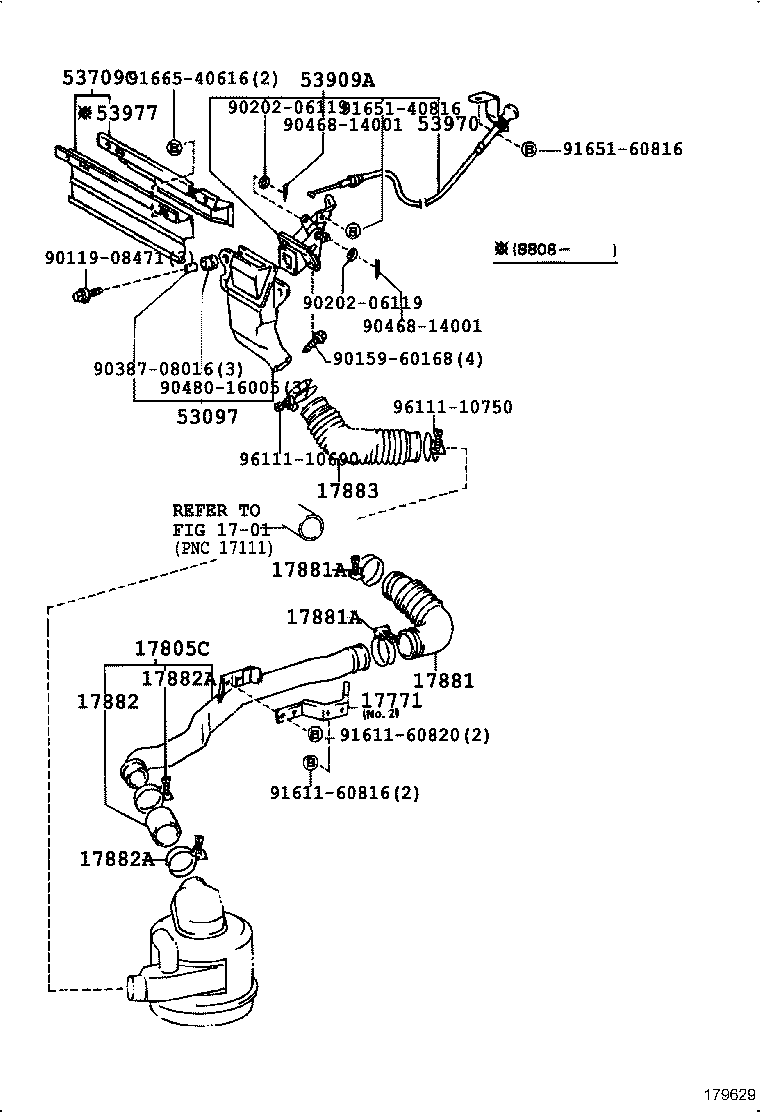

ILLUST NO. 2 OF 2(8508- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53097-95010 |
2L..LY50,60 |
1 | ||
| 53097-95010 |
2L..LY50,60 |
1 | ||
| 53097-95012 |
2L..LY50,60 *ACIS |
1 | ||
| 53097-95012 |
2L..LY50,60 *ACIS |
1 | ||
| 17710E - CABLE SUB-ASSY | ||||
| 53970-95010 |
2L..LY50,60 *ACIS |
1 | ||
| 53970-95010 |
2L..LY50,60 *ACIS |
1 | ||
| 17742 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95400 |
2L..LY50,60 |
1 | ||
| 53977-95400 |
2L..LY50,60 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 53767-95400 |
2L..LY50,60 |
1 | ||
| 53767-95400 |
2L..LY50,60 |
1 | ||
| 17780B - BRACKET SUB-ASSY, AIR CLEANER SHUTTER | ||||
| 53909-95010 |
2L..LY50,60 *ACIS |
1 | ||
| 53909-95010 |
2L..LY50,60 *ACIS |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17805-54050 |
2L..LY50,60 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17771-54010 |
2L..LY50,60 |
1 | ||
| 17771-54010 |
2L..LY50,60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54290 |
2L..LY50,60 |
1 | ||
| 17881-54290 |
2L..LY50,60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54290 |
2L..LY50,60 |
1 | ||
| 17881-54290 |
2L..LY50,60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 96111-10690 |
2L..LY50,60 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2L..LY50,60 |
1 | ||
| 17882-31070 |
2L..LY50,60 |
1 | ||
| 17882-54220 |
2L..LY50,60 |
1 | ||
| 17882-54220 |
2L..LY50,60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2L..LY50,60 |
1 | ||
| 17882-31070 |
2L..LY50,60 |
1 | ||
| 17882-54220 |
2L..LY50,60 |
1 | ||
| 17882-54220 |
2L..LY50,60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 96111-10750 |
2L..LY50,60 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95014 |
2L..LY50,60 |
1 | ||
| 17883-95014 |
2L..LY50,60 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10690 |
2L..LY50,60 AIR INLET SIDE |
1 | ||
| 96111-10690 |
2L..LY50,60 AIR INLET SIDE |
1 | ||
| 96111-10750 |
2L..LY50,60 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LY50,60 AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10690 |
2L..LY50,60 AIR INLET SIDE |
1 | ||
| 96111-10690 |
2L..LY50,60 AIR INLET SIDE |
1 | ||
| 96111-10750 |
2L..LY50,60 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LY50,60 AIR CLEANER SIDE |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90175-08008 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
ILLUST NO. 2 OF 2(8708-8808)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF 2(8708-8808)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
