LY50-MDLMT (1987)
Toyota Toyoace/Dyna

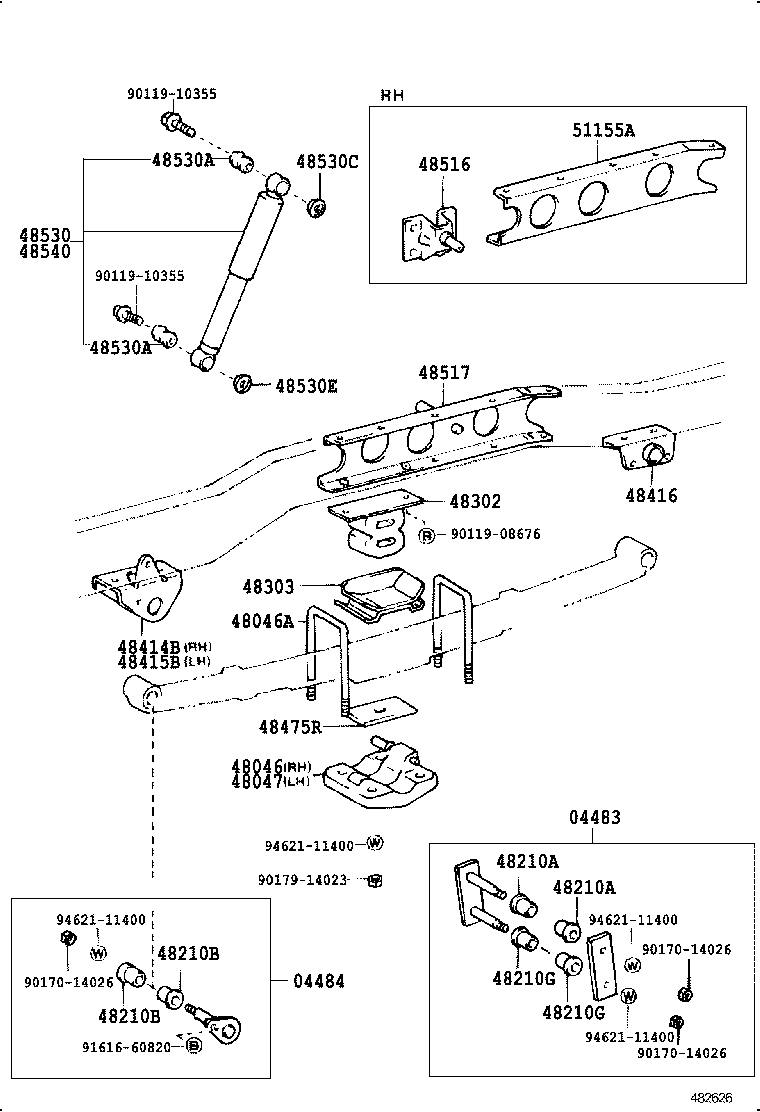

ILLUST NO. 1 OF 2(8708- )WT1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25011 |
LY6#..TS;LY51,YY61;LY6#..T3..TB;LY50,YY5#..WT1;LY6#..TB..(WT1,WT2);LY50,YY5#..T1,T3,TW |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-25011 |
LY5#,6#,YY5#,61 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-25080 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
LY50,YY51..(T1,T3)..125 長さ=170 |
2 | ||
| 90117-14009 |
LY50,YY51..(T1,T3)..125 長さ=162 |
4 | ||
| 90117-14046 |
LY5#,6#,YY5#,61..WT1 長さ=175 |
4 | ||
| 90117-14035 |
LY61..T2..ST;LY5#,YY52..T2;LY61,YY61..WT1 長さ=180 |
4 | ||
| 90117-14009 |
LY50,YY5#..(T1,T3,TW)..TS 長さ=162 |
4 | ||
| 90117-14014 |
LY50,YY5#..(T1,T3,TW)..TS 長さ=170 |
2 | ||
| 90117-14035 |
LY5#,61,YY52,61..WT1 長さ=180 |
4 | ||
| 90117-14035 |
LY5#,6#,YY5#,61..WT1 長さ=180 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-25080 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25051 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25040 |
YY52..15T..ST;LY50,YY5#..WT1;LY51,61,YY61..ST,WT1 |
2 | ||
| 48303-25040 |
LY50,YY51..WT1;LY60,YY52,61..ST,WT1;LY50,YY51..(10T,15T)..ST |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-25050 |
LY5#,6#,YY5#,61..WT1,WT2 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-25020 |
LY5#,6#,YY5#,61..WT1,WT2 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-25080 |
LY5#,6#,YY5#,61..WT1,WT2 右側 |
1 | ||
| 48417-25060 |
LY5#,6#,YY5#,61..WT1,WT2 左側 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY61..T2..ST;LY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1 |
1 | ||
| 48475-25010 |
LY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 48475-25010 |
LY61..TS;LY61..TB..WT1;LY50,YY52..WT1;LY51,YY61..ST,WT1;LY61,YY52..T3..TB |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-25041 |
LY5#,6#,YY5#,61..WT1,WT2 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-25040 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80065 |
LY5#,6#,YY5#,61..WT1 ﾏｰｸ 48531−25080 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LY5#,6#,YY5#,61..WT1,WT2 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LY5#,6#,YY5#,61..WT1,WT2 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY5#,6#,YY5#,61 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LY5#,6#,YY5#,61..WT1,WT2 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80065 |
LY5#,6#,YY5#,61..WT1 ﾏｰｸ 48531−25080 |
1 | ||
| 51155A - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-25050 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 51155-25051 |
LY5#,61,YY5#,61..WT1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91616-60820 | ||||
| 94621-11400 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25180 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25350 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25390 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48201-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48201-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48201-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48212-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48212-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48212-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25340 |
LY50,YY5#..(T1,T3)..125 助手席側 |
1 | ||
| 48202-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48202-25350 |
LY50,YY5#..(T1,T3)..125 運転席側 |
1 | ||
| 48202-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25340 |
LY50,YY51..(T1,T3)..125 助手席側 |
1 | ||
| 48203-25350 |
LY50,YY51..(T1,T3)..125 運転席側 |
1 | ||
| 48214-25380 |
YY61..ATM;LY50,YY5#..125..WT1 助手席側 |
1 | ||
| 48214-25390 |
YY61..ATM;LY50,YY5#..125..WT1 運転席側 |
1 | ||
| 48203-25340 |
LY50,YY5#..(T1,T3,TW)..TS |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25340 |
LY50,YY5#..(T1,T3)..125 4枚ﾘｰﾌ |
1 | ||
| 48210-25380 |
YY61..ATM;LY50,YY5#..125..WT1 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,YY51..(T1,T3)..125 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY50,60,YY5#,61..WT1 |
2 | ||
| 48247-36140 |
YY61..ATM;LY50,YY5#..125..WT1 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
