LY50-MDLMT (1987)
Toyota Toyoace/Dyna

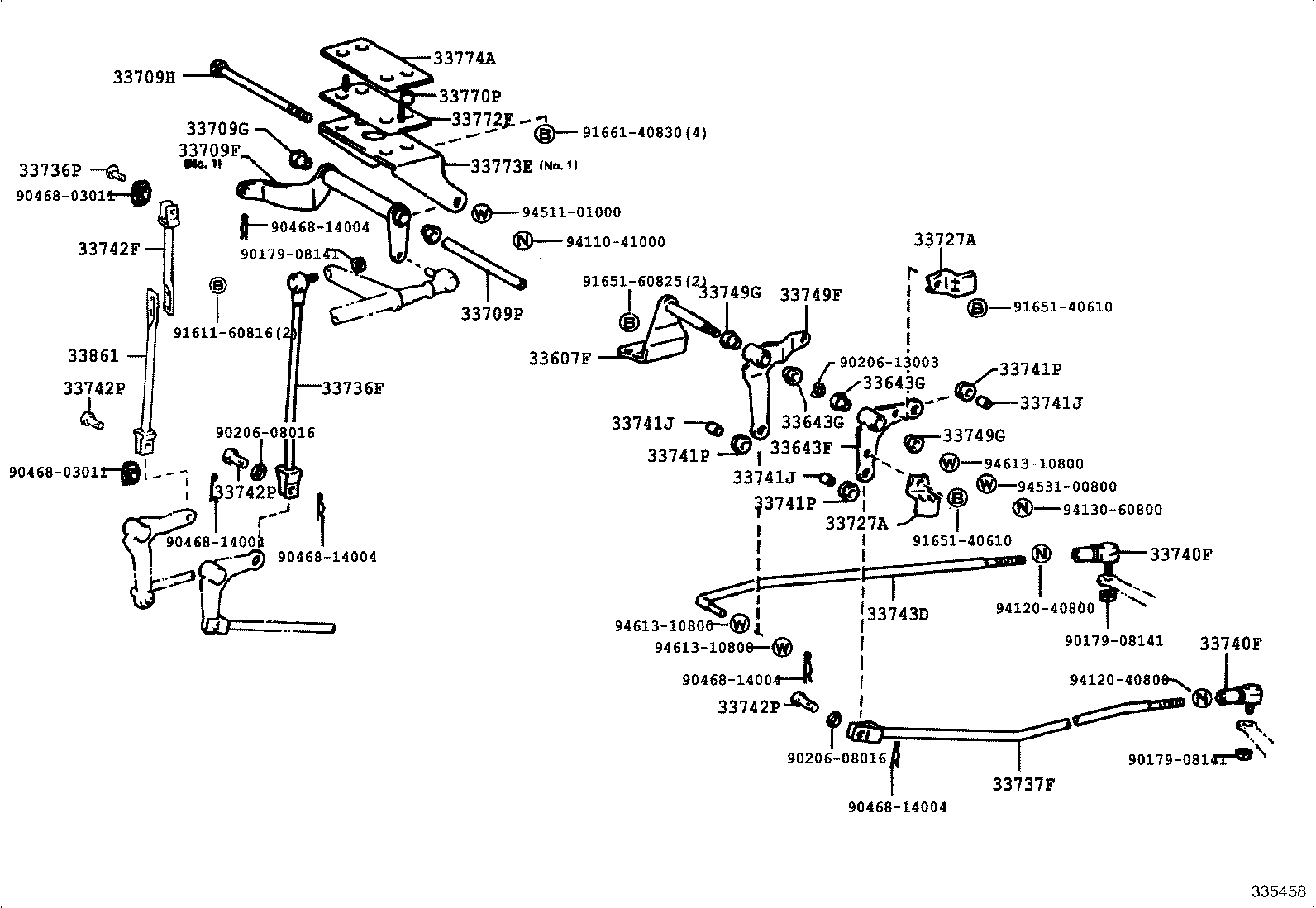

ILLUST NO. 2 OF 2(8708-8808)LY50,YY51..125 ; (8808- )LY50,YY5#..10T,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33607-25060 |
LY50,YY51..125 |
1 | ||
| 33607-25060 |
LY50,YY5#..10T,125 |
1 | ||
| 33643F - LEVER, GEAR SELECTING, NO.3 | ||||
| 33643-25020 |
LY50,YY51..125 |
1 | ||
| 33643-25020 |
LY50,YY5#..10T,125 |
1 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61..MTM |
2 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61..MTM |
2 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-25140 |
LY50,YY5#..10T,125 NO.1 |
1 | ||
| 33709-25141 |
LY50,YY52..10T,125 NO.1 |
1 | ||
| 33709-25140 |
LY50,YY51..125 |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
LY5#,6#,YY5#,61 |
2 | ||
| 90386-13020 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90105-10103 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10075 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY5#,6# |
2 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY5#,6# |
2 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-25180 |
YY51..125;YY51..10T..IV;LY50,YY52..10T,125 |
1 | ||
| 33790-25180 |
LY50,YY51..125 |
1 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08028 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33701-25190 |
LY50,YY5#..10T,125 |
1 | ||
| 33701-25190 |
LY50,YY51..125 |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LY50,YY5#..10T,125 |
2 | ||
| 33740-26010 |
LY50,YY51..125 |
2 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LY50,YY5#..10T,125 |
2 | ||
| 33740-26010 |
LY50,YY51..125 |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY5#,6#,YY5#,61 |
3 | ||
| 90389-08005 |
LY5#,61,YY5#,61 |
3 | ||
| 90389-08005 |
LY50,YY5#..10T,125 |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY5#,6#,YY5#,61 |
3 | ||
| 90389-08005 |
LY5#,61,YY5#,61 |
3 | ||
| 90389-08005 |
LY50,YY5#..10T,125 |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY5#,6#,YY5#,61 |
3 | ||
| 90389-08005 |
LY5#,61,YY5#,61 |
3 | ||
| 90389-08005 |
LY50,YY5#..10T,125 |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY5#,6#,YY5#,61 |
2 | ||
| 90480-17177 |
LY50,YY5#..10T,125 |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY5#,6#,YY5#,61 |
2 | ||
| 90480-17177 |
LY50,YY5#..10T,125 |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY5#,6#,YY5#,61 |
2 | ||
| 90480-17177 |
LY50,YY5#..10T,125 |
3 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-25140 |
LY50,YY5#..125 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
LY5#,6#,YY5#,61 L=23.4 |
1 | ||
| 90240-08068 |
LY5#,61,YY5#,61..MTM L=24.4 |
1 | ||
| 90240-08042 |
LY50,YY5#..10T,125 L=20 |
1 | ||
| 90240-08042 |
LY50,YY51..125 L=20 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
LY5#,6#,YY5#,61 L=23.4 |
1 | ||
| 90240-08068 |
LY5#,61,YY5#,61..MTM L=24.4 |
1 | ||
| 90240-08042 |
LY50,YY5#..10T,125 L=20 |
1 | ||
| 90240-08042 |
LY50,YY51..125 L=20 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
LY5#,6#,YY5#,61 L=23.4 |
1 | ||
| 90240-08068 |
LY5#,61,YY5#,61..MTM L=24.4 |
1 | ||
| 90240-08042 |
LY50,YY5#..10T,125 L=20 |
1 | ||
| 90240-08042 |
LY50,YY51..125 L=20 |
1 | ||
| 33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33743-25130 |
LY50,YY5#..10T,125 |
1 | ||
| 33743-25130 |
LY50,YY51..125 |
1 | ||
| 33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT) | ||||
| 33749-25020 |
LY50,YY51..125 |
1 | ||
| 33749-25020 |
LY50,YY5#..10T,125 |
1 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13192 |
LY50,YY51..125 |
2 | ||
| 90386-13192 |
LY50,YY5#..10T,125 |
2 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13192 |
LY50,YY51..125 |
2 | ||
| 90386-13192 |
LY50,YY5#..10T,125 |
2 | ||
| 33770P - COLLER (FOR CROSS SHAFT) | ||||
| 90387-09021 |
LY5#,6#,YY5#,61..MTM |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-25010 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-25020 |
LY5#,6#,YY5#,61..MTM NO.1 |
1 | ||
| 33774A - SUPPORT, CROSS SHAFT, NO.2 | ||||
| 33774-25010 |
LY5#,6#,YY5#,61..MTM |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90206-08016 | ||||
| 90206-13003 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||
| 91651-60825 | ||||
| 91661-40830 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94130-60800 | ||||
| 94511-01000 | ||||
| 94531-00800 | ||||
| 94613-10800 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33502-25010 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-10081 |
LY5#,6#,YY5#,61 外径=13.8 |
4 | ||
| 90387-10081 |
LY5#,61,YY52,61..MTM 外径=13.8 |
4 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-17018 |
LY5#,6#,YY5#,61 |
4 | ||
| 90480-17018 |
LY5#,61,YY52,61..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08107 |
LY5#,61,YY52,61..MTM |
1 | ||
| 90101-08107 |
LY5#,6#,YY5#,61 |
1 | ||
| 33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE) | ||||
| 90508-23094 |
LY5#,6#,YY5#,61 |
1 | ||
| 90508-23094 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
LY5#,6#,YY5#,61 |
1 | ||
| 90387-08064 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08065 |
LY5#,6#,YY5#,61 下側 |
1 | ||
| 90387-08063 |
LY5#,6#,YY5#,61 上側 |
1 | ||
| 90387-08063 |
LY5#,61,YY52,61..MTM 上側 |
1 | ||
| 90387-08065 |
LY5#,61,YY52,61..MTM 下側 |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08065 |
LY5#,6#,YY5#,61 下側 |
1 | ||
| 90387-08063 |
LY5#,6#,YY5#,61 上側 |
1 | ||
| 90387-08063 |
LY5#,61,YY52,61..MTM 上側 |
1 | ||
| 90387-08065 |
LY5#,61,YY52,61..MTM 下側 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33501-25090 |
LY5#,61,YY5#,61 |
1 | ||
| 33501-25090 |
LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33501-25090 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY5#,6#,YY5#,61 |
2 | ||
| 96711-24018 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY5#,6#,YY5#,61 |
2 | ||
| 96711-24018 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401006 |
LY5#,6#,YY5#,61..DYN BROWN,TRIM4# |
1 | ||
| 33504-2401048 |
LY5#,61,YY5#,61 GRAY,TRIM1# |
1 | ||
| 33504-35030B1 |
LY5#,61,YY5#,61..MTM BLUISH GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-25010 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33506-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-25020 |
LY5#,6#,YY5#,61 |
1 | ||
| 33531-25020 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33542 - KNOB, SPRING BACK SHIFT LEVER | ||||
| 33542-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33542-25010 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) | ||||
| 90159-40109 |
LY5#,61,YY52,61..MTM |
2 | ||
| 90159-40109 |
LY5#,6#,YY5#,61 |
2 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-25011 |
LY5#,61,YY5#,61 |
1 | ||
| 33555-25030 |
LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33555-25031 |
LY5#,61,YY5#,61 |
1 | ||
| 33555-25031 |
LY5#,61,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33555-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33555-25031 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-25141 |
LY5#,6#,YY5#,61 |
1 | ||
| 33710-25142 |
LY5#,61,YY5#,61 |
1 | ||
| 33710-25142 |
LY5#,61,YY52,61..MTM |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 91121-40855 | ||||
| 91121-50850 | ||||
| 91611-60814 | ||||
| 91665-40825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33502-25010 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-10081 |
LY5#,6#,YY5#,61 外径=13.8 |
4 | ||
| 90387-10081 |
LY5#,61,YY52,61..MTM 外径=13.8 |
4 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-17018 |
LY5#,6#,YY5#,61 |
4 | ||
| 90480-17018 |
LY5#,61,YY52,61..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY5#,6#,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY5#,61 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08107 |
LY5#,61,YY52,61..MTM |
1 | ||
| 90101-08107 |
LY5#,6#,YY5#,61 |
1 | ||
| 33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE) | ||||
| 90508-23094 |
LY5#,6#,YY5#,61 |
1 | ||
| 90508-23094 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
LY5#,6#,YY5#,61 |
1 | ||
| 90387-08064 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08065 |
LY5#,6#,YY5#,61 下側 |
1 | ||
| 90387-08063 |
LY5#,6#,YY5#,61 上側 |
1 | ||
| 90387-08063 |
LY5#,61,YY52,61..MTM 上側 |
1 | ||
| 90387-08065 |
LY5#,61,YY52,61..MTM 下側 |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08065 |
LY5#,6#,YY5#,61 下側 |
1 | ||
| 90387-08063 |
LY5#,6#,YY5#,61 上側 |
1 | ||
| 90387-08063 |
LY5#,61,YY52,61..MTM 上側 |
1 | ||
| 90387-08065 |
LY5#,61,YY52,61..MTM 下側 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33501-25090 |
LY5#,61,YY5#,61 |
1 | ||
| 33501-25090 |
LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33501-25090 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
LY5#,61,YY5#,61 上側 |
2 | ||
| 90389-11002 |
LY5#,6#,YY5#,61 下側 |
2 | ||
| 90386-13192 |
LY5#,6#,YY5#,61 上側 |
2 | ||
| 90386-13007 |
LY5#,61,YY52,61..MTM 上側 |
2 | ||
| 90389-11002 |
LY5#,61,YY52,61..MTM 下側 |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY5#,6#,YY5#,61 |
2 | ||
| 96711-24018 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY5#,6#,YY5#,61 |
2 | ||
| 96711-24018 |
LY5#,61,YY52,61..MTM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401006 |
LY5#,6#,YY5#,61..DYN BROWN,TRIM4# |
1 | ||
| 33504-2401048 |
LY5#,61,YY5#,61 GRAY,TRIM1# |
1 | ||
| 33504-35030B1 |
LY5#,61,YY5#,61..MTM BLUISH GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-25010 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33506-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33528 - COVER, CONTROL SHAFT | ||||
| 33528-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-25010 |
LY5#,6#,YY5#,61 |
1 | ||
| 33555-25011 |
LY5#,61,YY5#,61 |
1 | ||
| 33555-25030 |
LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33555-25031 |
LY5#,61,YY5#,61 |
1 | ||
| 33555-25031 |
LY5#,61,YY5#,61 ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33555-25031 |
LY5#,61,YY52,61..MTM |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-25141 |
LY5#,6#,YY5#,61 |
1 | ||
| 33710-25142 |
LY5#,61,YY5#,61 |
1 | ||
| 33710-25142 |
LY5#,61,YY52,61..MTM |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 91121-40855 | ||||
| 91121-50850 | ||||
| 91611-60814 | ||||
| 91665-40825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
