8718 - HEATING & AIR CONDITIONING - COOLER PIPING

LY50-MDLM3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 2L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

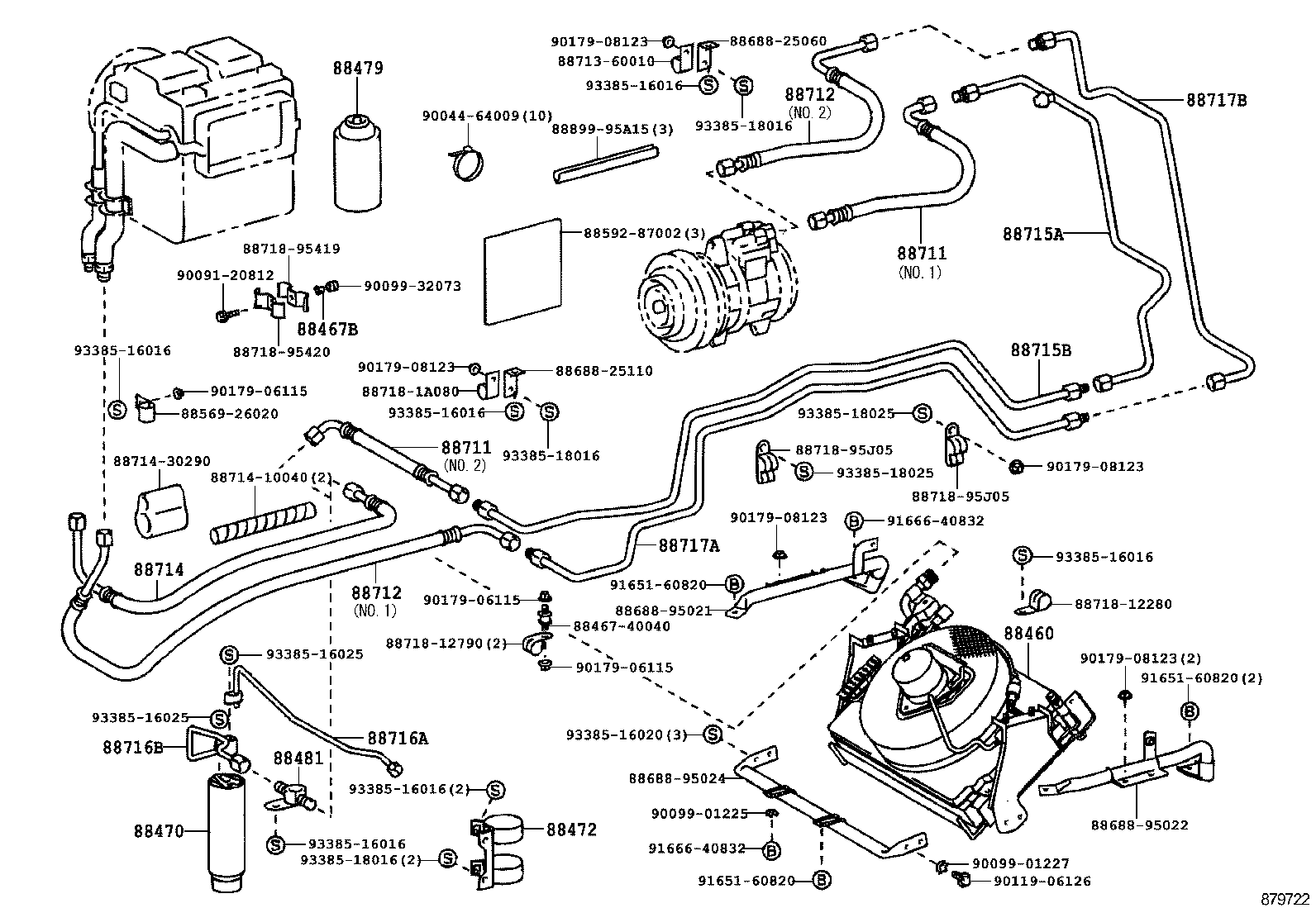

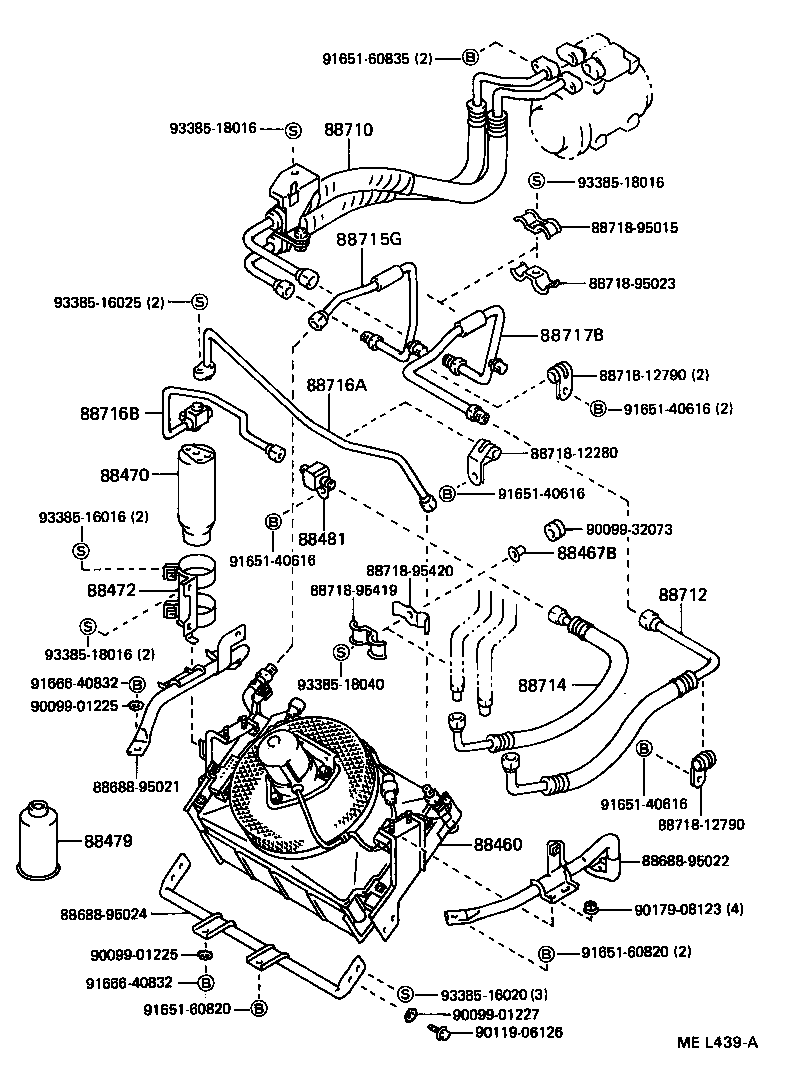

ILLUST NO. 1 OF 3(8808-9301)

Click highlighted areas on diagram

TECS ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88481 - GLASS, SIGHT
88481-87002	LY50..T2..ST..IV	08/1988 - 10/1989	1
88481-87002	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88481-87002	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88715G - TUBE, DISCHARGE, G
88715-95011	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88715-25010	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88715-25010	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88715-95012	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88715-95012	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88715-95012	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88715-25070	LY5#,61	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-25070	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716-95022	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95022	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
Common parts
82711-12200
88688-25030
88688-25060
88688-25070
88688-36120
88688-95021
88688-95022
88688-95024
88713-60010
88714-10040
88714-30290
88718-12280
88718-1A080
88718-95419
88718-95420
88718-95A56
88899-95A15
90099-01225
90099-01227
90099-32073
90119-06126
90179-06115
90179-08123
91651-60820
91666-40832
93381-18040
93385-16016
93385-16020
93385-16025
93385-18016

ILLUST NO. 1 OF 3(9301-9309)

Click highlighted areas on diagram

TECS ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88481 - GLASS, SIGHT
88481-87002	LY50..T2..ST..IV	08/1988 - 10/1989	1
88481-87002	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88481-87002	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-25070	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716-95022	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95022	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717-95015	LY5#,61	08/1988 - 01/1993	1
88717-95014	LY50,60,YY5#,61	08/1987 - 08/1988	1
88717-25090	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88467-40040
88569-26020
88592-87002
88688-25060
88688-25110
88688-95021
88688-95022
88688-95024
88713-60010
88714-10040
88714-30290
88718-12280
88718-12790
88718-1A080
88718-95419
88718-95420
88718-95J05
88899-95A15
90044-64009
90091-20812
90099-01225
90099-01227
90099-32073
90119-06126
90179-06115
90179-08123
91651-60820
91666-40832
93385-16016
93385-16020
93385-16025
93385-18016
93385-18025

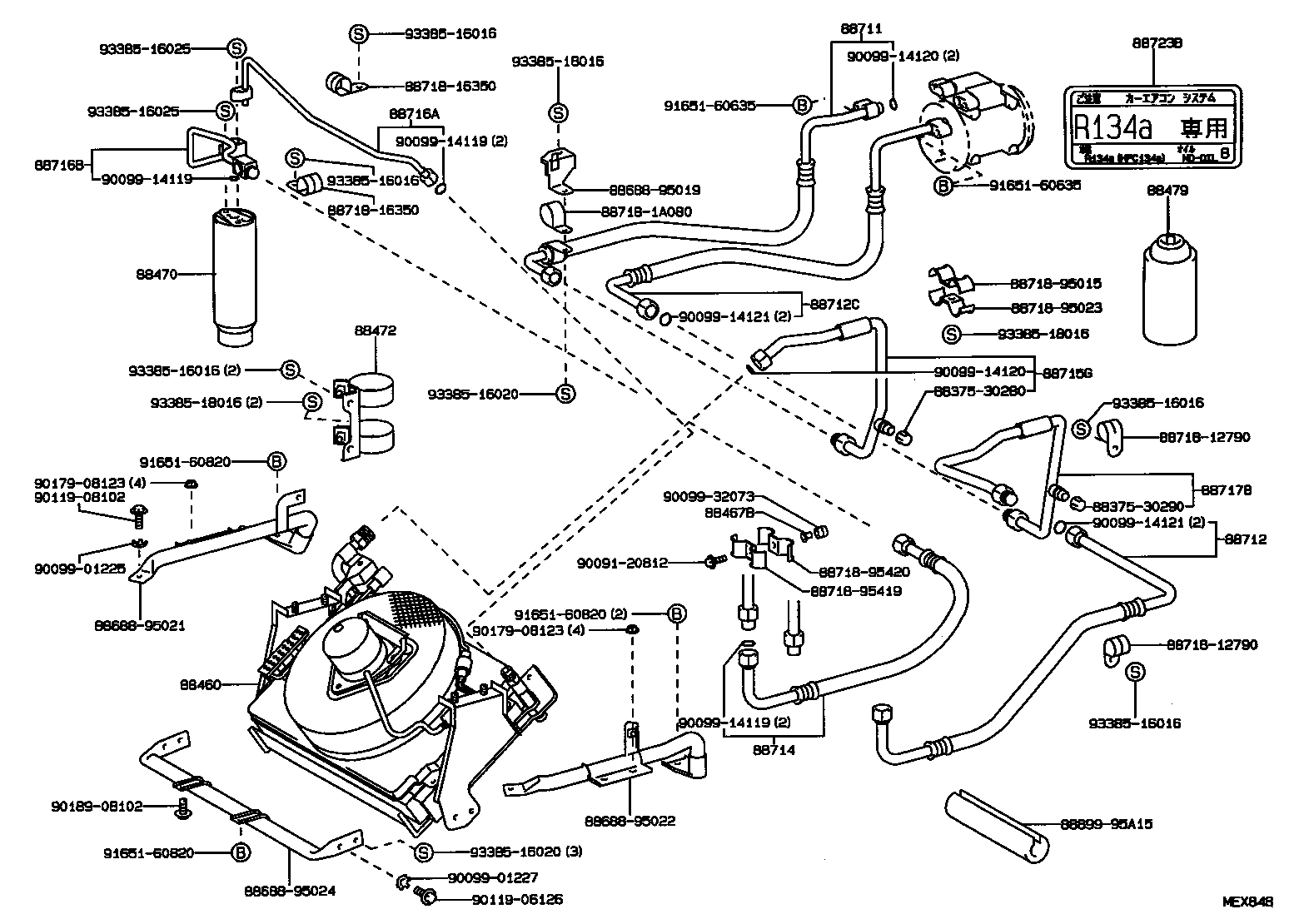

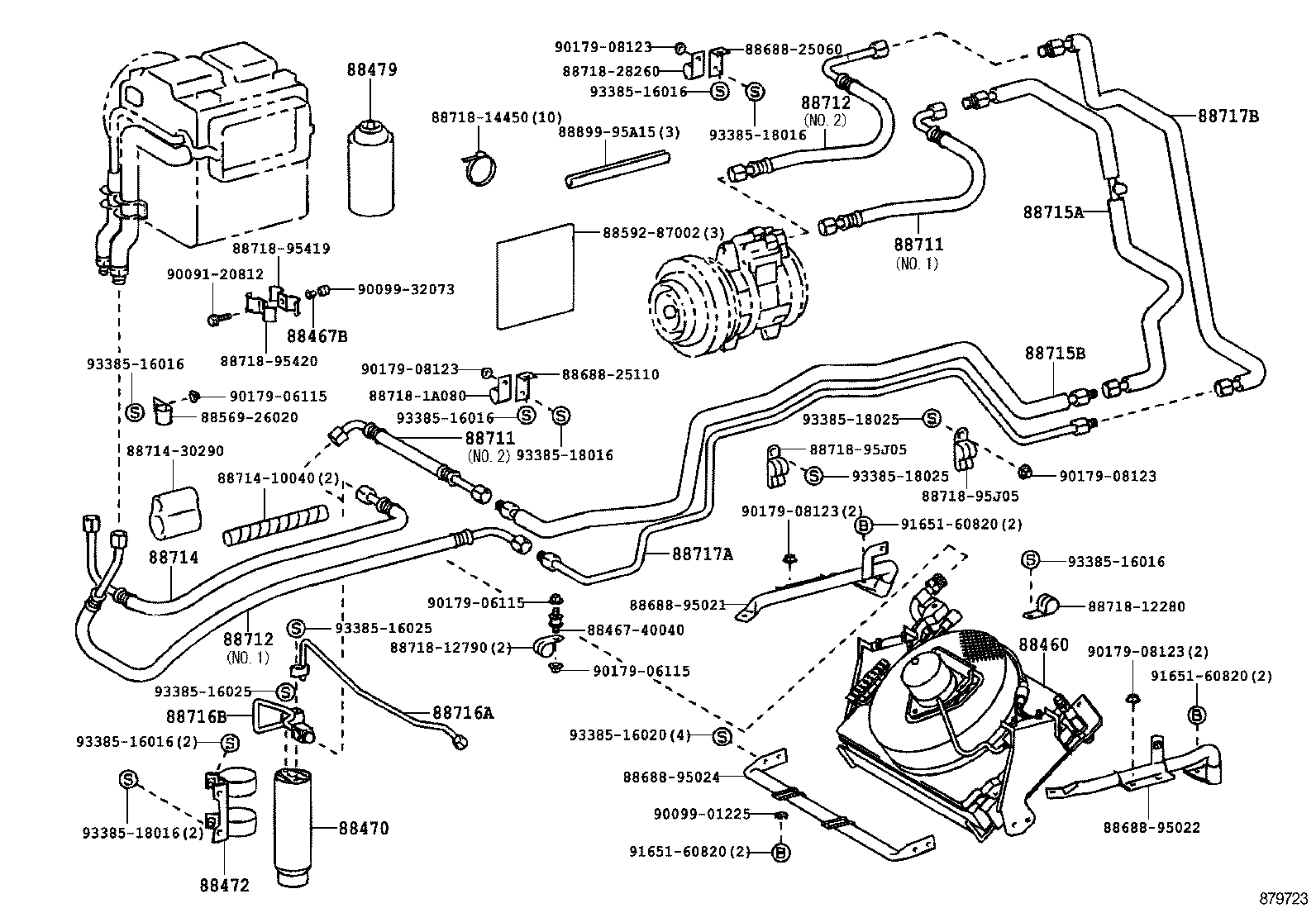

ILLUST NO. 2 OF 3(9309- )

Click highlighted areas on diagram

TECS ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-25070	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716-95022	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95022	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717-95015	LY5#,61	08/1988 - 01/1993	1
88717-95014	LY50,60,YY5#,61	08/1987 - 08/1988	1
88717-25090	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88467-40040
88569-26020
88592-87002
88688-25060
88688-25110
88688-95021
88688-95022
88688-95024
88714-10040
88714-30290
88718-12280
88718-12790
88718-14450
88718-1A080
88718-28260
88718-95419
88718-95420
88718-95J05
88899-95A15
90091-20812
90099-01225
90099-32073
90179-06115
90179-08123
91651-60820
93385-16016
93385-16020
93385-16025
93385-18016
93385-18025

ILLUST NO. 1 OF 3(8708-8808) ; (8808-9309)YY5#,61

Click highlighted areas on diagram

Part #	Description	Period	Qty

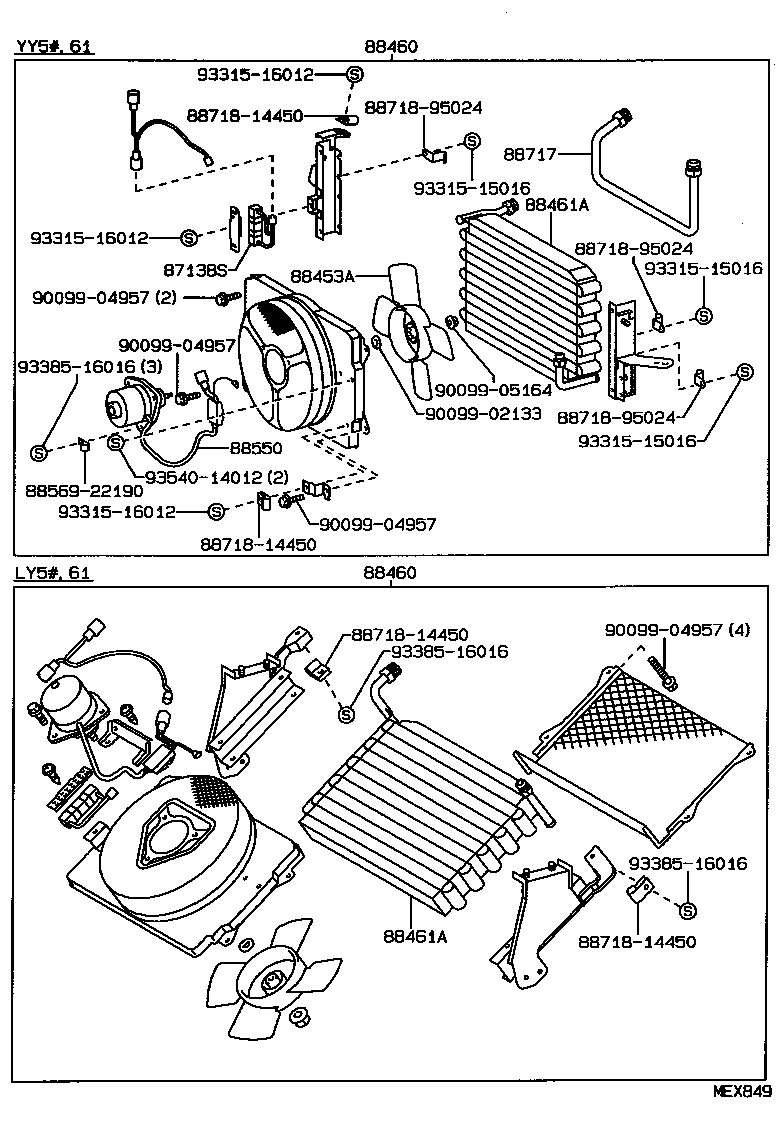

88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-95012	LY50,60	08/1987 - 08/1988	1
88710-95013	LY5#,61	08/1988 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88715G - TUBE, DISCHARGE, G
88715-95011	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88715-25010	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88715-25010	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88715-95012	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88715-95012	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88715-95012	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88715-25070	LY5#,61	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717-95015	LY5#,61	08/1988 - 01/1993	1
88717-95014	LY50,60,YY5#,61	08/1987 - 08/1988	1
88717-25090	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88605-25020
88688-95013
88688-95018
88718-95015
88718-95023
88718-95419
88718-95420
88899-95A15
90099-32073
90179-08123
91651-60835
91666-40832
93381-18040
93385-16016
93385-18016
93385-18035

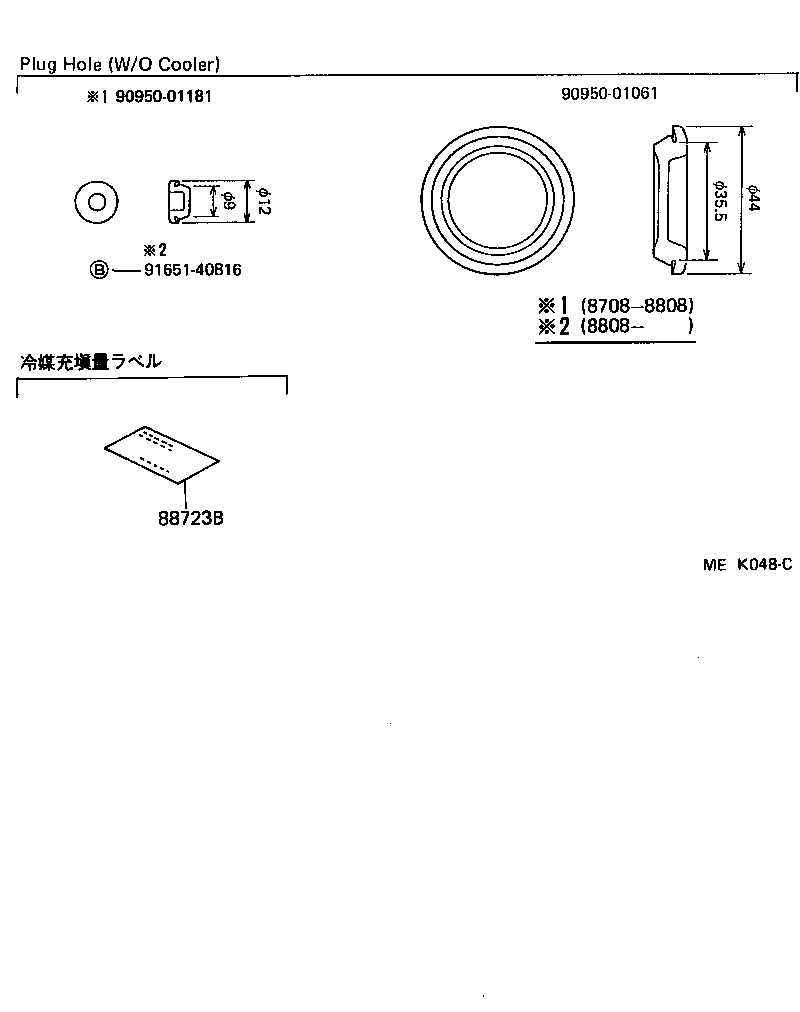

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
90950-01061
90950-01181
91651-40816

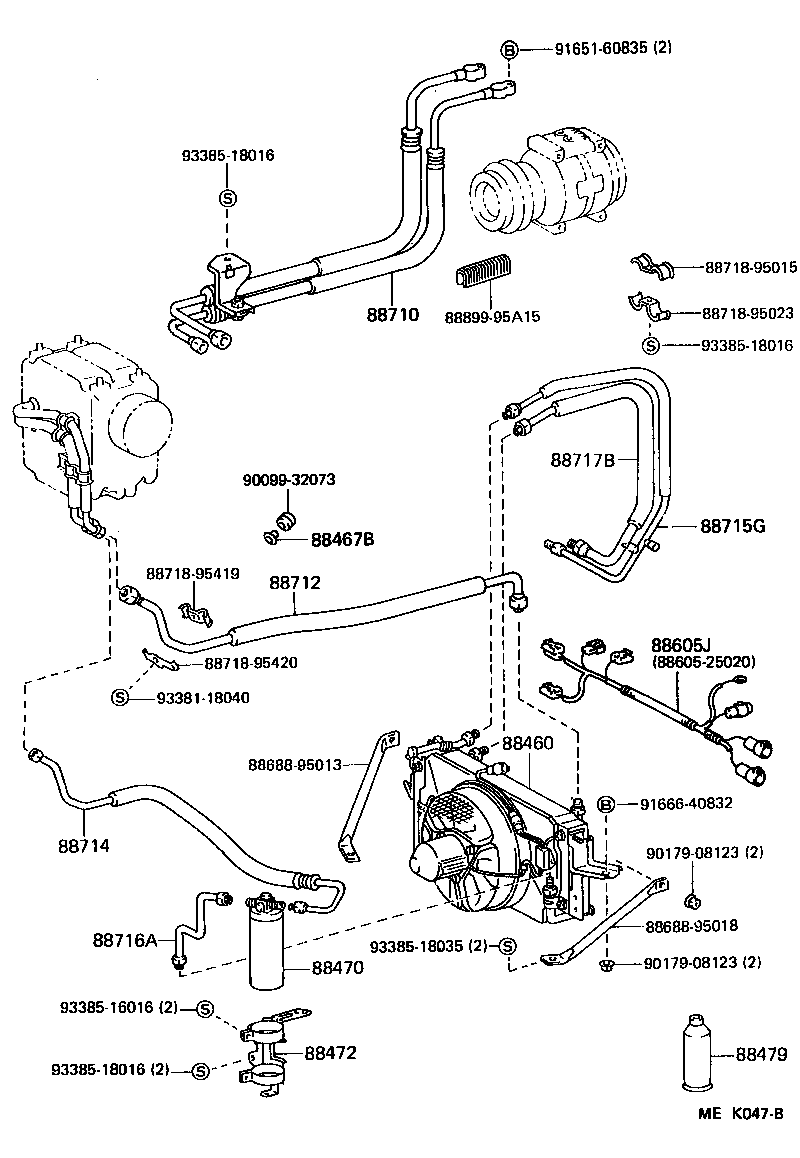

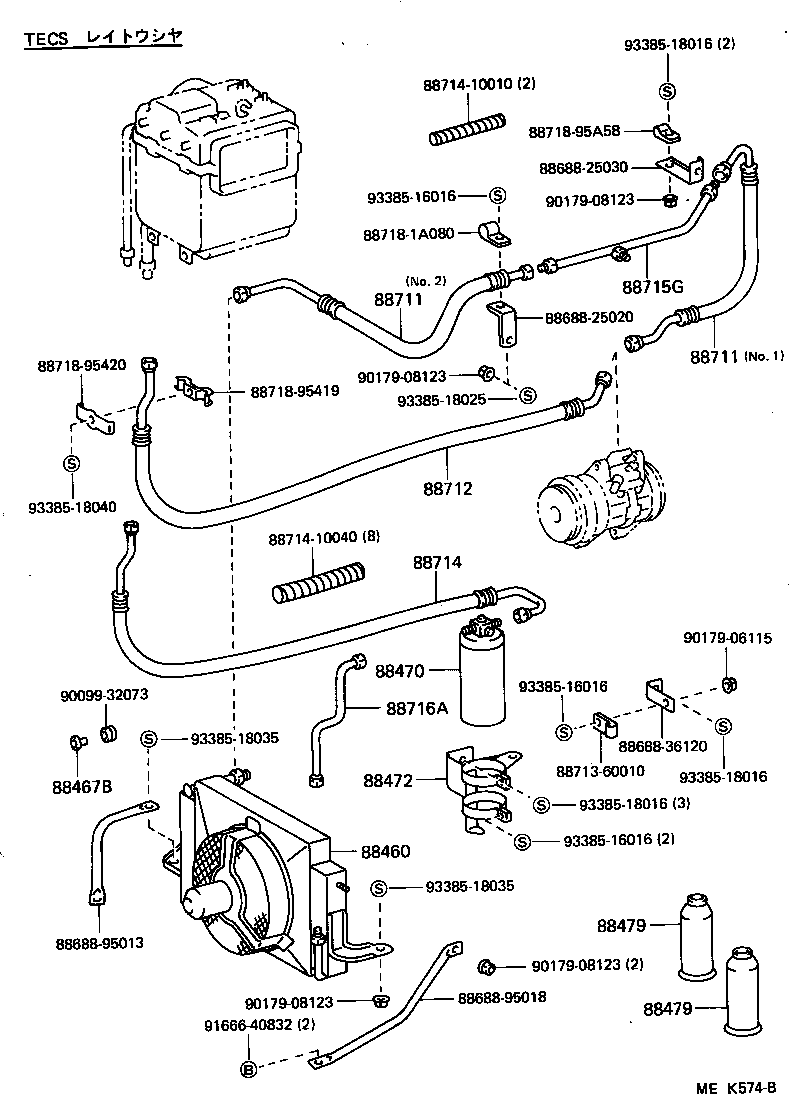

ILLUST NO. 1 OF 3(8708-8808)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88715G - TUBE, DISCHARGE, G
88715-95011	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88715-25010	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88715-25010	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88715-95012	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88715-95012	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88715-95012	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88715-25070	LY5#,61	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88688-25020
88688-25030
88688-36120
88688-95013
88688-95018
88713-60010
88714-10010
88714-10040
88718-1A080
88718-95419
88718-95420
88718-95A58
90099-32073
90179-06115
90179-08123
91666-40832
93385-16016
93385-18016
93385-18025
93385-18035
93385-18040

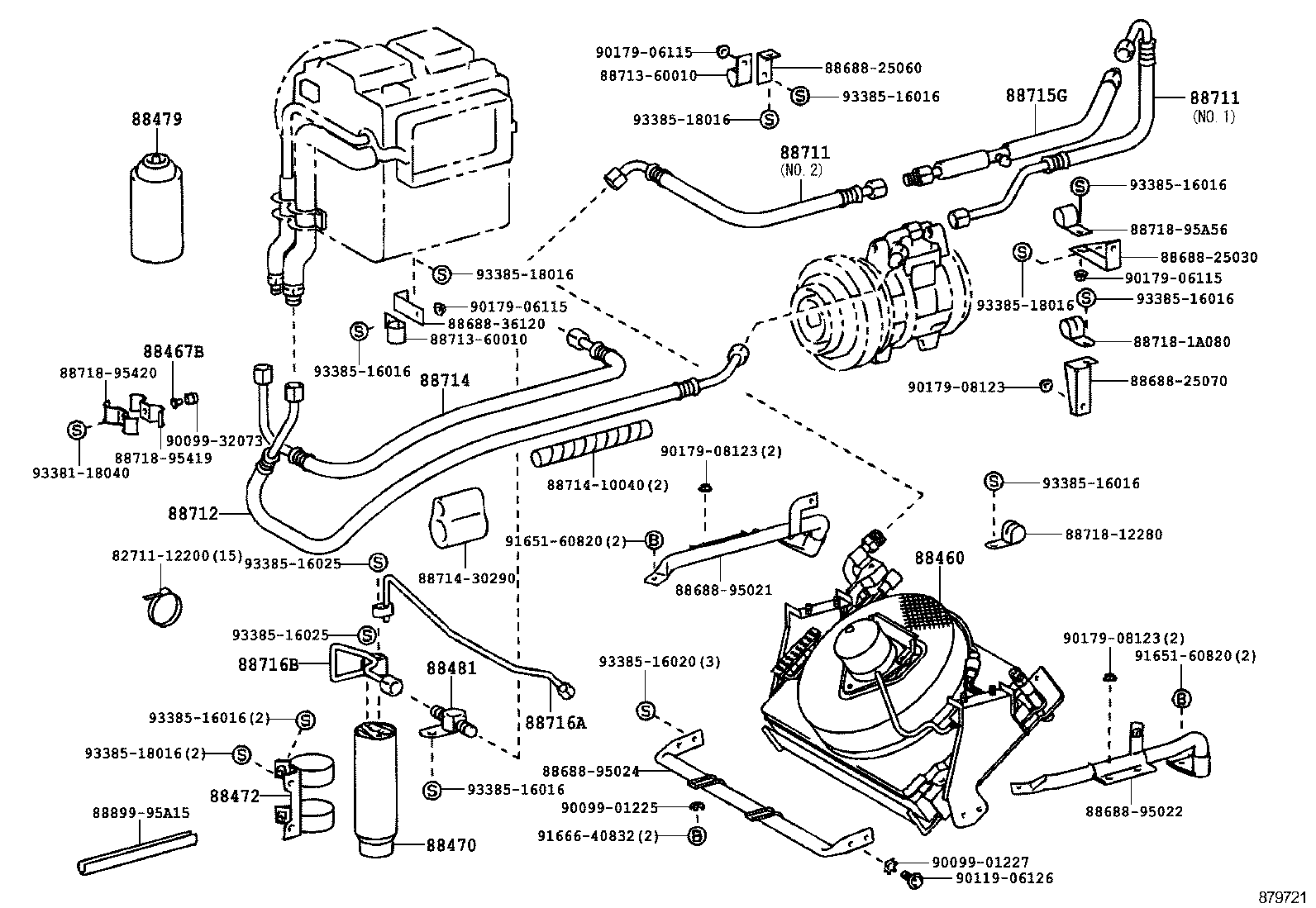

ILLUST NO. 1 OF 3(8808-9309)LY5#,61

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88481 - GLASS, SIGHT
88481-87002	LY50..T2..ST..IV	08/1988 - 10/1989	1
88481-87002	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88481-87002	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-95012	LY50,60	08/1987 - 08/1988	1
88710-95013	LY5#,61	08/1988 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88715G - TUBE, DISCHARGE, G
88715-95011	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88715-25010	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88715-25010	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88715-95012	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88715-95012	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88715-95012	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88715-25070	LY5#,61	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-25070	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716-95022	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95022	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717-95015	LY5#,61	08/1988 - 01/1993	1
88717-95014	LY50,60,YY5#,61	08/1987 - 08/1988	1
88717-25090	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88688-95021
88688-95022
88688-95024
88718-12280
88718-12790
88718-95015
88718-95023
88718-95419
88718-95420
90099-01225
90099-01227
90099-32073
90119-06126
90179-08123
91651-40616
91651-60820
91651-60835
91666-40832
93385-16016
93385-16020
93385-16025
93385-18016
93385-18040

ILLUST NO. 1 OF 3(9309- )LY5#,61

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88467-22010	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88467-22010	LY50..T2..ST..IV DEALER OPTION OR TECS ﾚｲﾄｳｼﾔ	08/1988 - 10/1989	1
88467-22010	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88471-16040	LY50..T2..ST..IV	08/1988 - 10/1989	1
88471-20050	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88471-16040	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88471-16040	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88472-95010	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88472-95011	LY50..T2..ST..IV	08/1988 - 10/1989	1
88472-95011	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LY5#..T2..IV;LY61..15T..IV 300G	09/1991 - 01/1993	1
90986-02001	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV 400G	08/1988 - 10/1989	2
90986-02001	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV 400G	08/1987 - 08/1988	2
90986-02004	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU 250G	01/1993 - 09/1993	2
90986-02004	LY50..T2..ST..IV 250G	08/1988 - 10/1989	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	09/1991 - 01/1993	2
90986-02008	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 200G	09/1993 - 05/1995	2
90986-02004	LY50..T2..IV;LY61..TS..15T..ST..IV 250G	10/1989 - 09/1991	2
90986-02007	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU 250G	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1988 - 10/1989	1
88711-95060	LY50..T2..ST..IV NO.2	08/1988 - 10/1989	1
88711-95050	LY50..T2..ST..IV NO.1	08/1988 - 10/1989	1
88711-95050	LY50..T2..IV;LY61..TS..15T..ST..IV NO.1	10/1989 - 01/1993	1
88711-95043	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88711-95060	LY50..T2..IV;LY61..TS..15T..ST..IV NO.2	10/1989 - 01/1993	1
88711-95043	LY5#..T2..IV;LY61..15T..IV ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	10/1989 - 01/1993	1
88711-25060	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95032	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88712-95033	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88712-25020	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88712-95033	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88712-95033	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88712-25020	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88712-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88712C - HOSE, SUCTION
88712-25080	LY5#,61	09/1993 - 05/1995	1
88712-95035	LY5#,61	08/1988 - 09/1993	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016	LY50..T2..ST..IV	08/1988 - 10/1989	1
88721-95016	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88721-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88721-95016	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88721-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88715G - TUBE, DISCHARGE, G
88715-95011	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88715-25010	LY50..T2..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼB(PSｱﾘ))	08/1988 - 10/1989	1
88715-25010	LY50..T2..IV;LY61..TS..15T..ST..IV ｱﾘ(ﾚｲﾄｳｼﾔｼﾔｼA(PSﾅｼ))	10/1989 - 01/1993	1
88715-95012	LY5#..T2..IV;LY61..15T..IV	10/1989 - 01/1993	1
88715-95012	LY50..T2..ST..IV;LY51,61..(T2,T4)..IV	08/1988 - 10/1989	1
88715-95012	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88715-25070	LY5#,61	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88716-95021	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-95021	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95021	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88716-25050	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022	LY50..T2..ST..IV	08/1988 - 10/1989	1
88716-25070	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88716-95022	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88716-95022	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88717-95015	LY5#,61	08/1988 - 01/1993	1
88717-95014	LY50,60,YY5#,61	08/1987 - 08/1988	1
88717-25090	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
Common parts
88375-30280
88375-30290
88688-95019
88688-95021
88688-95022
88688-95024
88718-12790
88718-16350
88718-1A080
88718-95015
88718-95023
88718-95419
88718-95420
88899-95A15
90091-20812
90099-01225
90099-01227
90099-14119
90099-14120
90099-14121
90099-32073
90119-06126
90119-08102
90179-08123
90189-08102
91651-60635
91651-60820
93385-16016
93385-16020
93385-16025
93385-18016
93885-16025

(9309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88460 - CONDENSER ASSY, COOLER
88460-95015	LY50..T2..ST..IV	08/1988 - 10/1989	1
88460-95017	YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV	08/1987 - 08/1988	1
88460-25030	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	09/1993 - 05/1995	1
88460-95015	LY50..T2..IV;LY61..TS..15T..ST..IV	10/1989 - 01/1993	1
88460-95015	LY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU	01/1993 - 09/1993	1
88461A - CORE, COOLER CONDENSER
88461-25020	LY5#,61	09/1993 - 05/1995	1
88461A - CORE, COOLER CONDENSER
88461-25020	LY5#,61	09/1993 - 05/1995	1
Common parts
88569-22190
88718-14450
88718-95024
90099-02133
90099-04957
90099-05164
93315-15016
93315-16012
93385-16016
93540-14012

LY50-MDLM3 (1987)

ILLUST NO. 1 OF 3(8808-9301)

ILLUST NO. 1 OF 3(9301-9309)

ILLUST NO. 2 OF 3(9309- )

ILLUST NO. 1 OF 3(8708-8808) ; (8808-9309)YY5#,61

ILLUST NO. 2 OF 3(8708- )

ILLUST NO. 1 OF 3(8708-8808)

ILLUST NO. 1 OF 3(8808-9309)LY5#,61

ILLUST NO. 1 OF 3(9309- )LY5#,61

(9309- )

Part Price Details
