LY50-MDLM3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LY5#,6#

Click highlighted areas on diagram

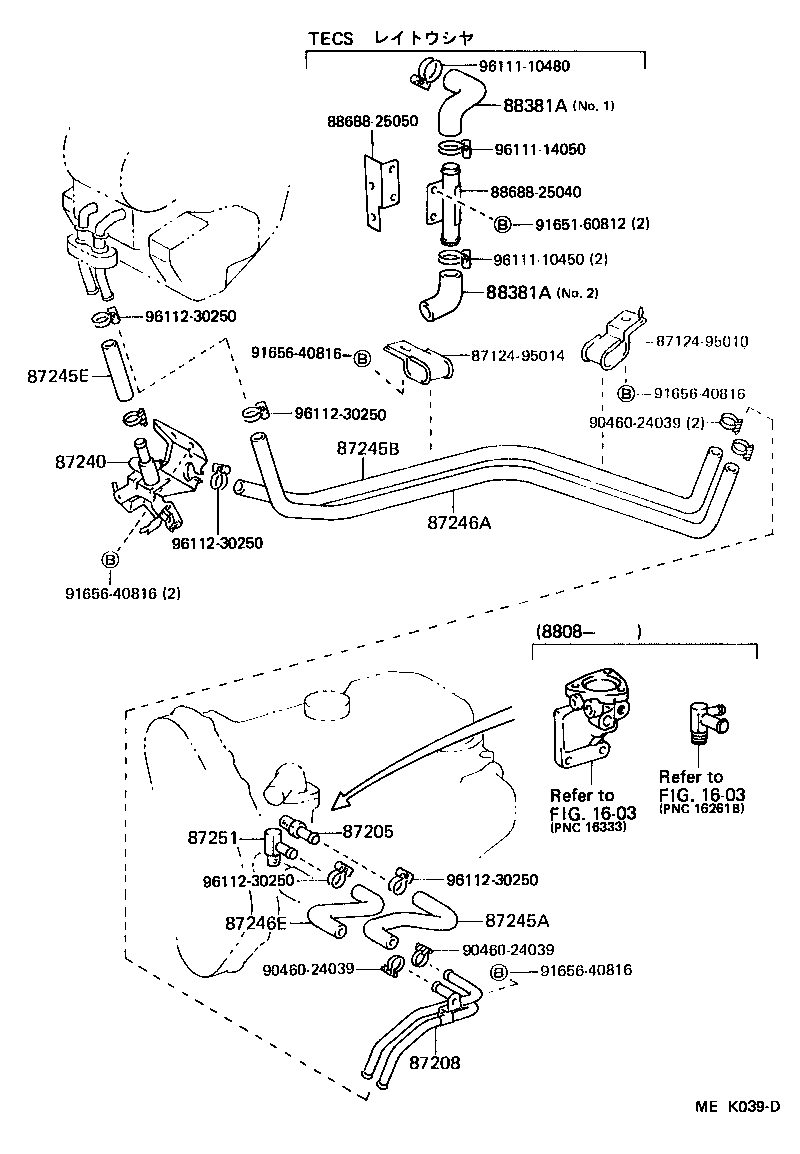

diagram 1603 1603 8712495010 8712495014 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87251 88381A 88381A 8868825040 8868825050 9046024039 9046024039 9046024039 9165160812 9165640816 9165640816 9165640816 9165640816 9611110450 9611110480 9611114050 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY50,60

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95013

LY50,60

 1
87208-95021

LY5#,61

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

LY50,60,YY5#,61

 1
87240-95409

LY5#,61,YY5#,61

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY50,60

 1
87245-95056

LY5#,61

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY5#,6#

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY50,60,YY5#,61

*H,L=60

 1
99556-30135

LY5#,61,YY5#,61

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30740

LY5#,61,YY5#,61

*H,L=740

 1
99556-30980

LY50,60,YY5#,61

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY50,60

 1
87245-95056

LY5#,61

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LY50,60

 1
88381A - HOSE,RADIATOR,OUTLET
88381-25010

LY50..T2..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼB(PSｱﾘ)),NO.1

 1
88381-25020

LY50..T2..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼB(PSｱﾘ)),NO.2

 1
88381-25020

LY50..T2..IV;LY61..TS..15T..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼA(PSﾅｼ)),NO.2

 1
88381-25010

LY50..T2..IV;LY61..TS..15T..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼA(PSﾅｼ)),NO.1

 1
88381A - HOSE,RADIATOR,OUTLET
88381-25010

LY50..T2..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼB(PSｱﾘ)),NO.1

 1
88381-25020

LY50..T2..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼB(PSｱﾘ)),NO.2

 1
88381-25020

LY50..T2..IV;LY61..TS..15T..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼA(PSﾅｼ)),NO.2

 1
88381-25010

LY50..T2..IV;LY61..TS..15T..ST..IV

ｱﾘ(ﾚｲﾄｳｼﾔ ｼﾔｼA(PSﾅｼ)),NO.1

 1
Common parts
87124-95010
87124-95014
88688-25040
88688-25050
90460-24039
91651-60812
91656-40816
96111-10450
96111-10480
96111-14050
96112-30250
Linked diagrams
1603

(8708- )LY5#,6#

Click highlighted areas on diagram

W(REAR HEATER)

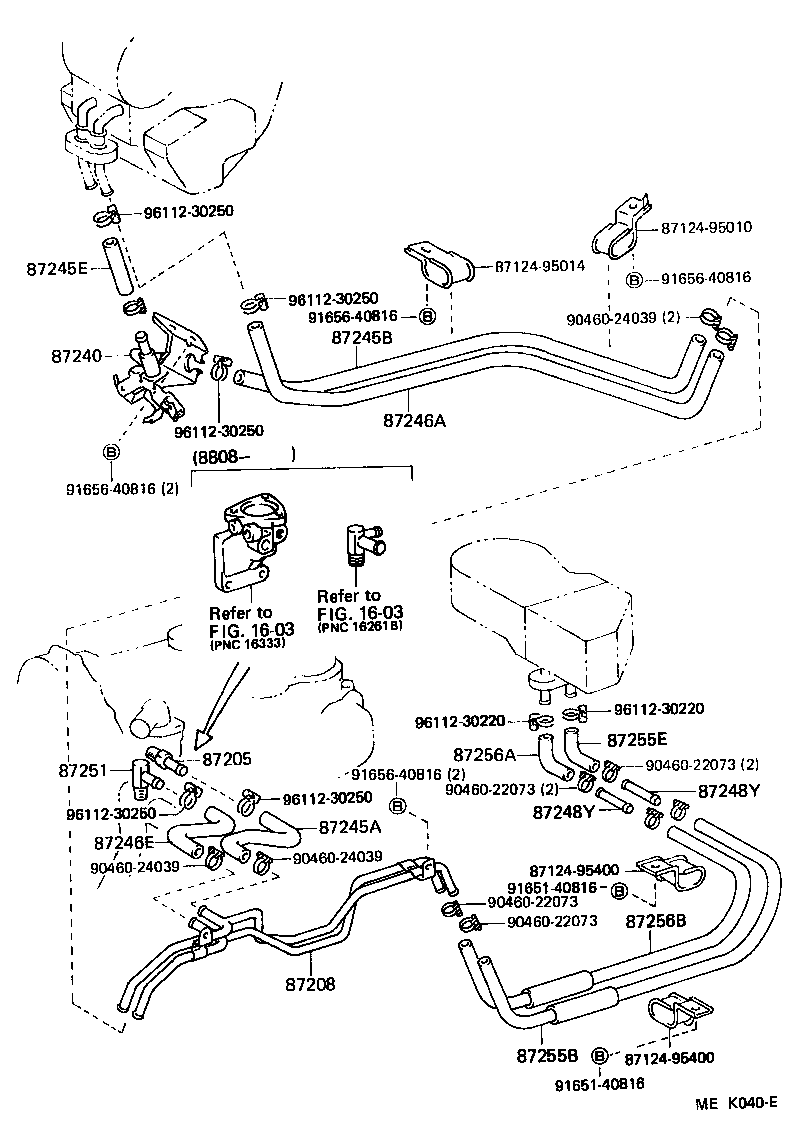

diagram 1603 1603 8712495010 8712495014 8712495400 8712495400 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87248Y 87248Y 87251 87255B 87255E 87256A 87256B 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9165140816 9165140816 9165640816 9165640816 9165640816 9165640816 9611230220 9611230220 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY50,60

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95013

LY50,60

 1
87208-95021

LY5#,61

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

LY50,60,YY5#,61

 1
87240-95409

LY5#,61,YY5#,61

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY50,60

 1
87245-95056

LY5#,61

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY5#,6#

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY50,60,YY5#,61

*H,L=60

 1
99556-30135

LY5#,61,YY5#,61

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30740

LY5#,61,YY5#,61

*H,L=740

 1
99556-30980

LY50,60,YY5#,61

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY50,60

 1
87245-95056

LY5#,61

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LY50,60

 1
Common parts
87124-95010
87124-95014
87124-95400
90460-22073
90460-24039
91651-40816
91656-40816
96112-30220
96112-30250
Linked diagrams
1603
