LY50-MDLM3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L,3L

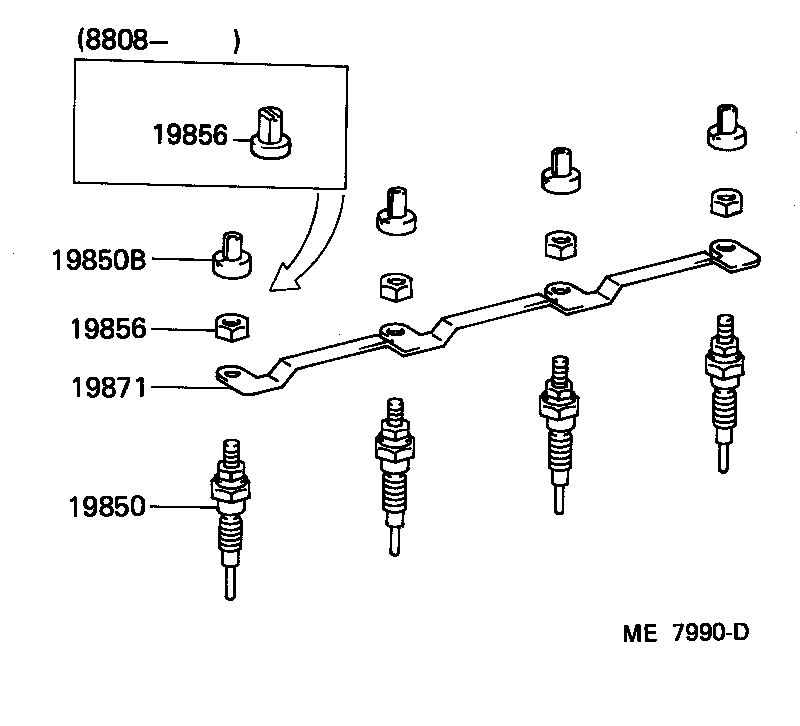

Click highlighted areas on diagram

diagram 19850 19850B 19856 19856 19871
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54090

2L,3L..LY5#,61

*BV−GV=12V−11V

 4
19850-54050

2L..LY50,60

*BV−GV=12V−7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

2L..LY50,60

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LY5#,61

 4
90170-04001

2L..LY50,60

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LY5#,61

 4
90170-04001

2L..LY50,60

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

2L,3L..LY5#,61

 1
19871-54011

2L..LY50,60

 1
