LY50-MDGT (1987)
Toyota Toyoace/Dyna

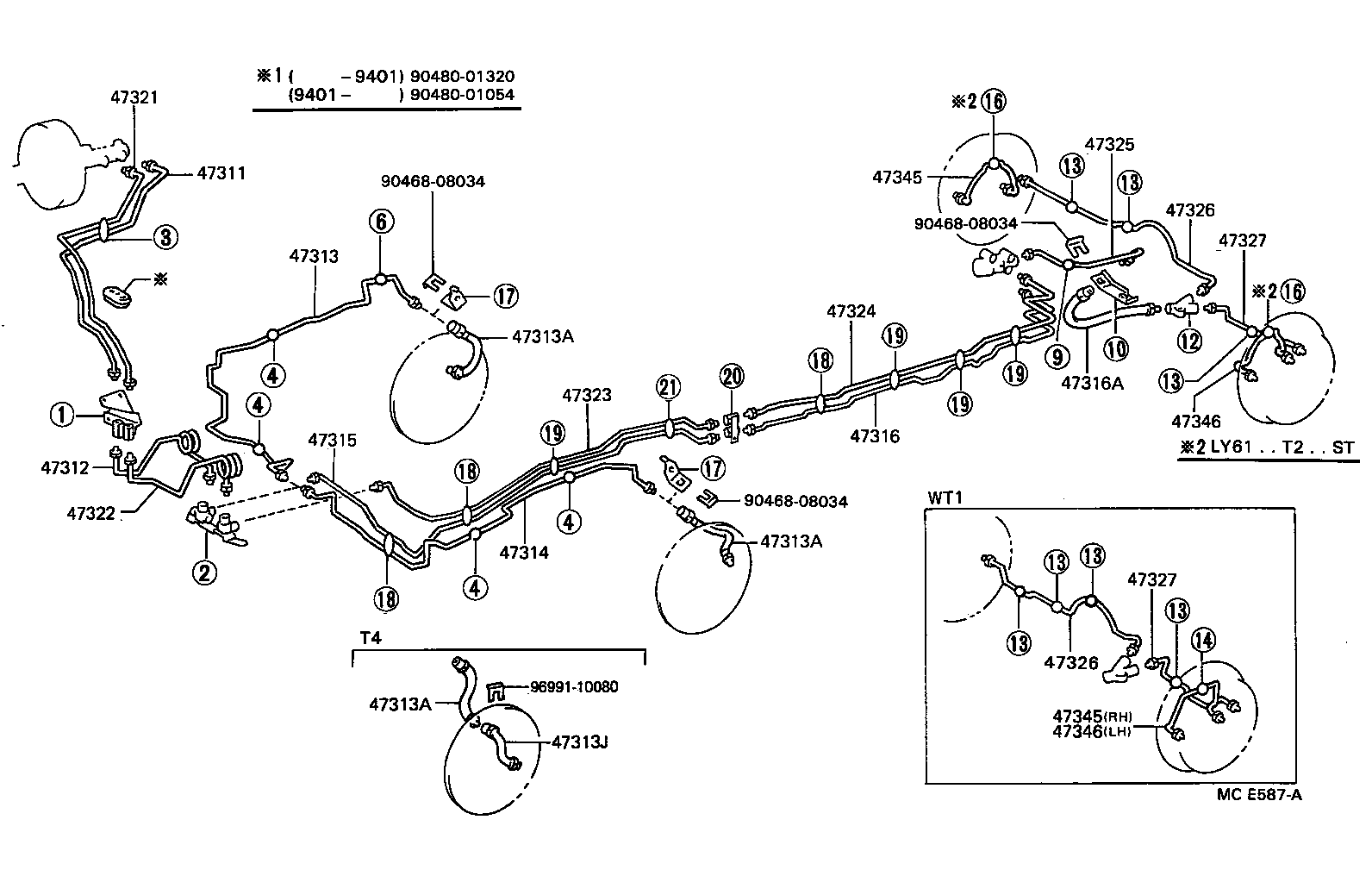

ILLUST NO. 1 OF 3(8708- )
LSPV TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25180 |
LY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25090 |
LY5#,6#,YY5#,61 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25110 |
LY50,60,YY5#,61 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34005 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34005 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34005 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25140 |
LY50,60,YY5#,61 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-25070 |
LY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-25120 |
YY52..WT1;LY50..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33705 |
LY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY51..WT1;LY50,YY51..T1,T3,TW;LY51,YY52,61..ST,WT1 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25040 |
LY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25070 |
LY50,60,YY5#,61 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25110 |
LY5#,6#,YY5#,61 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25220 |
YY52..WT1;LY50..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25190 |
LY50,60,YY5#,61..WT1;LY50,YY51..(T1,T3)..125 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25190 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25190 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25150 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25150 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
| 90480-01054 | ||||
| 90480-01320 | ||||
| 96991-10080 | ||||

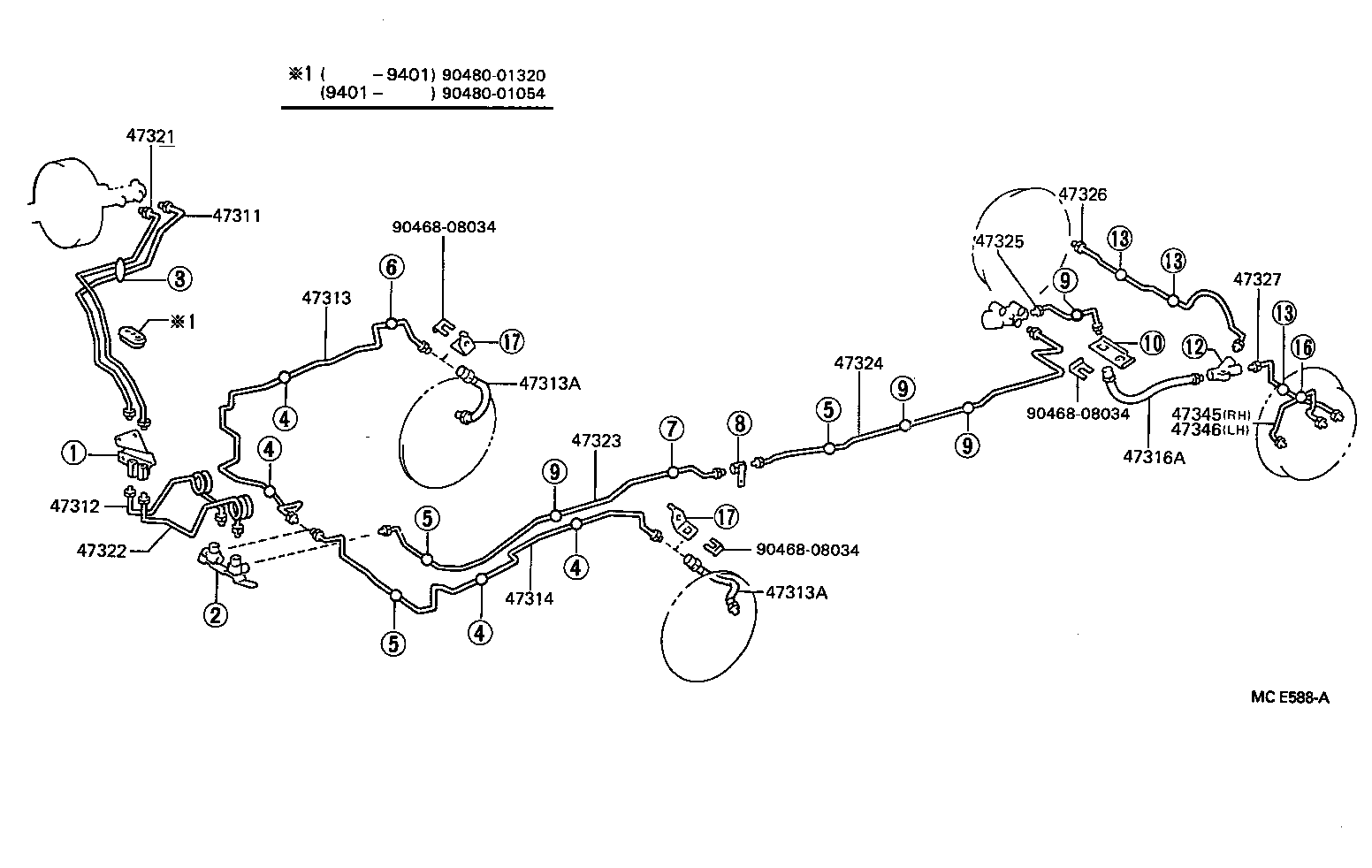

ILLUST NO. 1 OF 3(8708- )
LSP & BV TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25180 |
LY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25090 |
LY5#,6#,YY5#,61 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25110 |
LY50,60,YY5#,61 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34005 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34005 |
LY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25140 |
LY50,60,YY5#,61 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33705 |
LY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY51..WT1;LY50,YY51..T1,T3,TW;LY51,YY52,61..ST,WT1 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25040 |
LY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25070 |
LY50,60,YY5#,61 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25110 |
LY5#,6#,YY5#,61 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25220 |
YY52..WT1;LY50..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25190 |
LY50,60,YY5#,61..WT1;LY50,YY51..(T1,T3)..125 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25190 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25150 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
| 90480-01054 | ||||
| 90480-01320 | ||||

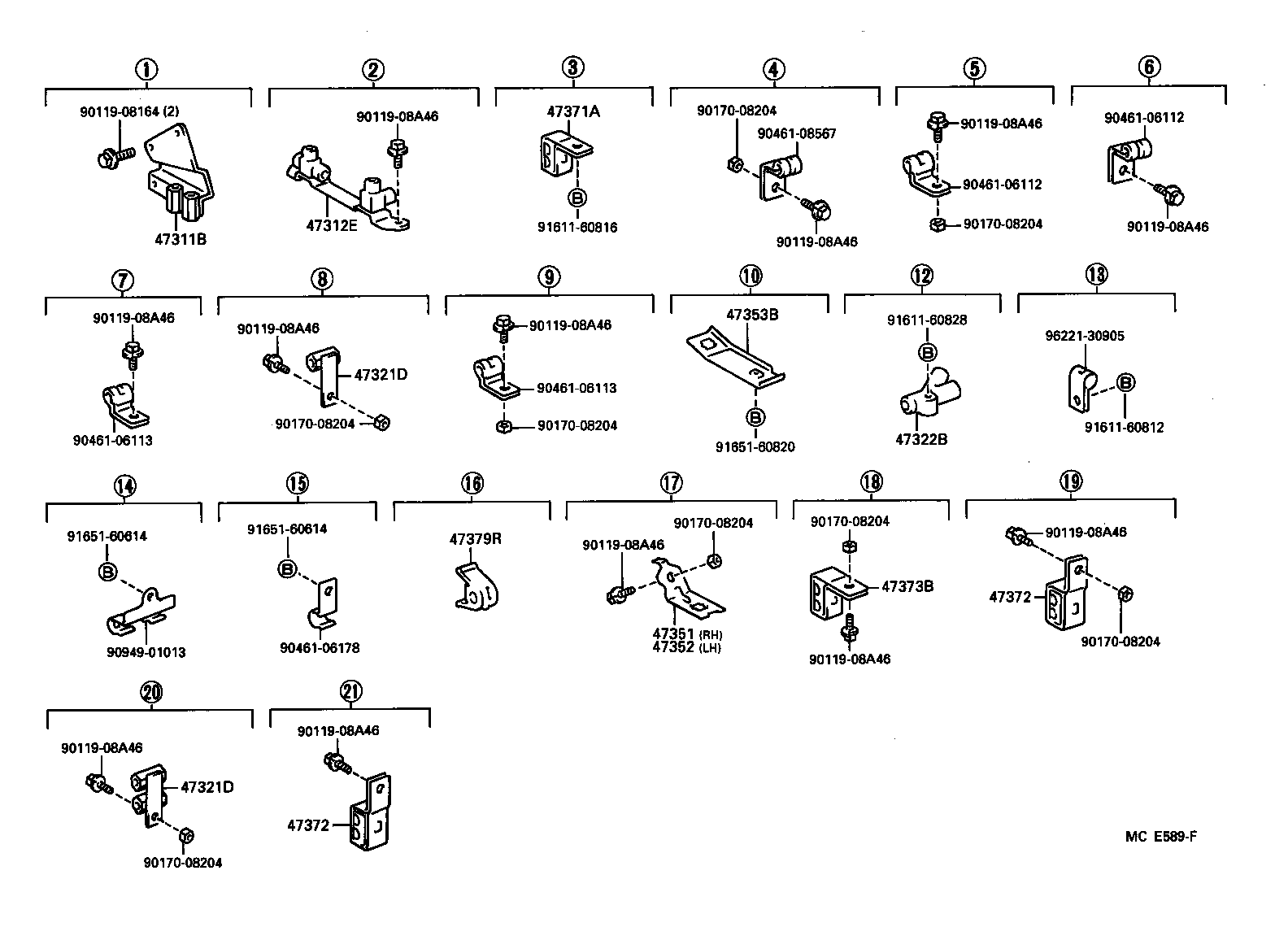

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10129 |
LY5#,6#,YY5#,61 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90414-10015 |
LY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10126 |
LY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10126 |
LY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T) |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LY5#,6#,YY5#,61 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-25080 |
LY50,60,YY5#,61 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-25090 |
LY50,60,YY5#,61 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-25080 |
LY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-25010 |
LY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY50,60,YY52,61..T2,T4 |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY50,60,YY52,61..T2,T4 |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
LY50,60,YY52,61..T2,T4 |
4 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-06178 | ||||
| 90461-08567 | ||||
| 90949-01013 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60828 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 96221-30905 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
LY5#,6#,YY5#,61 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26171 |
LY60..T2..ST;LY50,60,YY5#,61..WT1;LY50,YY51..(T1,T3)..125 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26171 |
LY60..T2..ST;LY50,60,YY5#,61..WT1;LY50,YY51..(T1,T3)..125 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-25020 |
LY6#..TS;LY51,YY61;LY6#..T3..TB;LY50,YY5#..WT1;LY6#..TB..(WT1,WT2);LY50,YY5#..T1,T3,TW |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY5#,6#,YY5#,61 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY5#,6#,YY5#,61 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LY5#,6#,YY5#,61 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY5#,6#,YY5#,61 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY5#,6#,YY5#,61 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-25030 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
LY5#,6#,YY5#,61 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LY5#,6#,YY5#,61 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LY5#,6#,YY5#,61 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY5#,6#,YY5#,61 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY5#,6#,YY5#,61 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LY5#,6#,YY5#,61 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LY5#,6#,YY5#,61 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
