LY50-MDGT (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
Aug 1988
Engine
2L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )MTM

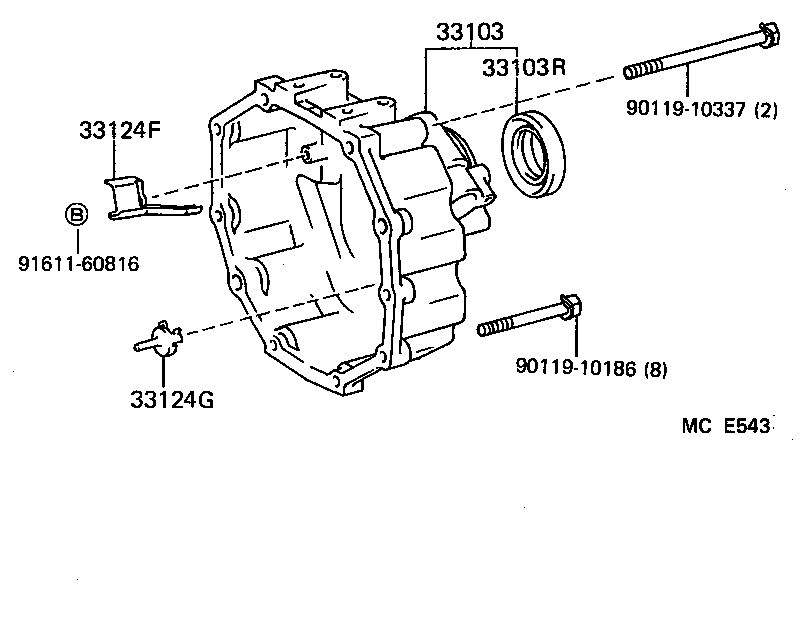

Click highlighted areas on diagram
G5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-25030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38093 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33124-25010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 90119-08371 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
(8708- )MTM

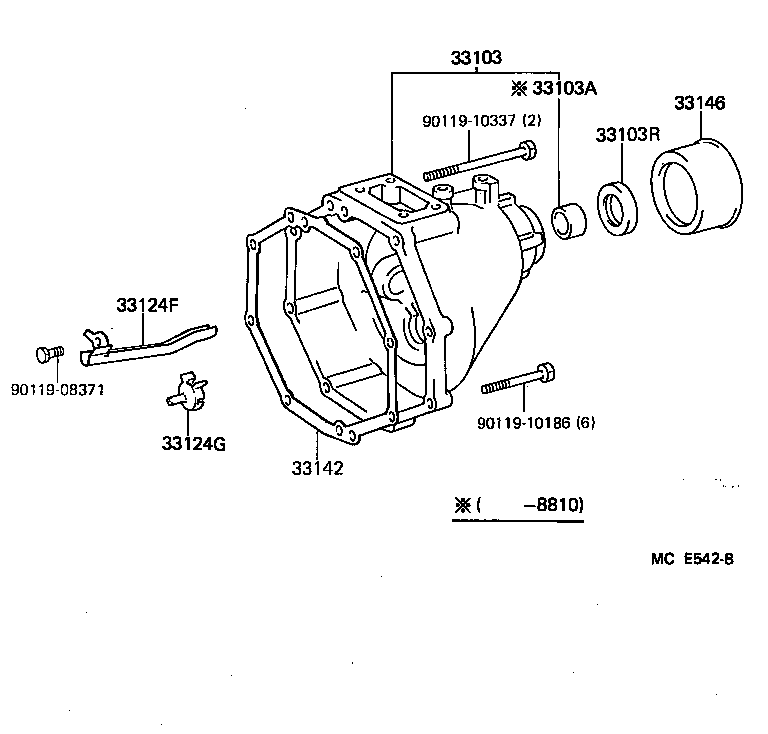

Click highlighted areas on diagram
R45#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-25030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38093 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33124-25010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-60816 | ||||
