LY50-MDD3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Aug 1988
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

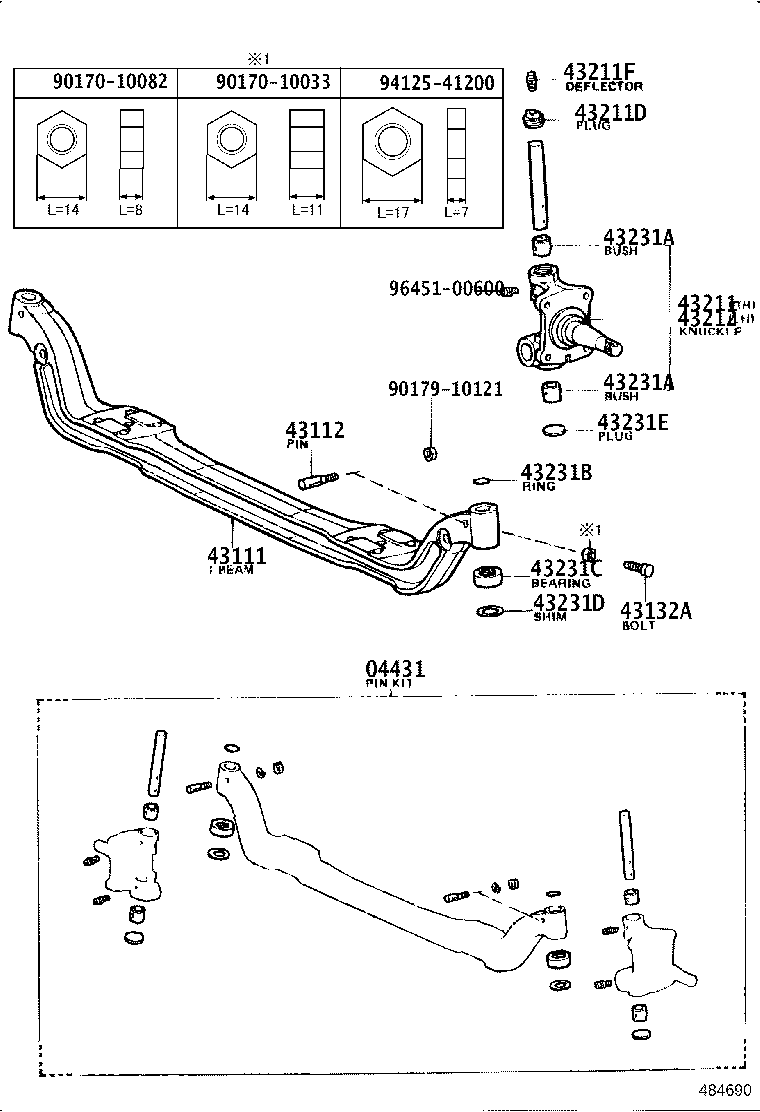

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211F 43212 43231A 43231A 43231B 43231C 43231D 43231E 9017010033 9017010082 9017910121 9412541200 9645100600
Part # Description Qty Price
04431 - PIN KIT, STEERING KNUCKLE KING
04431-25010

LY5#,6#,YY5#,61..ST,WT1

 1
43111 - I BEAM, FRONT AXLE
43111-25040

LY5#,6#,YY5#,61..ST,WT1

 1
43112 - PIN, KING PIN LOCK
43112-25010

LY5#,6#,YY5#,61..ST,WT1

 2
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-10005

LY5#,6#,YY5#,61..ST,WT1

 2
43211 - KNUCKLE, STEERING, RH
43201-25060

LY5#,6#,YY5#,61..ST,WT1

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90345-32001

LY5#,6#,YY5#,61..ST,WT1

 2
43211F - PLUG, BLEEDER (FOR STEERING KNUCKLE)
90930-03031

LY5#,6#,YY5#,61

 2
43212 - KNUCKLE, STEERING, LH
43202-25050

LY5#,6#,YY5#,61..ST,WT1

 1
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73084

LY5#,6#,YY5#,61..ST,WT1

下側

 2
90999-73085

LY5#,6#,YY5#,61..ST,WT1

上側

 2
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73084

LY5#,6#,YY5#,61..ST,WT1

下側

 2
90999-73085

LY5#,6#,YY5#,61..ST,WT1

上側

 2
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
96711-19025

LY5#,6#,YY5#,61..ST,WT1

 2
43231C - BEARING (FOR STEERING KNUCKLE KING PIN)
90367-25002

LY5#,6#,YY5#,61..ST,WT1

 2
43231D - SHIM (FOR KING PIN)
90564-25125

LY5#,6#,YY5#,61..ST,WT1

厚さ=0.10

 1
90564-25126

LY5#,6#,YY5#,61..ST,WT1

厚さ=0.05

 1
90564-25127

LY5#,6#,YY5#,61..ST,WT1

厚さ=0.25

 1
43231E - PLUG (FOR STEERING KNUCKLE)
96412-03500

LY5#,6#,YY5#,61..ST,WT1

 2
Common parts
90170-10033
90170-10082
90179-10121
94125-41200
96451-00600
