LY50-MDBMJ3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 33502 33502A 33502B 33502C 33502C 33502D 33502E 33502G 33503A 33503A 33503F 33503G 33503G 33503G 33503G 33503P 33503P 33504F 33506F 33528 33555 33710 9017908146 9112140855 9112150850 9161160814 9166540825 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-25010

LY50,60,YY5#,61

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-10081

LY50,60,YY5#,61

外径=13.8

 4
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-17018

LY50,60,YY5#,61

 4
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192

LY50,60,YY5#,61

 2
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192

LY50,60,YY5#,61

 2
33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE)
90101-08107

LY50,60,YY5#,61

 1
33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE)
90508-23094

LY50,60,YY52,61

 1
33502G - COLLAR (FOR SHIFT LEVER PLATE)
90387-08064

LY50,60,YY5#,61

 1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

LY50,60,YY5#,61

LWR

 1
90387-08063

LY50,60,YY5#,61

UPR

 1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

LY50,60,YY5#,61

LWR

 1
90387-08063

LY50,60,YY5#,61

UPR

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-25010

LY50,60,YY5#,61

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

LY50,60,YY5#,61

LWR

 2
90386-13192

LY50,60,YY5#,61

UPR

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

LY50,60,YY5#,61

LWR

 2
90386-13192

LY50,60,YY5#,61

UPR

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

LY50,60,YY5#,61

LWR

 2
90386-13192

LY50,60,YY5#,61

UPR

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

LY50,60,YY5#,61

LWR

 2
90386-13192

LY50,60,YY5#,61

UPR

 2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018

LY50,60,YY5#,61

 2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018

LY50,60,YY5#,61

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401044

LY50,60,YY52,61..TOY

BLUE,BLUE

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-25010

LY50,60,YY5#,61

 1
33528 - COVER, CONTROL SHAFT
33528-25010

LY50,60,YY5#,61

 1
33555 - BOOT, SHIFT LEVER
33555-25010

LY50,60,YY5#,61

 1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-25140

LY50,60,YY5#,61

 1
33710-25141

LY50,60,YY5#,61

 1
Common parts
90179-08146
91121-40855
91121-50850
91611-60814
91665-40825
94110-40800
94512-00800

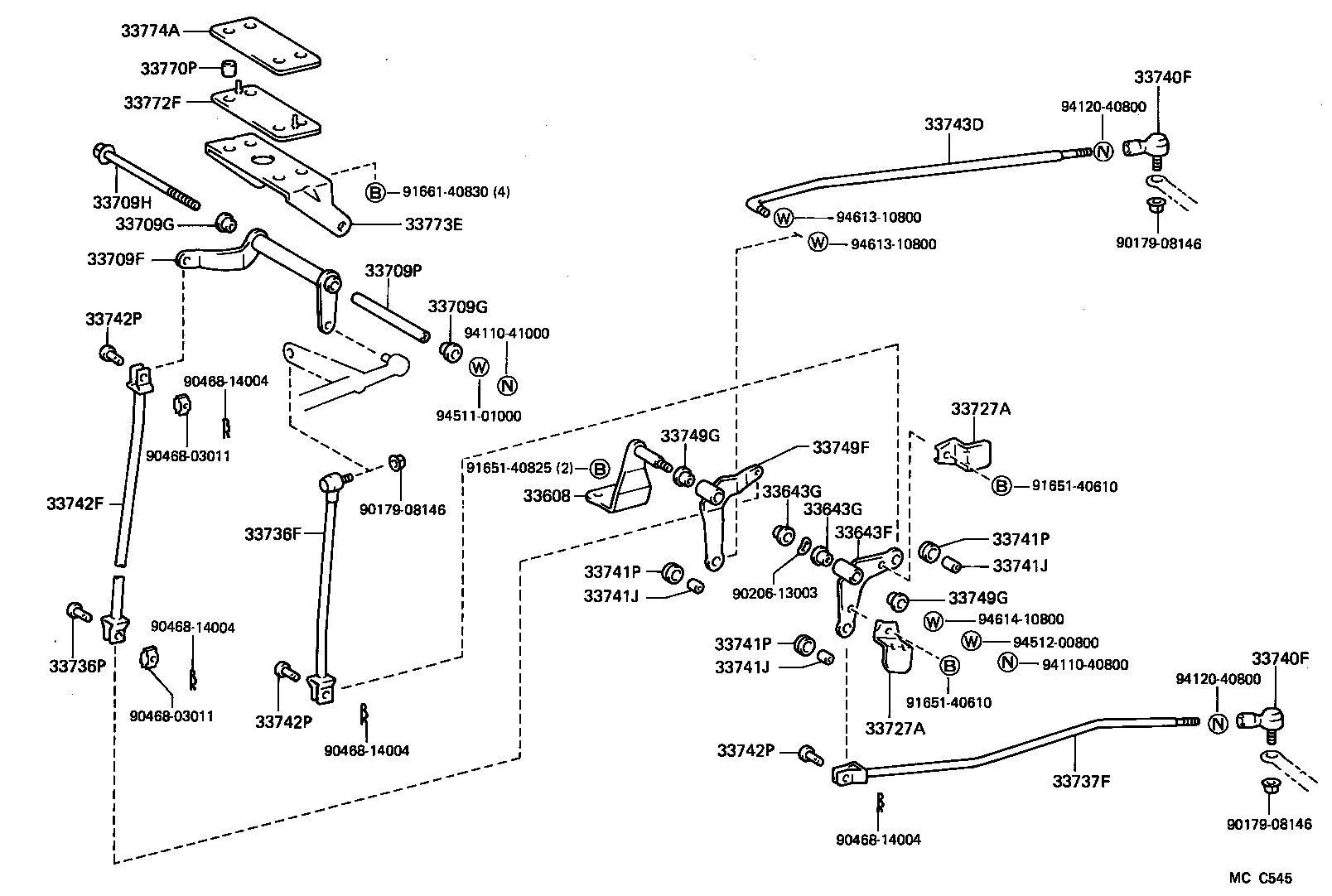

ILLUST NO. 2 OF 2(8508- )LY50..125

Click highlighted areas on diagram

diagram 33608 33643F 33643G 33643G 33709F 33709G 33709G 33709H 33709P 33727A 33727A 33736F 33736P 33737F 33740F 33740F 33741J 33741J 33741J 33741P 33741P 33741P 33742F 33742P 33742P 33742P 33743D 33749F 33749G 33749G 33770P 33772F 33773E 33774A 9017908146 9017908146 9017908146 9020613003 9046803011 9046803011 9046814004 9046814004 9046814004 9046814004 9165140610 9165140610 9165140825 9166140830 9411040800 9411041000 9412040800 9412040800 9451101000 9451200800 9461310800 9461310800 9461410800
Part # Description Qty Price
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33607-25060

LY50..125

 1
33643F - LEVER, GEAR SELECTING, NO.3
33643-25020

LY50..125

 1
33643G - BUSH (FOR GEAR SELECTING LEVER)
90386-13192

LY50,60,YY5#,61

 2
33643G - BUSH (FOR GEAR SELECTING LEVER)
90386-13192

LY50,60,YY5#,61

 2
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-25140

LY50,YY50..125

 1
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

LY50,60,YY5#,61

 2
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

LY50,60,YY5#,61

 2
33709H - BOLT, HEXAGON (FOR CROSS SHAFT)
90105-10103

LY50,60,YY5#,61

 1
33709P - COLLAR (FOR CROSS SHAFT)
90387-10075

LY50,60,YY5#,61

 1
33727A - INSULATOR CONNECTING ROD BUSH HEAT
33727-25020

LY50,60

 2
33727A - INSULATOR CONNECTING ROD BUSH HEAT
33727-25020

LY50,60

 2
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-25180

LY50..125

 1
33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD)
90240-08146

LY50,60,YY5#,61

 1
90240-08028

LY50,60,YY5#,61

 1
33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)
33701-25190

LY50..125

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-26010

LY50,60,YY5#,61

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-26010

LY50,60,YY5#,61

 1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005

LY50,60,YY5#,61

 1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005

LY50,60,YY5#,61

 1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005

LY50,60,YY5#,61

 1
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177

LY50,60,YY5#,61

 1
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177

LY50,60,YY5#,61

 1
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177

LY50,60,YY5#,61

 1
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33742-25140

LY50,YY50..125

 1
33742P - PIN, W/HOLE
90240-08034

LY50,60,YY5#,61

 1
90240-08042

LY50,YY50..125

 1
33742P - PIN, W/HOLE
90240-08034

LY50,60,YY5#,61

 1
90240-08042

LY50,YY50..125

 1
33742P - PIN, W/HOLE
90240-08034

LY50,60,YY5#,61

 1
90240-08042

LY50,YY50..125

 1
33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)
33743-25130

LY50..125

 1
33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT)
33749-25020

LY50..125

 1
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-13192

LY50,YY50..125

 2
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-13192

LY50,YY50..125

 2
33770P - COLLER (FOR CROSS SHAFT)
90387-09021

LY50,60,YY5#,61

 4
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-25010

LY50,60,YY5#,61

 1
33773E - SUPPORT, CROSS SHAFT, NO.1
33773-25020

LY50,60,YY5#,61

 1
33774A - SUPPORT, CROSS SHAFT, NO.2
33774-25010

LY50,60,YY5#,61

 1
Common parts
90179-08146
90206-13003
90468-03011
90468-14004
91651-40610
91651-40825
91661-40830
94110-40800
94110-41000
94120-40800
94511-01000
94512-00800
94613-10800
94614-10800
