LY50-MDBMJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

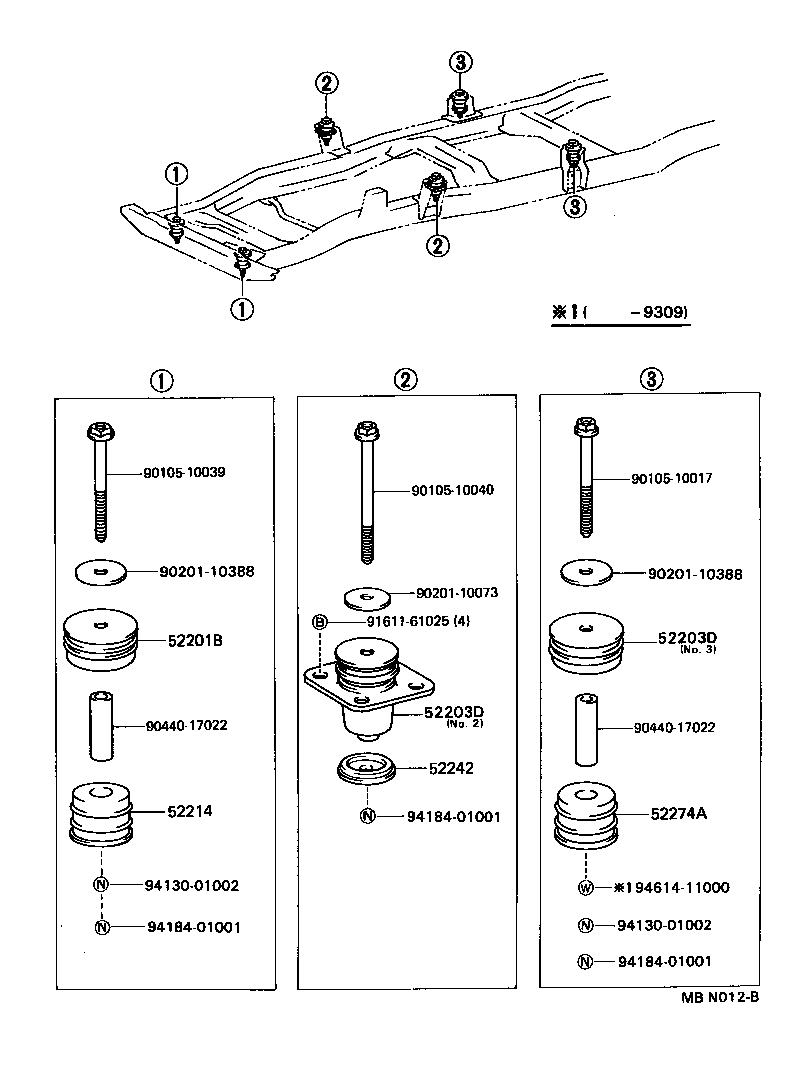

Click highlighted areas on diagram

diagram 52201B 52203D 52203D 52214 52242 52274A 9010510017 9010510039 9010510040 9020110073 9020110388 9020110388 9044017022 9044017022 9161161025 9413001002 9413001002 9418401001 9418401001 9418401001 9461411000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25030

LY5#,6#,YY5#,61

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-25041

LY5#,61,YY5#,61..T1,T2,T3,T4

 2
52203-25040

LY5#,6#,YY5#,61..T1,T2,T3,T4

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-25041

LY5#,61,YY5#,61..T1,T2,T3,T4

 2
52203-25040

LY5#,6#,YY5#,61..T1,T2,T3,T4

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-25030

LY5#,6#,YY5#,61

 2
52242 - CUSHION, CAB REAR MOUNTING REBOUND
52242-25030

LY5#,6#,YY5#,61

 2
Common parts
90105-10017
90105-10039
90105-10040
90201-10073
90201-10388
90440-17022
91611-61025
94130-01002
94184-01001
94614-11000
