LY50-MDBM (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

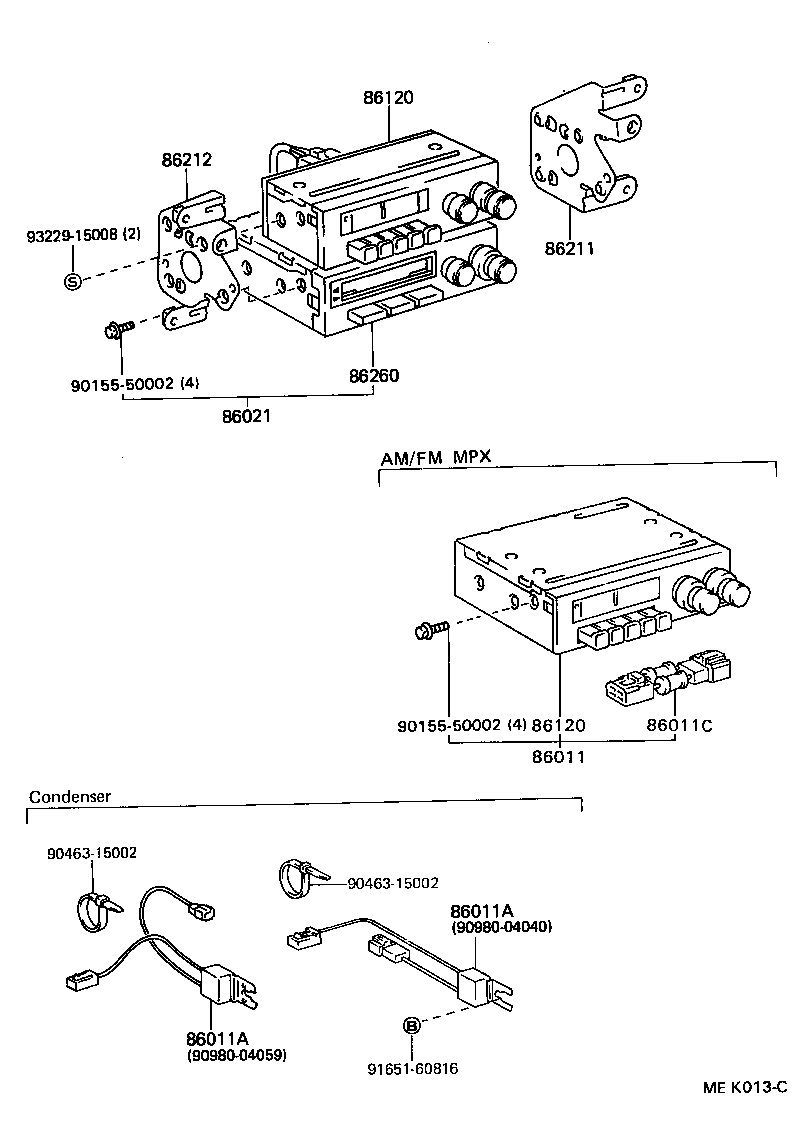

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-95425 |
LY5#,6#,YY5#,61 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LY5#,6# |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
LY5#,6# |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
LY5#,6#,YY5#,61 |
1 | ||
| 90980-05049 |
LY5#,61,YY5#,61 |
1 | ||
| 86021 - TAPE PLAYER AND SETTING PARTS SET | ||||
| 86021-95413 |
LY5#,6#,YY5#,61 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2A160 |
LY5#,61,YY5#,61 MATSUSHITA,AM/FM MPX 5ﾎﾞﾀﾝ |
1 | ||
| 86120-16530 |
LY5#,6#,YY5#,61 MATSUSHITA,ID=5010,AM |
1 | ||
| 86120-89131 |
LY5#,6#,YY5#,61 MATSUSHITA,AM/FM MPX 5ﾎﾞﾀﾝ |
1 | ||
| 86120-37010 |
LY5#,61,YY5#,61 MATSUSHITA,ID=50101,AM |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2A160 |
LY5#,61,YY5#,61 MATSUSHITA,AM/FM MPX 5ﾎﾞﾀﾝ |
1 | ||
| 86120-16530 |
LY5#,6#,YY5#,61 MATSUSHITA,ID=5010,AM |
1 | ||
| 86120-89131 |
LY5#,6#,YY5#,61 MATSUSHITA,AM/FM MPX 5ﾎﾞﾀﾝ |
1 | ||
| 86120-37010 |
LY5#,61,YY5#,61 MATSUSHITA,ID=50101,AM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 86211-37020 |
LY5#,61,YY5#,61 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-37010 |
LY5#,61,YY5#,61 |
1 | ||
| 86212-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-17011 |
LY5#,6#,YY5#,61 |
1 | ||
| 86260-17012 |
LY5#,61,YY5#,61 |
1 | ||
| Common parts | ||||
| 90155-50002 | ||||
| 90463-15002 | ||||
| 90980-04040 | ||||
| 90980-04059 | ||||
| 91651-60816 | ||||
| 93229-15008 | ||||
