LY50-MDBM (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

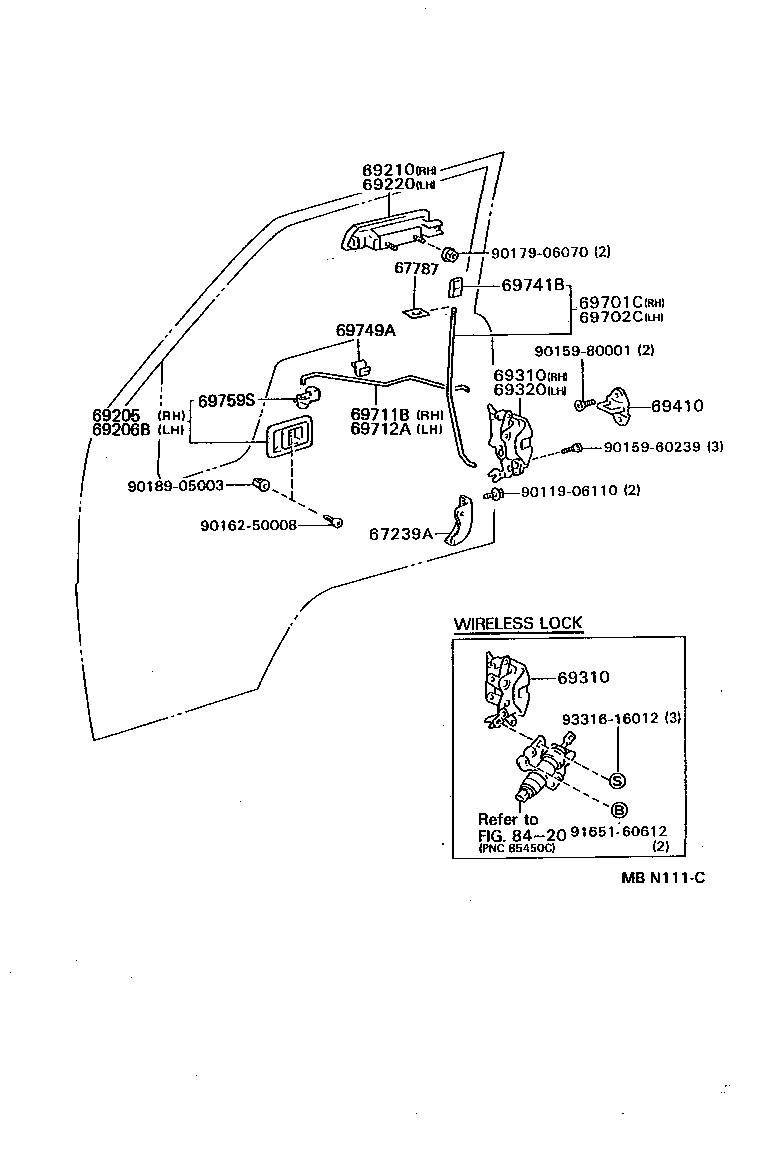

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 67239A 67787 69205 69206B 69210 69220 69310 69310 69320 69410 69701C 69702C 69711B 69712A 69741B 69749A 69759S 8420 9011906110 9015960239 9015980001 9016250008 9017906070 9018905003 9165160612 9331616012
Part # Description Qty Price
67239A - WEIGHT, FRONT DOOR
67239-95401

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB
67787-37020

LY5#,61,YY52,61

 2
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-10040B1

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
69205-1004016

LY5#,6#,YY5#,61..DYN

BROWN,TRIM4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004016

LY5#,6#,YY5#,61..DYN

BROWN,TRIM4#

 1
69206-10040B1

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95400

LY5#,6#,YY5#,61

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LY5#,6#,YY5#,61

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95409

LY5#,6#,YY5#,61

 1
69310-95410

LY5#,6#..T1,T2,T3,T4

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-95410

LY5#,61,YY52,61..CBR,DSL

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-95410

LY50,61..10T,125

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-37010

LY5#,61,YY5#,61

ｱﾘ(*EL)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95409

LY5#,6#,YY5#,61

 1
69310-95410

LY5#,6#..T1,T2,T3,T4

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-95410

LY5#,61,YY52,61..CBR,DSL

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-95410

LY50,61..10T,125

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69310-37010

LY5#,61,YY5#,61

ｱﾘ(*EL)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37010

LY5#,61

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69320-95408

LY5#,6#,YY5#,61

 1
69320-37010

LY5#,61,YY52,61..CBR,DSL

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-89103

LY5#,6#,YY5#,61

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-9540001

LY5#,6#,YY5#,61..DYN

BLACK,TRIM4#

 1
69701-9540001

LY5#,61,YY5#,61

BLACK,TRIM1#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-9540001

LY5#,6#,YY5#,61..DYN

BLACK,TRIM4#

 1
69702-9540001

LY5#,61,YY5#,61

BLACK,TRIM1#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-95403

LY5#,6#,YY5#,61

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-95401

LY5#,6#,YY5#,61

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-2002001

LY5#,61,YY5#,61

BLACK,TRIM1#

 2
69741-2002001

LY61..DYN..125;LY50,YY5#,61..DYN

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-),BLACK,TRIM4#

 1
69741-2002001

LY5#,6#,YY5#,61..DYN

BLACK,TRIM4#

 2
69741-2002001

LY50..DYN..125

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-),BLACK,TRIM4#

 1
69741-3201001

LY5#,61,YY5#,61

BLACK,TRIM1#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

LY5#,6#,YY5#,61

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20070

LY5#,6#,YY5#,61

左側

 1
69759-20060

LY5#,6#,YY5#,61

右側

 1
Common parts
90119-06110
90159-60239
90159-80001
90162-50008
90179-06070
90189-05003
91651-60612
93316-16012
Linked diagrams
8420

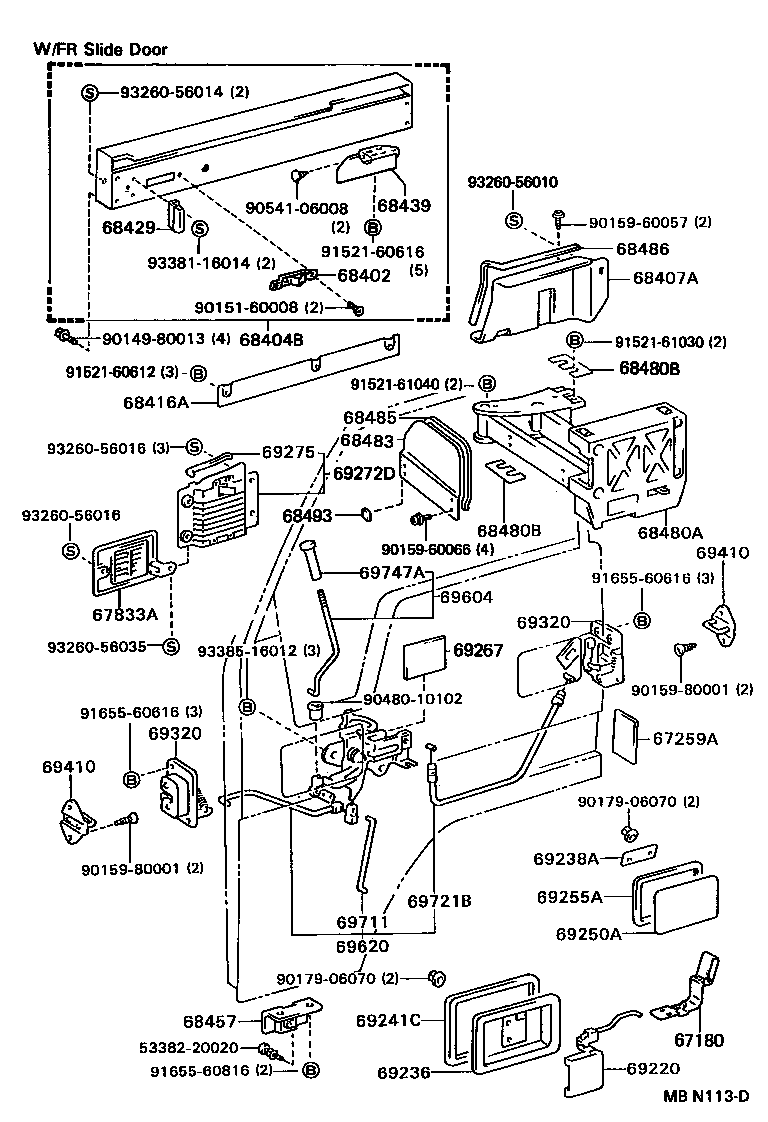

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 5338220020 67180 67259A 67833A 68402 68404B 68407A 68416A 68429 68439 68457 68480A 68480B 68480B 68483 68485 68486 68493 69220 69236 69238A 69241C 69250A 69255A 69267 69272D 69275 69320 69320 69410 69410 69604 69620 69711 69721B 69747A 9014980013 9015160008 9015960057 9015960066 9015980001 9015980001 9017906070 9017906070 9048010102 9054106008 9152160612 9152160616 9152161030 9152161040 9165560616 9165560616 9165560816 9326056010 9326056014 9326056016 9326056016 9326056035 9338116014 9338516012
Part # Description Qty Price
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LY5#,6#,YY5#,61

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37010

LY5#,61

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69320-95408

LY5#,6#,YY5#,61

 1
69320-37010

LY5#,61,YY52,61..CBR,DSL

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37010

LY5#,61

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69320-95408

LY5#,6#,YY5#,61

 1
69320-37010

LY5#,61,YY52,61..CBR,DSL

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-89103

LY5#,6#,YY5#,61

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-89103

LY5#,6#,YY5#,61

 2
Common parts
53382-20020
90149-80013
90151-60008
90159-60057
90159-60066
90159-80001
90179-06070
90480-10102
90541-06008
91521-60612
91521-60616
91521-61030
91521-61040
91655-60616
91655-60816
93260-56010
93260-56014
93260-56016
93260-56035
93381-16014
93385-16012
