LY50-MDBM (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T3..TS

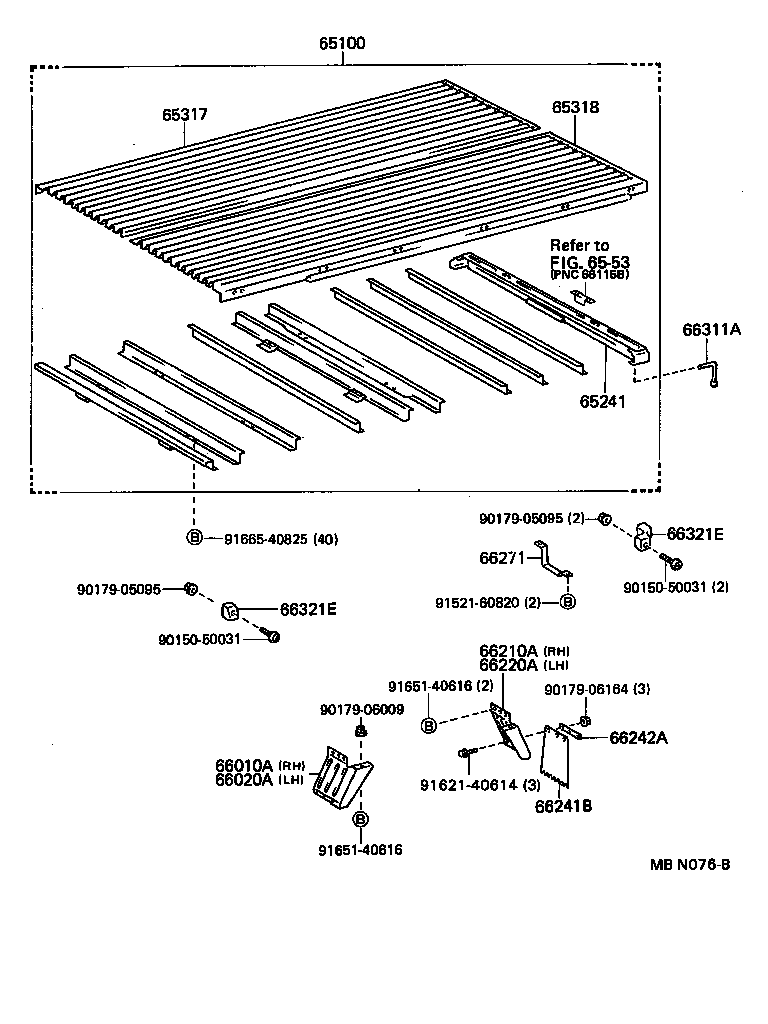

Click highlighted areas on diagram

diagram 65100 65241 65317 65318 6553 66010A 66020A 66210A 66220A 66241B 66242A 66271 66311A 66321E 66321E 9015050031 9015050031 9017905095 9017905095 9017906009 9017906164 9152160820 9162140614 9165140616 9165140616 9166540825
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95L17

LY50,YY51..T3..125..CBU

 1
65100-95L06

LY50,YY51..T3..CBU

 1
65100-25150

LY50..T3..CBU

 1
65241 - SILL, REAR CROSS
65240-95A08

LY50,61,YY5#,61..T3..TS..CBU

 1
65240-95A05

LY50,6#,YY51,61..T3..TS..CBU

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95041

LY50,YY51..T3..125..CBU

 1
65317-95045

LY50,YY5#..T3..125..CBU

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95041

LY5#,YY5#..(T2,T3)..TS..CBU

 1
65318-95039

LY5#,YY5#..(T2,T3)..TS..CBU

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-95017

LY50,6#,YY5#,61..T3..TS..CBU

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-95017

LY50,6#,YY5#,61..T3..TS..CBU

 1
66210A - FENDER ASSY, REAR NO.1 RH
66205-95011

LY50,6#,YY5#,61..T3..TS..CBU

 1
66220A - FENDER ASSY, REAR NO.1 LH
66206-95011

LY50,6#,YY5#,61..T3..TS..CBU

 1
66241B - BAFFLE, RUBBER
66241-95407

LY50,6#,YY5#,61..DYN..(T1,T3,TW)..TS..ST..CBU

 2
66242A - PLATE, BAFFLE RUBBER
66242-95012

LY50,6#,YY5#,61..(T1,T3,TW)..TS..ST..CBU

 2
66271 - STEP, REAR BODY
66271-95018

LY50,6#,YY5#,61..T3..TS..CBU

 1
66321E - BUMPER, GATE RUBBER
66321-95017

LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU

TAIL

 2
66331-95010

LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU

SIDE

 2
66321-25010

LY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU

TAIL

 2
66321E - BUMPER, GATE RUBBER
66321-95017

LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU

TAIL

 2
66331-95010

LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU

SIDE

 2
66321-25010

LY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU

TAIL

 2
Common parts
90150-50031
90179-05095
90179-06009
90179-06164
91521-60820
91621-40614
91651-40616
91665-40825
Linked diagrams
6553

(9008- )T3..TS

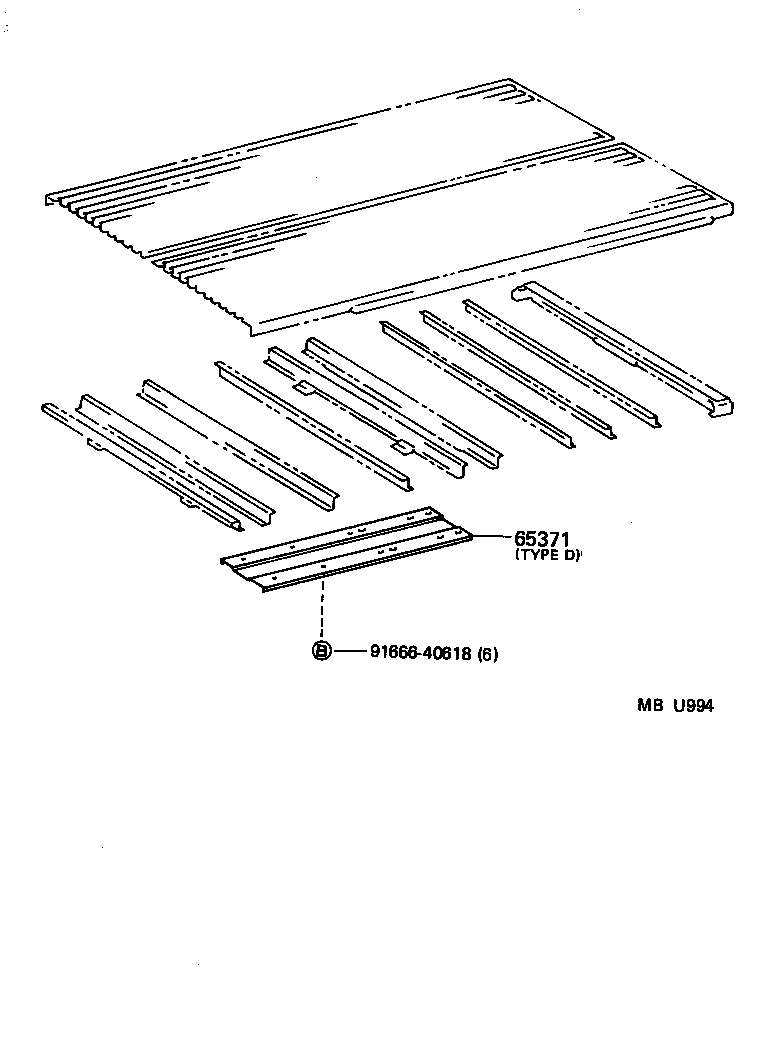

Click highlighted areas on diagram

diagram 65371 9166640618
Part # Description Qty Price
Common parts
91666-40618
